Sample Deployments
The following are some sample deployments using a PDIF/FA.
Mobile Station using Mobile IP with PDIF/FA
Overview
As shown in the figure below, the PDIF/FA supports the Fixed Mobile Convergence (FMC) application, which employs
a Dual Mode Handset (DMH) to provide a VoIP solution over an IP-based WiFi broadband network. The DMH can
access the traditional CDMA voice and data networks over the Radio Access Network (RAN). Over the RAN, the DMH
implements circuit-switched voice and standard mobile IP (MIP) data over EVDO Rev. A, using the services of a PDSN
and an HA.

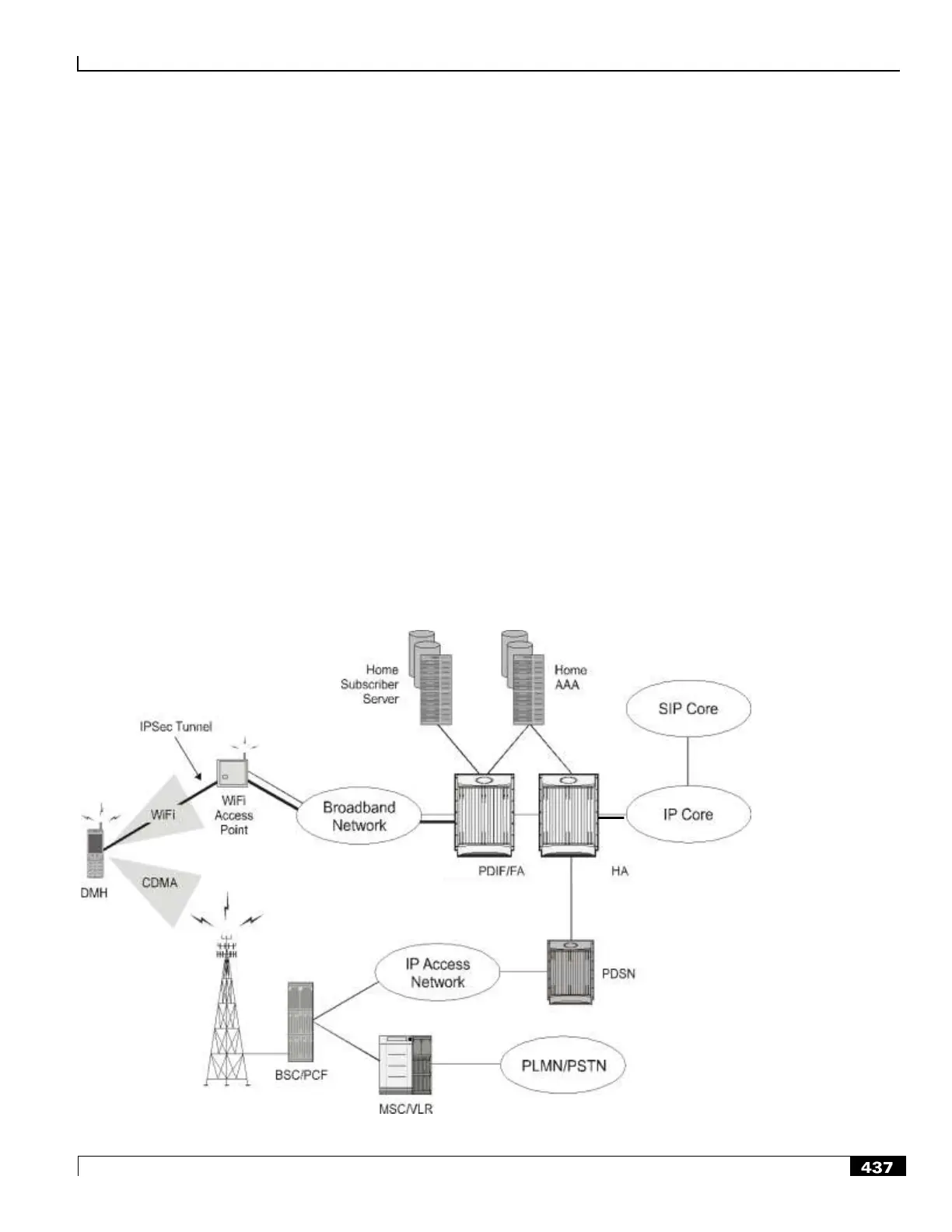

Figure 118. PDIF/FA Mobile IP Implementation
