Cisco ASR 5000 Series User Manual

Technical Specifications
▀ Interface Specifications
▄ Cisco ASR 5000 Series Product Overview
OL-22938-02

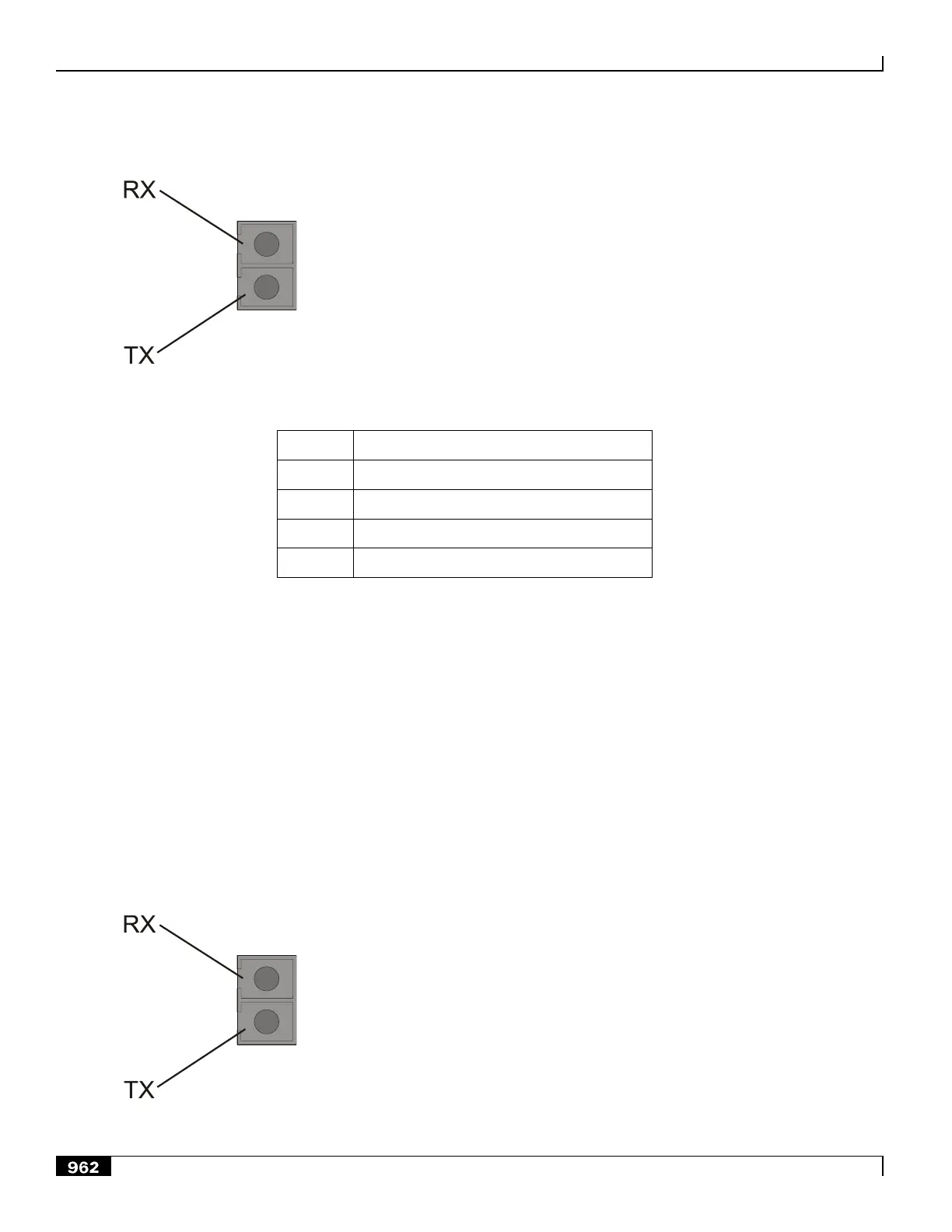

Figure 232. 10 Gigabit Ethernet 10GBase LR/XGLC Line Card Fiber Connector
Table 117. XGLC 10GBase LR Fiber Interface Transmit and Receive Levels
Signal
Level
Max TX:
0.5 dBm
Min TX:
-8.2 dBm
Max RX:
0.5 dBm (saturation average power)
Min RX:
-12.6 (max) dBm (sensitivity average power)
Fiber ATM/POS OC-3 (OLC and OLC2) Multi-Mode Interface
Fiber ATM/POS OC-3 SM IR-1 Interface
The fiber-optic SFP interface on OLC and OLC2 Optical ATM Line Cards with the SM IR-1 interface has one pair of
host connectors as shown in The following figure.
Figure 233. Optical ATM Line Card SM IR-1 SFP Pin-out
