ASN Gateway Overview

▀ ASN Call Procedure Flows

▄ Cisco ASR 5000 Series Product Overview

OL-22938-02

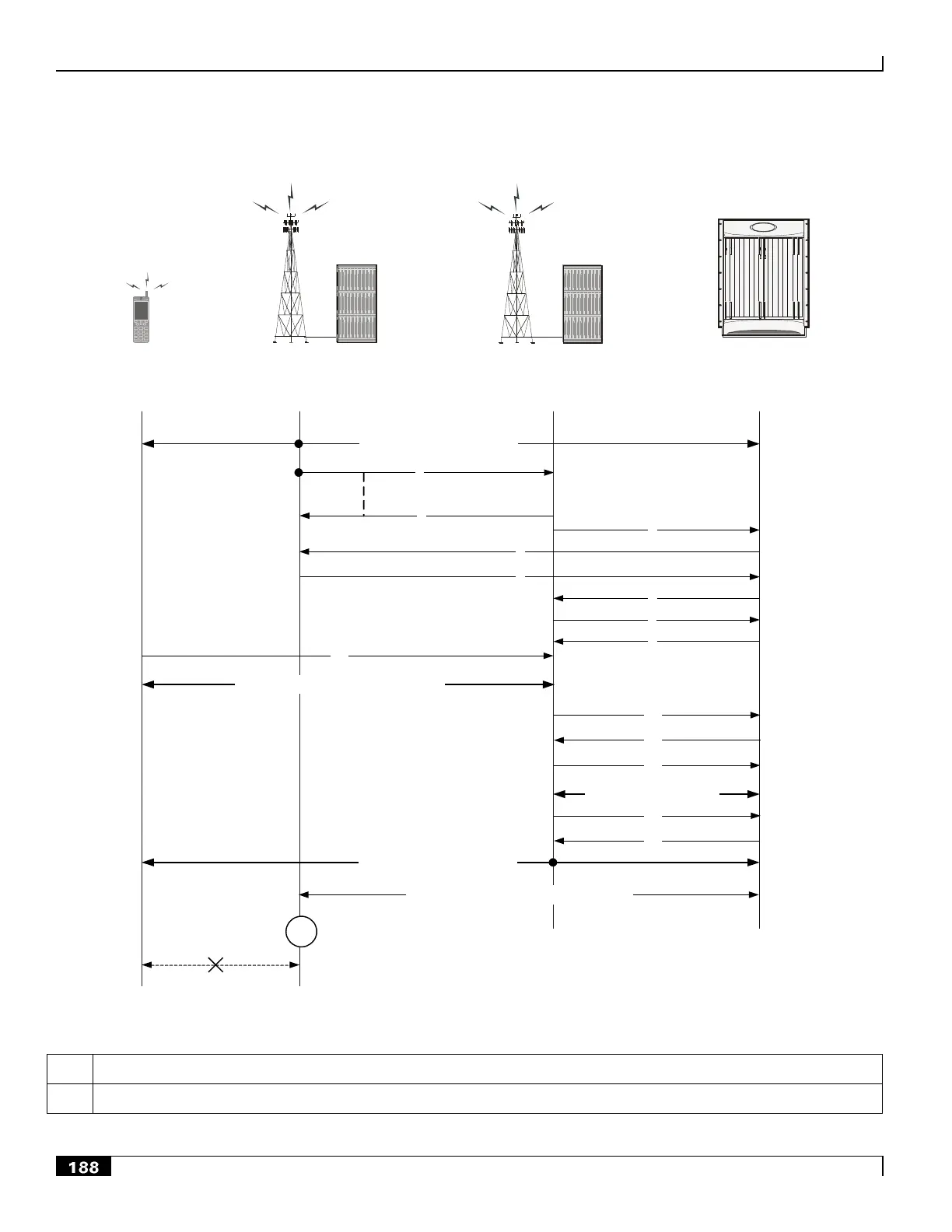

Figure 52. BS initiated Uncontrolled Intra-ASN Gateway Handover Action Phase

Serving

ASN BS

Anchor ASN-GW/

Authenticator

Data Path Established

R6 DP Established

16 (DP De-registration Process)

Target

ASN BS

Data Path Established

Network Re-entry Completion

R8_HO_Req_Timer

HO-Conf

HO-Ack

MAC_Context-Req

MAC_Context-Rep

Auth_Context-Req

Auth_Context-Rep

RNG-Req

DP_Reg-Req

DP_Reg-Rsp

DP_Reg-Ack

Key_Count-Update

Key_Count-Ack

Table 37. BS initiated Uncontrolled Intra-ASN Gateway Handover Action Phase Description

Step

Description

Handover preparation phase is completed and data path is established.
