CDMA2000 Wireless Data Services

▀ CDMA2000 Data Network Deployment Configurations

▄ Cisco ASR 5000 Series Product Overview

OL-22938-02

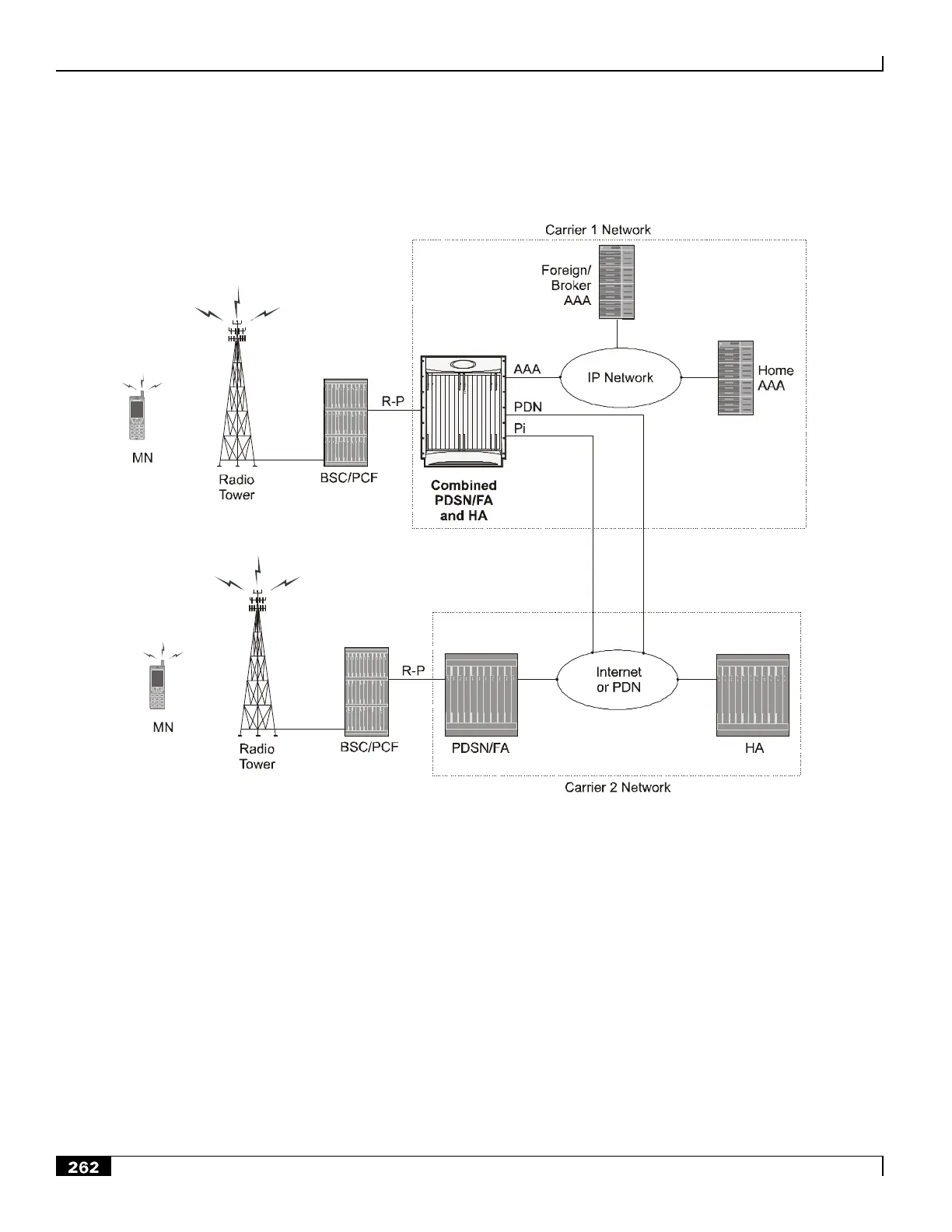

Figure 72. Co-located PDSN/FA and HA Configuration Example

It should be noted that all interfaces defined within the 3GPP2 standards for 1x deployments exist in this configuration

as they are described in the two previous sections. This configuration can support communications to external, or

standalone, PDSNs/FAs and/or HAs using all prescribed standards.
