Content Filtering Support Overview
Category-based Content Filtering Support ▀
Cisco ASR 5000 Series Product Overview ▄
OL-22938-02

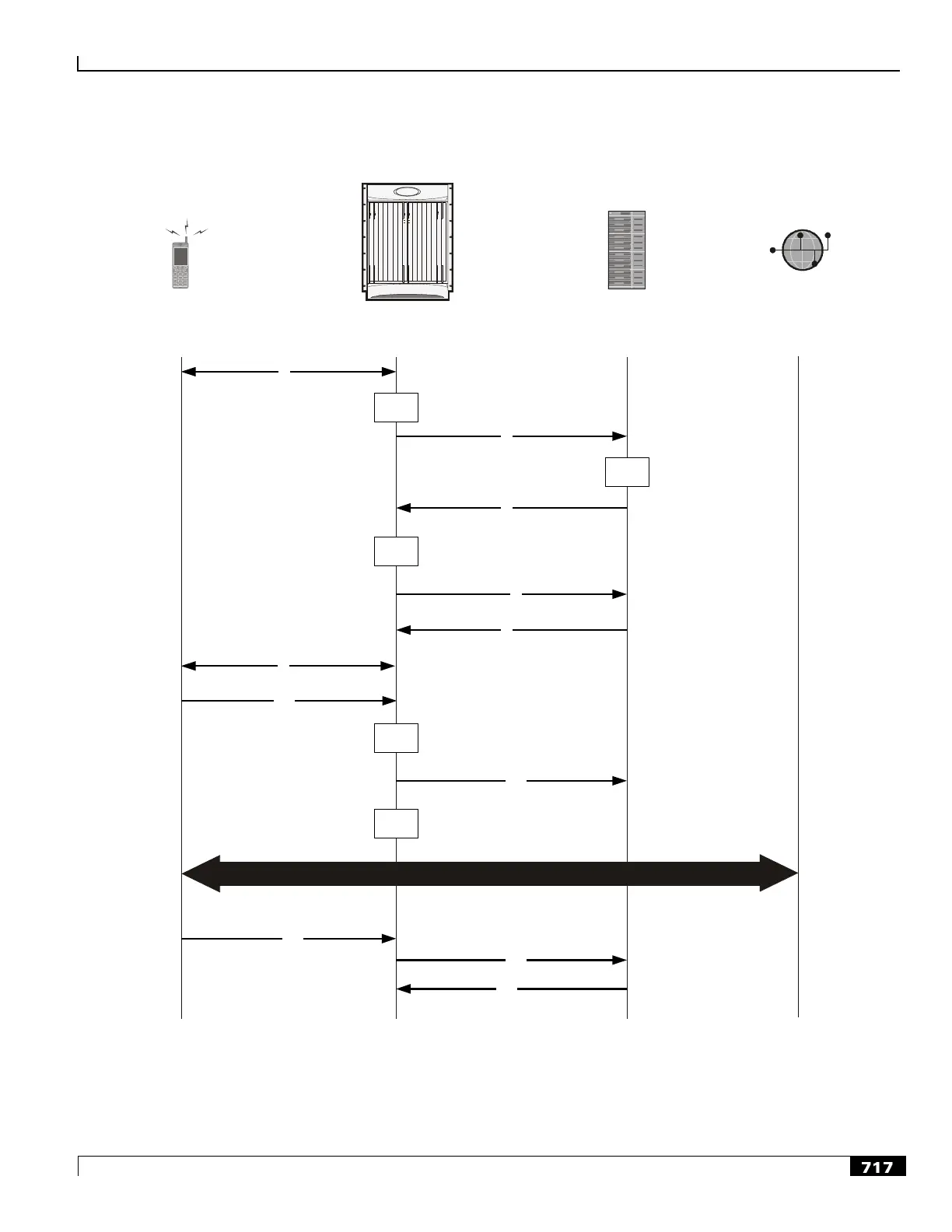

Figure 175. Content Filtering Call Flow
Policy
Manager/AAA
MN/SS
1
10
5
12
9
DATA
CSN/PDN/
Internet
System with
ECS/CF-System
2
3
4
6
7
8
11
13
14
15
16
Step 1 MS requests for registration to the system.
Step 2 System processes MS-related information with Content Filtering subsystem.
