Environmental Specifications

▀ Environmental Information

▄ Cisco ASR 5000 Series Product Overview

OL-22938-02

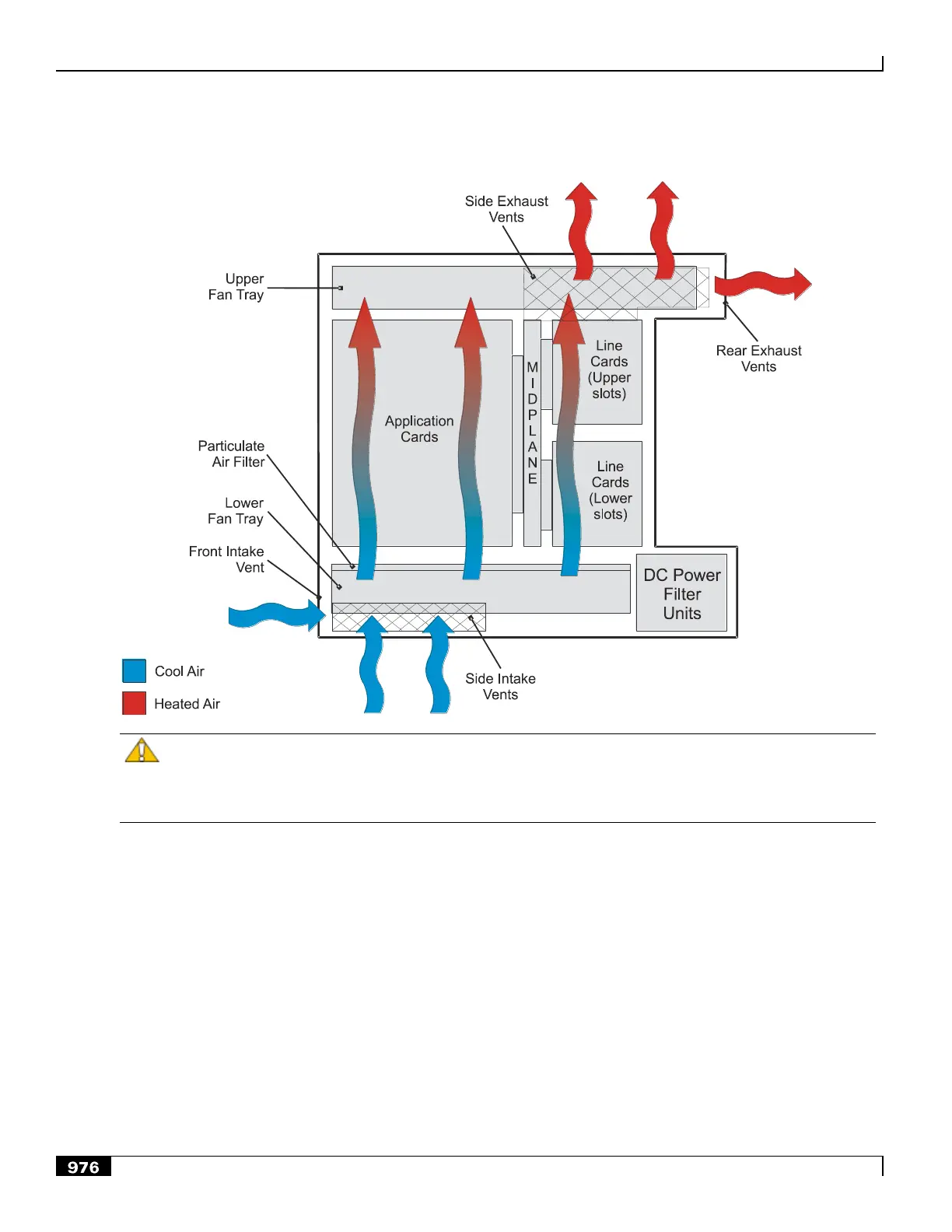

Figure 237. System Airflow and Ventilation

Caution: When planning chassis installation, ensure that equipment rack or cabinet hardware does not hinder

air flow at any of the intake or exhaust vents. Additionally, ensure that the rack/cabinet hardware, as well as the ambient

environment, allow the system to function within the limits specified in the Operating Temperature and Humidity

section of this chapter.
