Attach the Cables to the Phone
Attach the phone cables to your phone before you mount the phone to the wall.
Procedure
Step 1 Attach the Ethernet cable to the 10/100/1000 SW network port and to the wall jack.
Step 2 (Optional) Attach the cable to the 10/100/1000 computer (PC access) port.
Step 3 (Optional) Plug the power cord into the phone and seat the cord in the clips next to the PC port.
Step 4 (Optional) If the cables terminate inside the wall bracket, connect the cables to the jacks.
Attach the Phone to the Wall Bracket
After you have installed your wall bracket on the wall, you attach your phone - with the phone bracket to it -
to the wall bracket. Ensure that the phone fits securely into the wall bracket. Because each phone is slightly
different, refer to the appropriate example to guide you.
Procedure

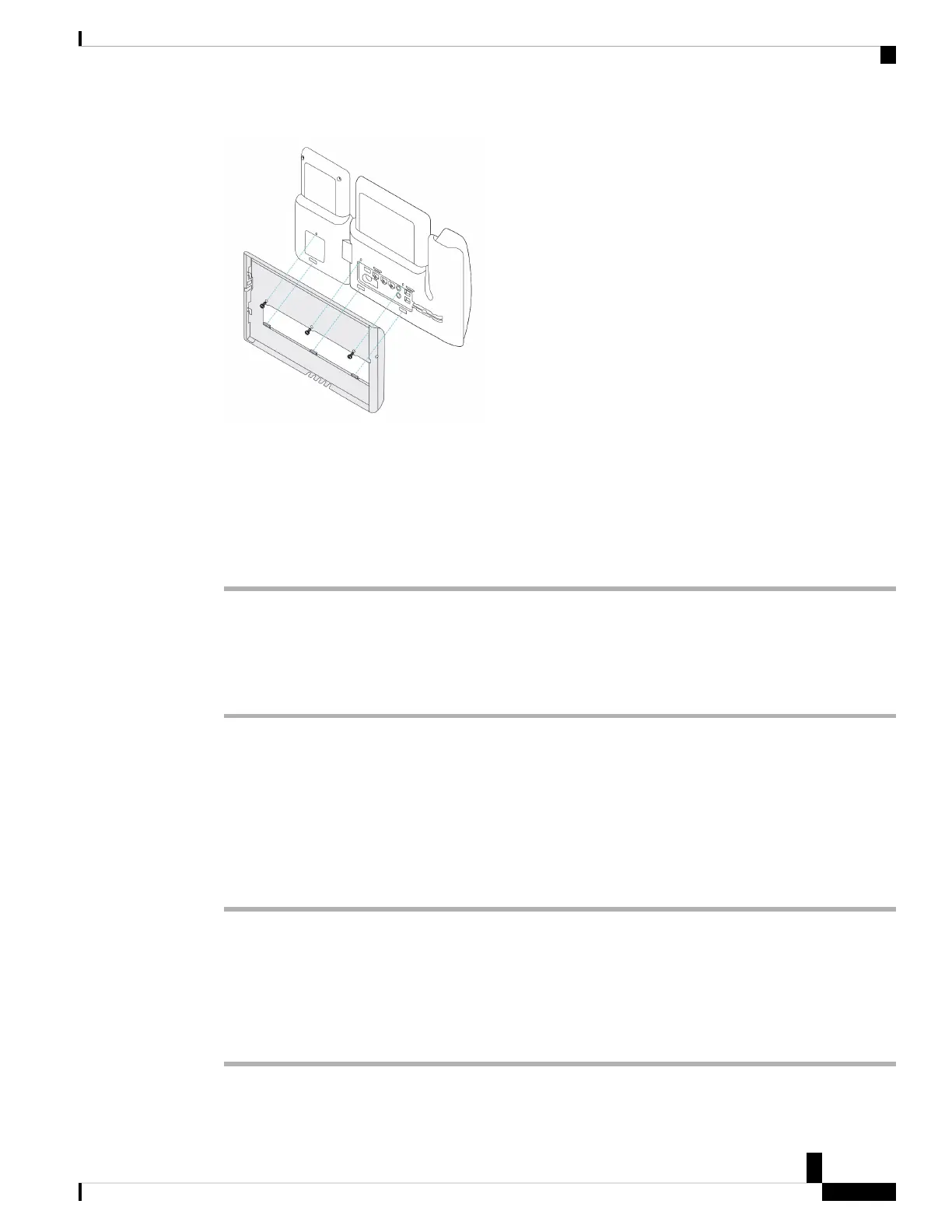

Step 1 Insert the tabs on the top of the wall bracket into the slots on the phone bracket.
Cables that terminate outside of the brackets can be positioned in the openings on the bracket bottom, with
one cable per opening.
Step 2 Press the phone firmly into the wall bracket and slide the phone down. The tabs in the bracket click into
position.
