Step 3 (Optional) Adjust the footstand on the key expansion module and ensure that the phone and key expansion
module are stable.
Step 4 (Optional) Press Self-view to check the camera angle.
Adjust the Handset Rest
If your phone is wall-mounted or if the handset slips out of the cradle too easily, you may need to adjust the
handset rest to ensure that the receiver does not slip out of the cradle.

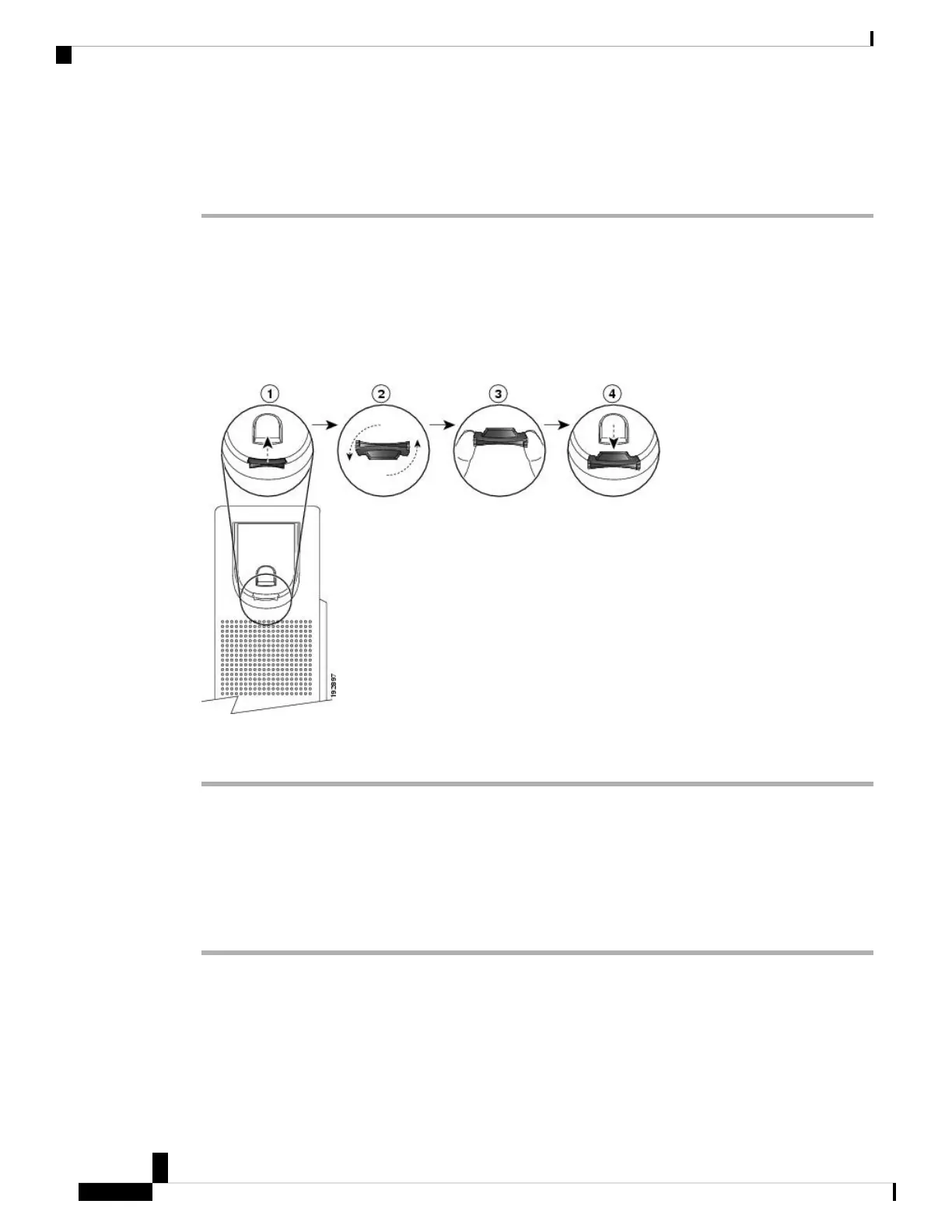

Figure 4: Adjust the Handset Rest
Procedure
Step 1 Remove the handset from the cradle and pull the plastic tab from the handset rest.
Step 2 Rotate the tab 180 degrees.
Step 3 Hold the tab between two fingers, with the corner notches facing you.
Step 4 Line up the tab with the slot in the cradle and press the tab evenly into the slot. An extension protrudes from
the top of the rotated tab.
Step 5 Return the handset to the handset rest.
Secure the Phone with a Cable Lock (8800 Series)
You can secure your Cisco IP Phone 8800 Series with a laptop cable lock up to 20 mm wide.
