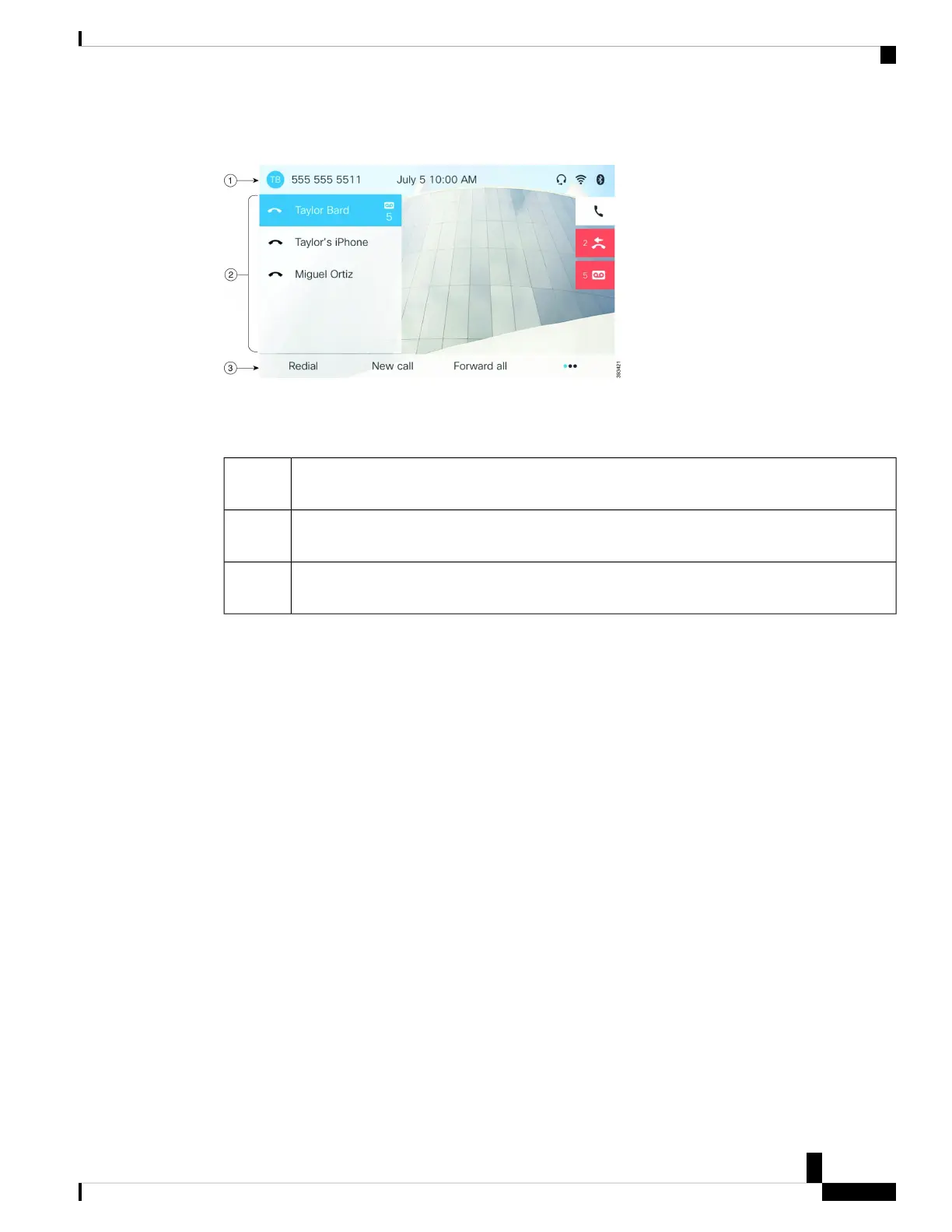

Figure 13: Cisco IP Phone 8800 Screen
The following table describes the Cisco IP Phone screen components.
Table 7: Cisco IP Phone Screen Information
At the top of the screen is the header row. The header row displays the phone number, current
date and time, as well a number of icons. The icons display when features are active.
1
The middle of the phone screen displays the information associated with the line and feature
buttons on the phone.
2
The bottom row of the screen contains the softkey labels. Each label indicates the action for the
softkey button below the screen.
3
Cisco IP Phone 7800 and 8800 Series, Cisco IP Conference Phone 7832, and Cisco ATA 190-SC User Guide for Webex Calling (formerly Spark
Call)
109
Phone Navigation, Softkeys, Buttons, and Screen
Phone Screen Features

Cisco IP Phone 7800 Series Specifications

General

Protocols	SIP, SCCP
Bluetooth	No
Wi-Fi	No
Connectivity	Ethernet
PoE	IEEE 802.3af/at
Speakerphone	Full-duplex
Headset Support	Yes, via headset port
Ethernet Ports	Dual 10/100/1000 Ethernet ports
Codec Support	G.711, G.722, G.729, iLBC
Security	TLS, SRTP, 802.1X
USB Port	Yes
Mounting	Desk or wall
Audio	Wideband audio (G.722), Handset and speakerphone
