RSSI of -67 dBm for all data rates should be the goal for 11b/g/n and 11a/n
SNR should be 25 dB for the data rate used by client to connect to the AP
Packet error rate (PER) should be configured for a value of one percent or less
Channel with the lowest utilization (CU) must be used
Check the CU when no traffic is running
Radio resource manager (RRM) can be used to implement the recommended RSSI, PER, SNR,
CU, cell coverage, and coverage hole settings on the 802.11b/g/n radio (RRM is not available on
802.11a/n radio).

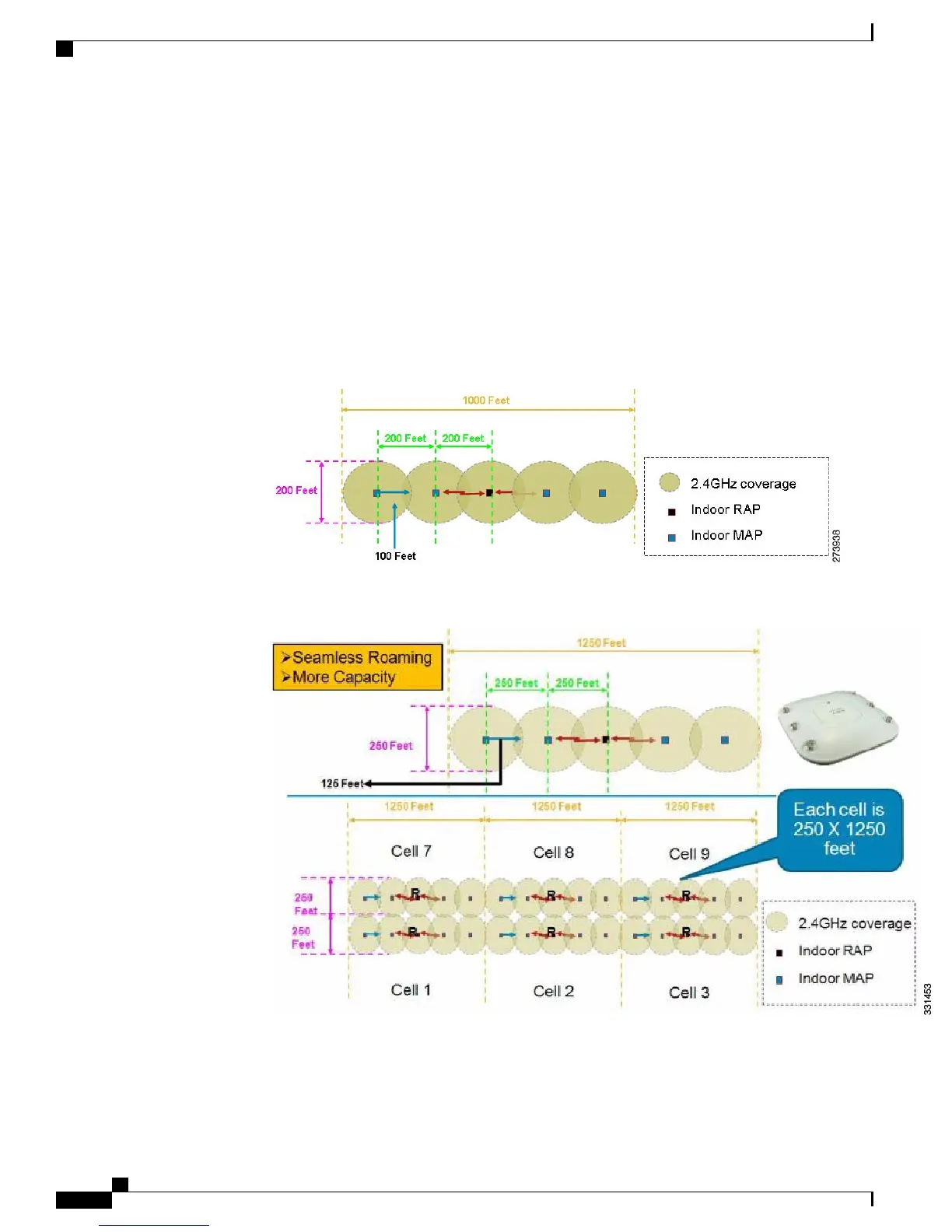

Figure 38: Cell Radius of 100 Feet (30.4 meters) and Access Point Placement for Voice Mesh Networks
Figure 39: Cell Radius of 125 Feet (38 meters) and Access Point Placement for Indoor 11n Mesh Networks
Cisco Mesh Access Points, Design and Deployment Guide, Release 7.3
88 OL-27593-01
Site Preparation and Planning
Cell Planning and Distance
