connection to a MAP. The video of all these cameras is then streamed across the wireless backhaul to a central
command station on a wired network.

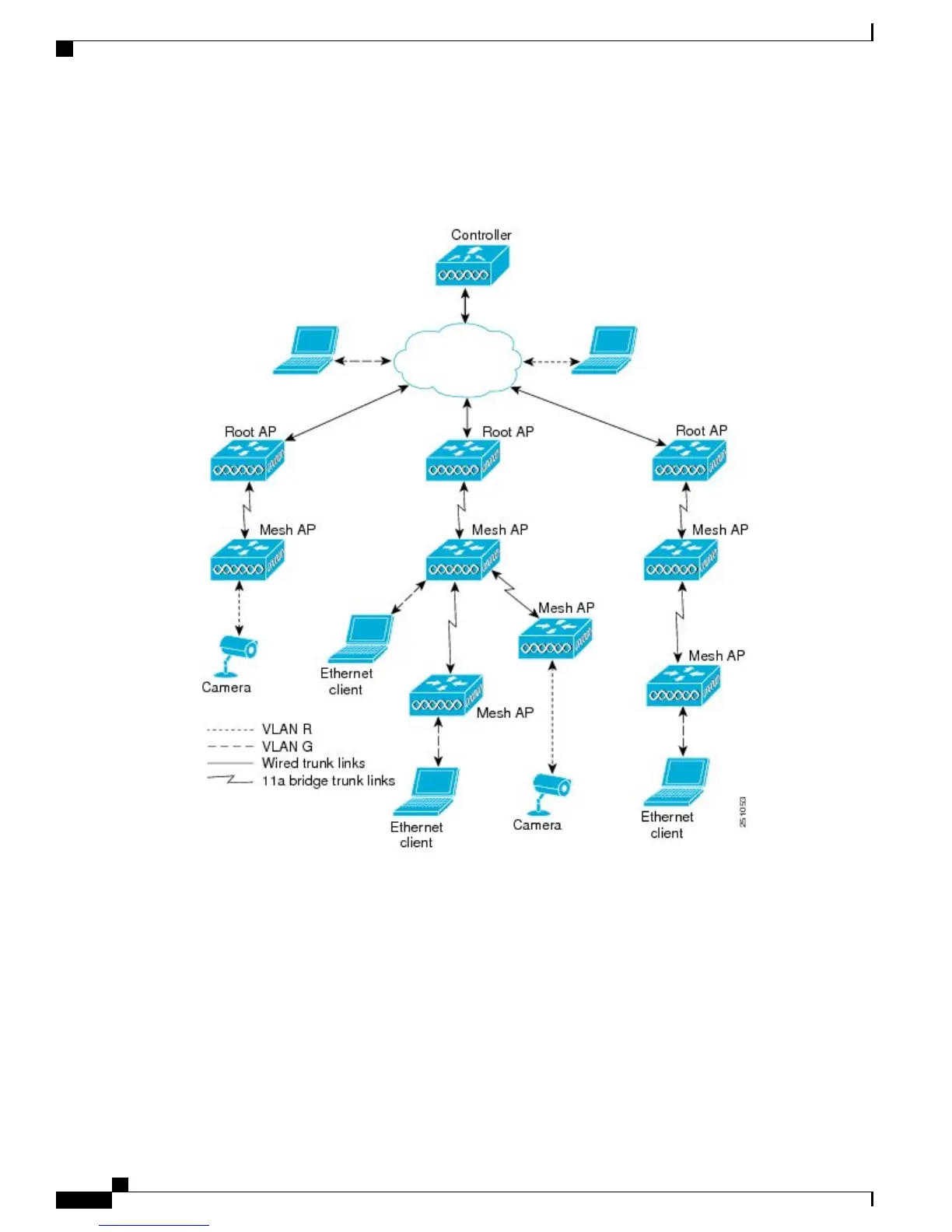

Figure 63: Ethernet VLAN Tagging
Ethernet Port Notes
Ethernet VLAN tagging allows Ethernet ports to be configured as normal, access, or trunk in both indoor and
outdoor implementations:
