The 1552 models C and I access points are equipped with three new integrated dual-band antennas, with 2
dBi gain at 2.4 GHz and 4 dBi gain at 5 GHz. The antenna works in cable strand mount and low cost, low
profile applications.

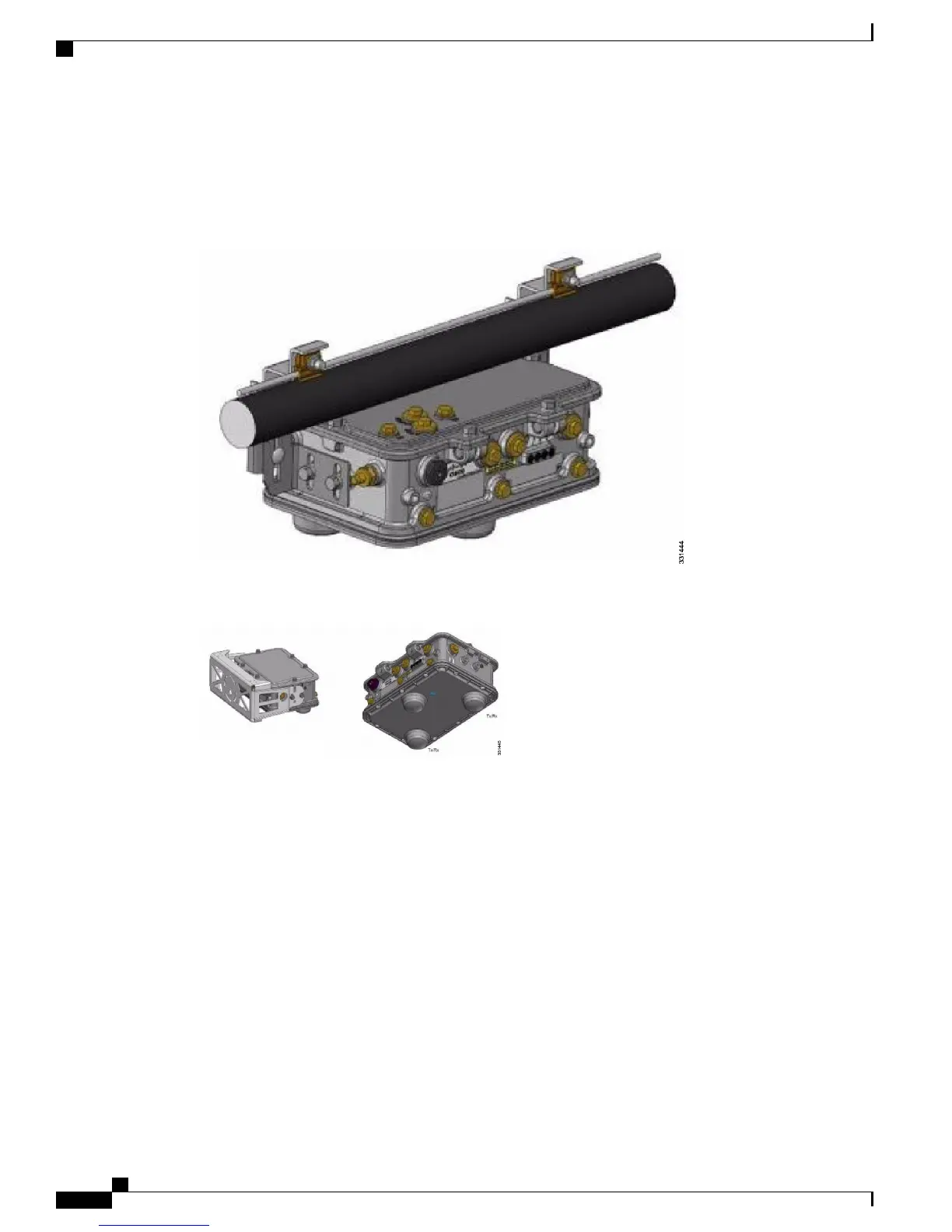

Figure 13: 1552C Cable Mount
Figure 14: 1552I Pole/Wall Mount
The 1552 E and H access points are equipped with three N-type radio frequency (RF) connectors (antenna
ports 4, 5, and 6) on the bottom of the unit for external antennas to support multiple input multiple output
(MIMO) operation as shown in the figure below. When using the optional Cisco Aironet AIR-ANT2547V-N
Cisco Mesh Access Points, Design and Deployment Guide, Release 7.3
32 OL-27593-01
Mesh Network Components
Cisco Outdoor Mesh Access Points
