Placement for Nonvoice Mesh Networks, on page 72 and Figure 32: Path Loss Exponent 2.5 to 3.0,
on page 73.)

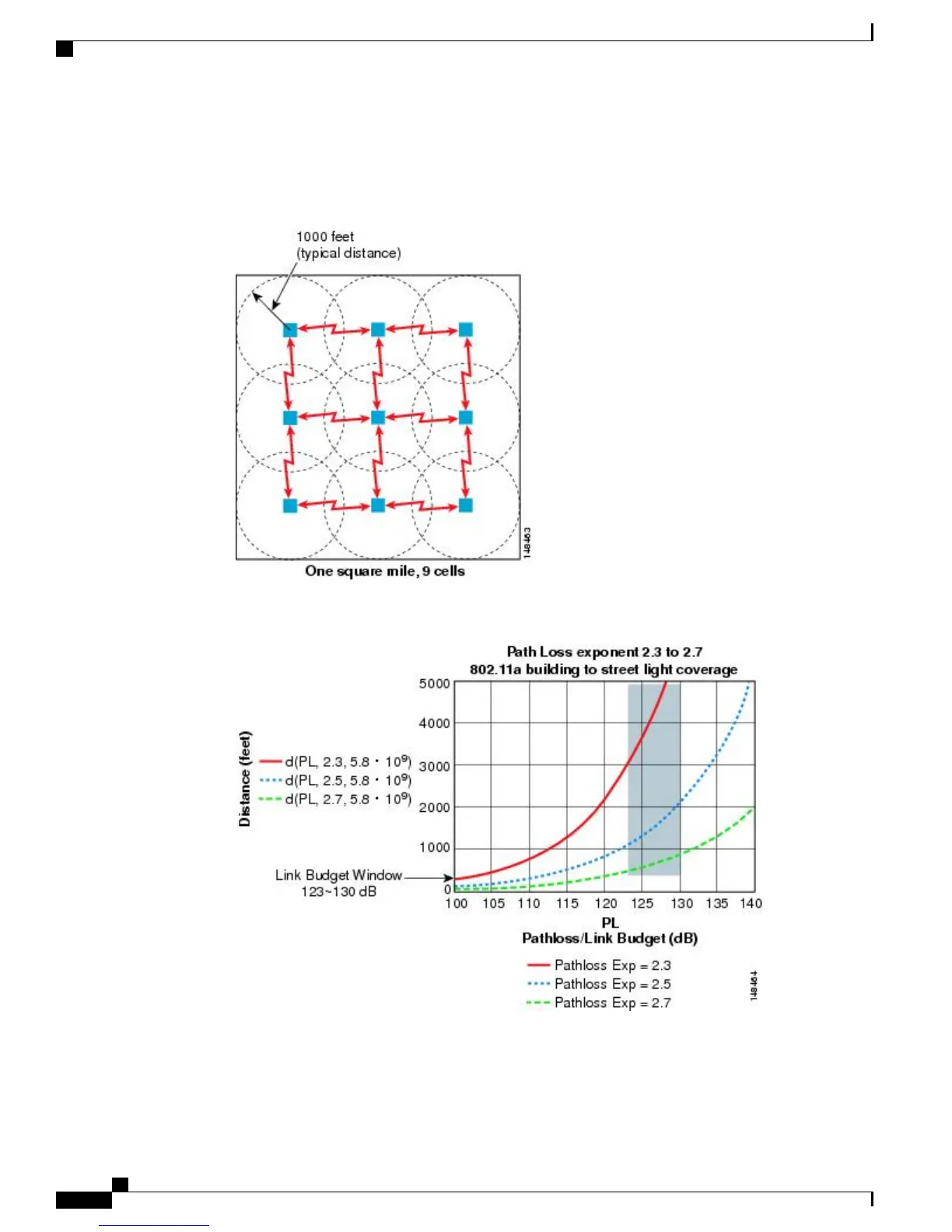

Figure 29: Cell Radius of 1000 Feet and Access Point Placement for Nonvoice Mesh Networks
Figure 30: Path Loss Exponent 2.3 to 2.7
Figure 31: Cell Radius of 600 Feet and Access Point Placement for Nonvoice Mesh Networks
