Cisco RVS4000 - Gigabit Security Router Administration Guide

Configuring IPSec with a Windows 2000 or XP Computer
How to Establish a Secure IPSec Tunnel
Cisco RVS4000 Security Router with VPN Administrator Guide 146
C
IP Filter List Tab

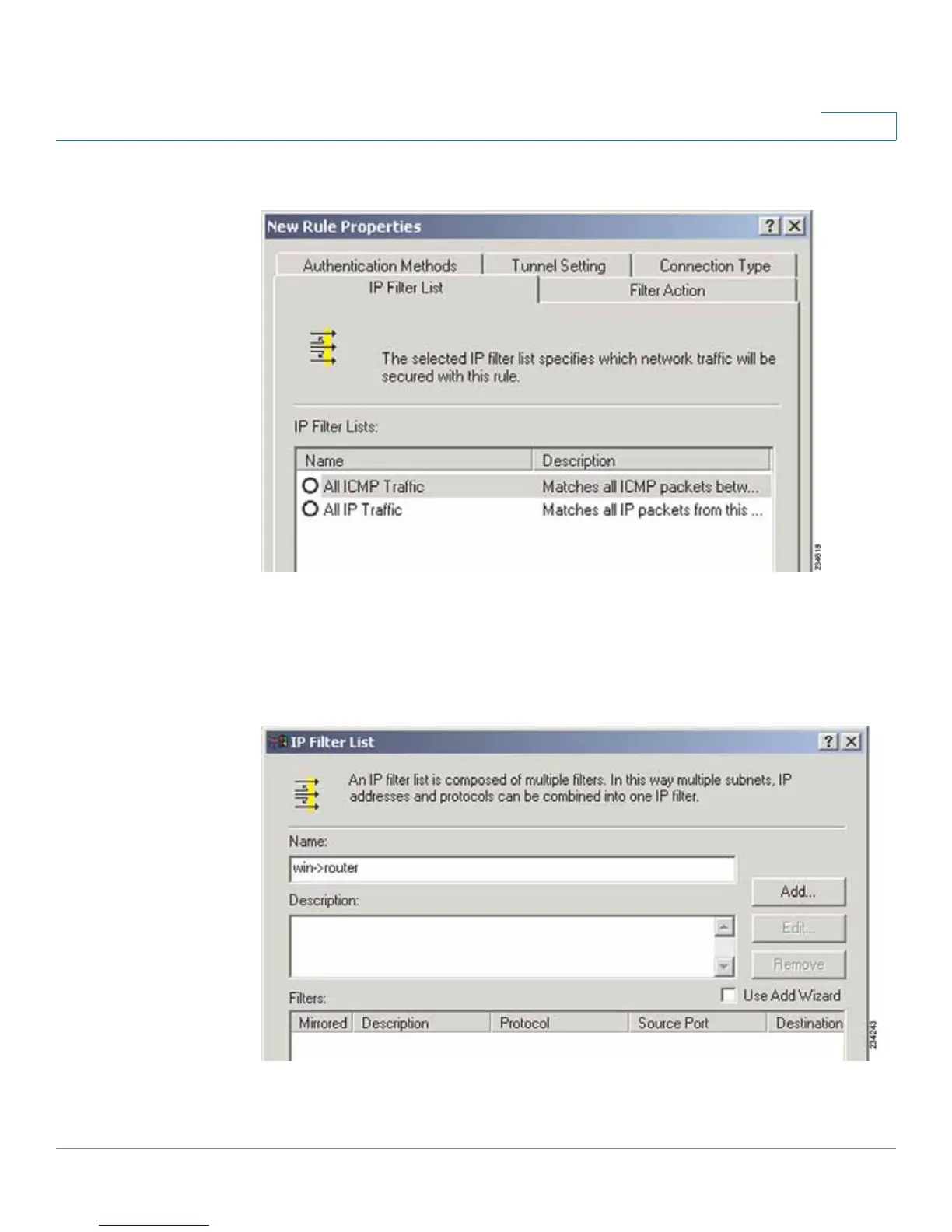

c. The IP Filter List window should appear. Enter an appropriate name, such as
win-> Router, for the filter list, and uncheck the Use Add Wizard box. Then, click
Add.
IP Filter List

Cisco RVS4000 - Gigabit Security Router Specifications

General

WAN Ports	1 x 10/100/1000 Mbps
LAN Ports	4 x 10/100/1000 Mbps
VPN Support	IPSec, PPTP
Wireless	No
QoS	Yes
Power Supply	12V DC, 1.5A
Humidity	10% to 85% non-condensing
Firewall	SPI Firewall
VPN Throughput	30 Mbps
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-4°F to 158°F (-20°C to 70°C)
Management	Web-based
