User Guide | FreeSpeak II™ Base station version
Page 116
9 Operating the transceiver/antenna
This chapter describes how to use the FreeSpeak II transceiver/antenna. It
contains the following sections:
 Transceiver/antenna
 Transceiver/antenna splitter (PD2203)
9.1 Transceiver/antenna
The FS II transceiver/antennas form the transmission link between the FS II
beltpacks and the FS II Base station. It has internal omnidirectional (all
directions/circular coverage) antennas. Multiple units are used to support the
beltpacks and to create larger, customized coverage areas. Each
transceiver/antenna is connected to the Base station, either directly or via a
PD2203 splitter.
The unit has two methods of fixing:
 Three screw points for mounting on a flat surface.
 Two microphone stand connectors, 3/8 in and 5/8 in.

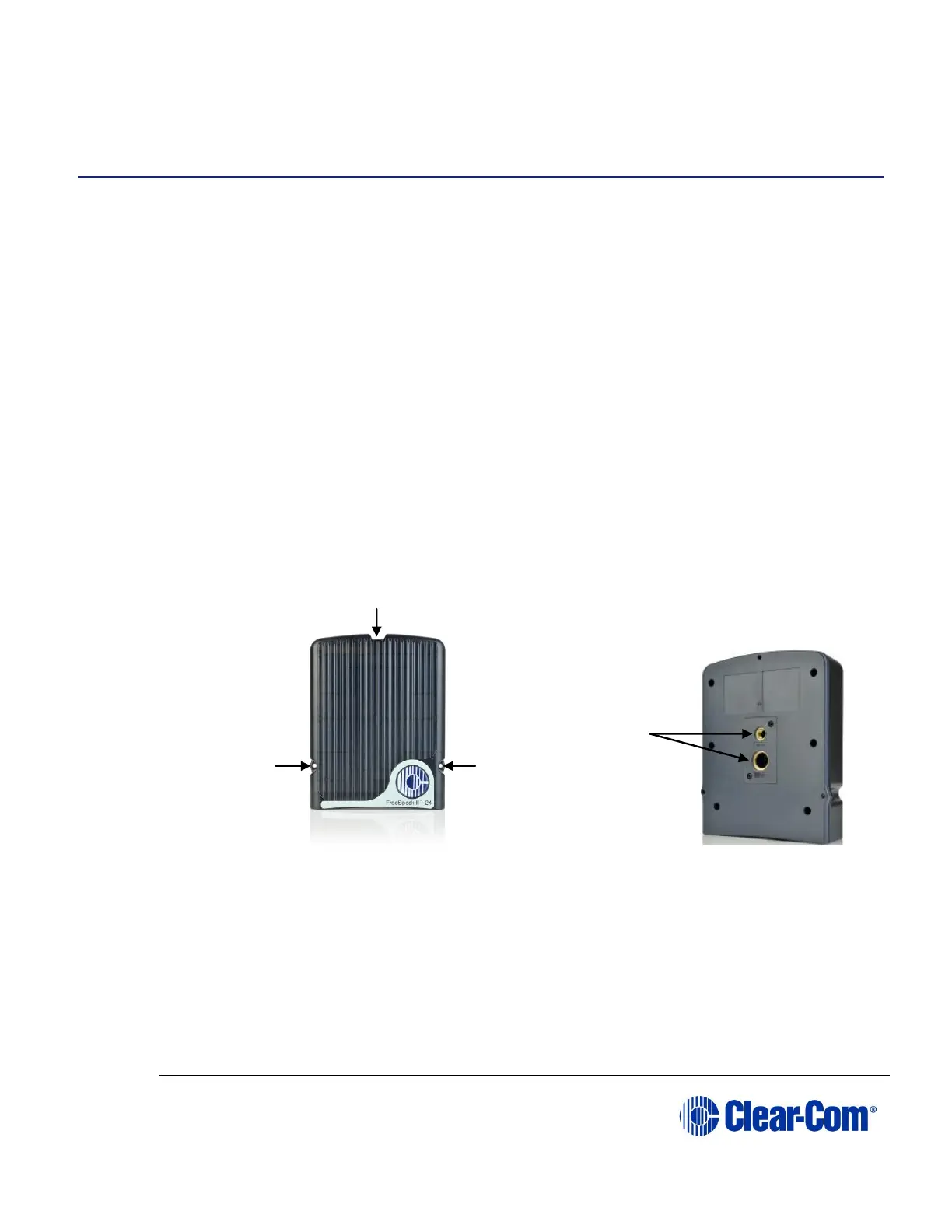

Figure 9-1 FS II Transceiver/Antenna
9.1.1 IP rating (International Protection Marking)
The transceiver/antenna has an IP rating of 65 so it can be mounted outside and
will be resistant to weather conditions.
Mounting holes
Mounting holes
Mounting holes
Microphone stand
connectors (3/8
and 5/8 inch)
