User Guide | FreeSpeak II™ Base station version
are occupied by beltpacks. This information may be useful during a site survey, or
when troubleshooting coverage areas or antenna connections.

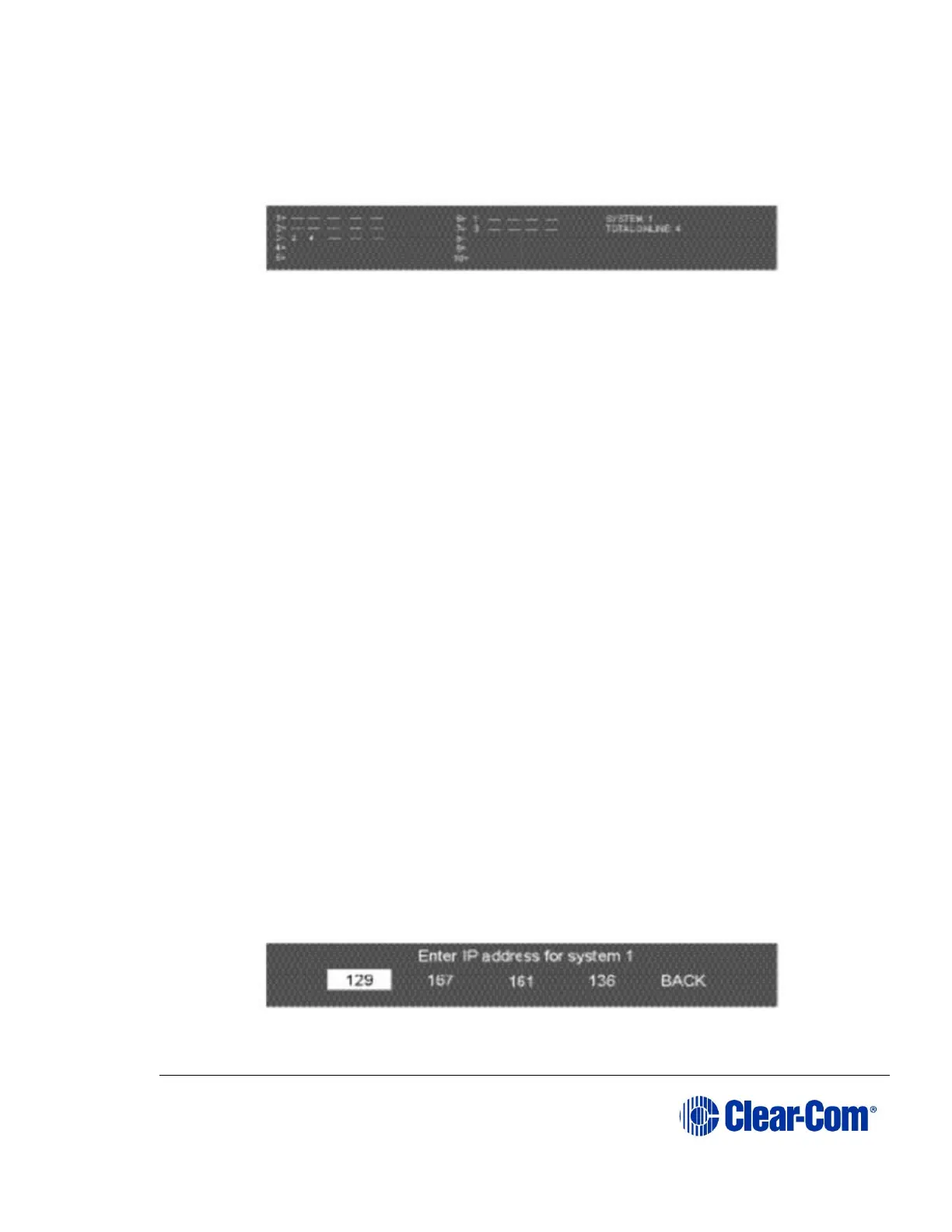

A typical display is shown below:
Figure 6-54 Antennas menu
The numbers 1 through 10 represent the maximum number of antennas that can
be connected to the Base station. Numbers 1 through 5 can be positions on a
splitter connected to transceiver port 1, while 6 through 10 can be positions on a
splitter connected to transceiver port 2. An antenna connected directly to
transceiver port 2 would appear at position 6.
“__” indicates an empty slot on an active antenna that is connected to the Base
station. A number in place of a “__” indicates that this slot is occupied by the
indicated beltpack.
Blank spaces next to an antenna number indicate that no antenna has been
detected in this position.
So, for example, the above display would indicate that five antennas are
connected to the Base station in positions 1, 2, 3, 6, and 7. There are no active
antennas in positions 4, 5, 8, 9, and 10.
There are 4 beltpacks currently connected. Beltpacks 2 and 4 occupy the first 2
slots of antenna 3; beltpack 1 occupies the first slot of antenna 6; and beltpack 3
occupies the first slot of antenna 7.
The display updates every 4 seconds to reflect changes in antenna status and
beltpack connections.
Rotate or push in the setup/enter encoder to exit this menu.
When you upgrade the Antenna software using the Configuration Editor, a screen
appears showing the status of the upgrade for each connected antenna.
6.20 Setting the IP address
When IP is selected a screen appears allowing the IP address of the Base station
to be set.
Figure 6-55 IP address menu
