User Guide | FreeSpeak II™ Base station version
11) Rotate the setup/enter encoder clockwise or counter clockwise to increase
or decrease the nulling level in increments of 1 between 0 and 127.
12) When the desired audio level appears on the screen, press and release the
setup/enter encoder to select it,
13) The changes are saved and applied automatically five seconds after the
last time the setup/enter encoder was pressed or turned. The front-panel
display flashes to indicate that the changes are being saved and applied.
14) Select the HiNULL item to display the output level setup menu.

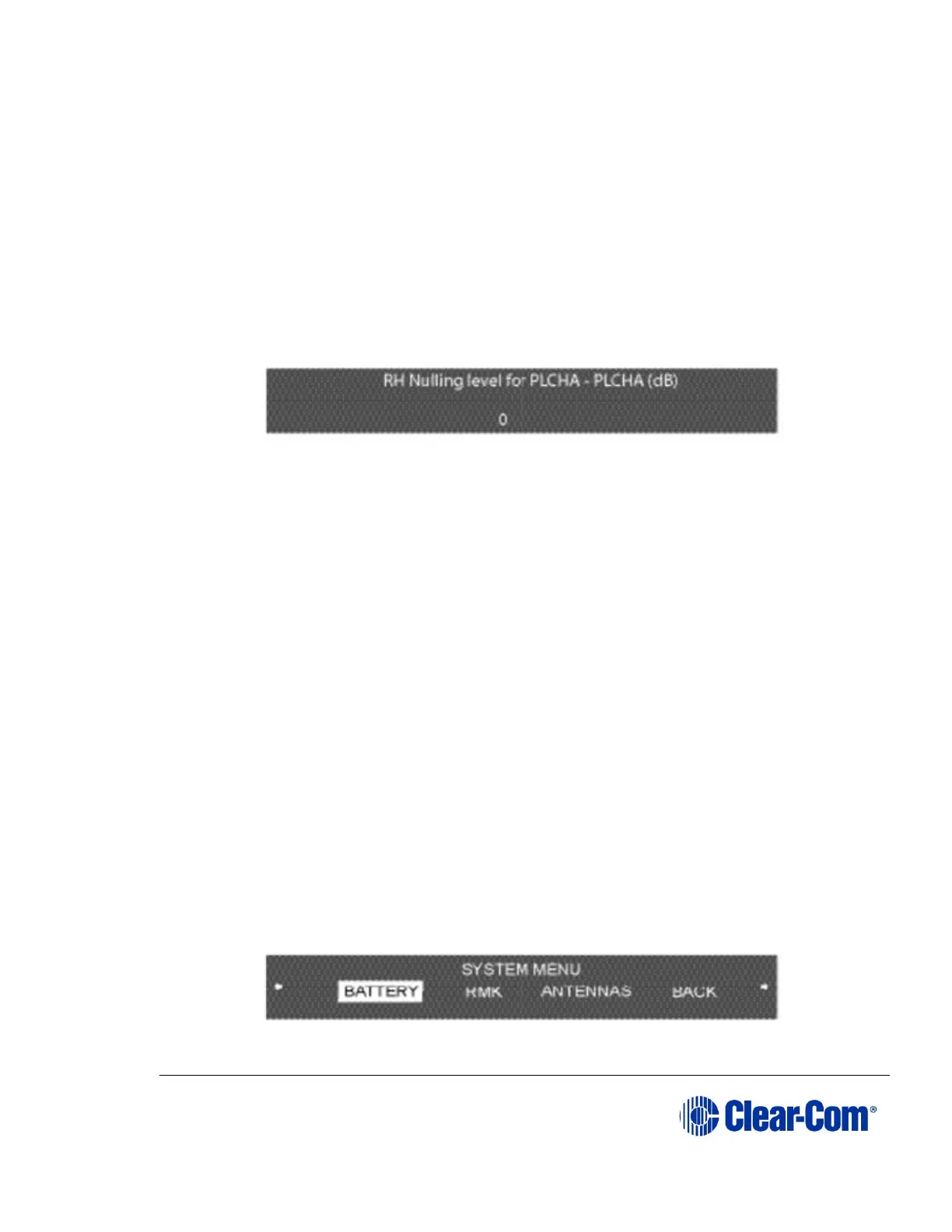

Figure 6-48 Partyline HiNULL level
15) Rotate the setup/enter encoder clockwise or counter clockwise to increase
or decrease the nulling level in increments of 1 between 0 and 127.
16) When the desired audio level appears on the screen, press and release the
setup/enter encoder to select it.
17) The changes are saved and applied automatically five seconds after the
last time the setup/enter encoder was pressed or turned. The front-panel
display flashes to indicate that the changes are being saved and applied.
6.16 Base station System Menu
The Base station System menu offers several system-wide capabilities, including
giving information on firmware, system ID, IP address, and active antenna status,
in addition to locking the front-panel enable buttons, remote microphone kill, and
restoring the most recent downloaded configuration.
The left and right arrows at the edges of the display allow scrolling backwards and
forwards between screens on the system menu.
From the MAIN menu, select SYSTEM. The SYSTEM menu appears as shown in
Figure 6-49 System menu 1.
Figure 6-49 System menu 1
