7.2.5 Beltpack bottom connectors

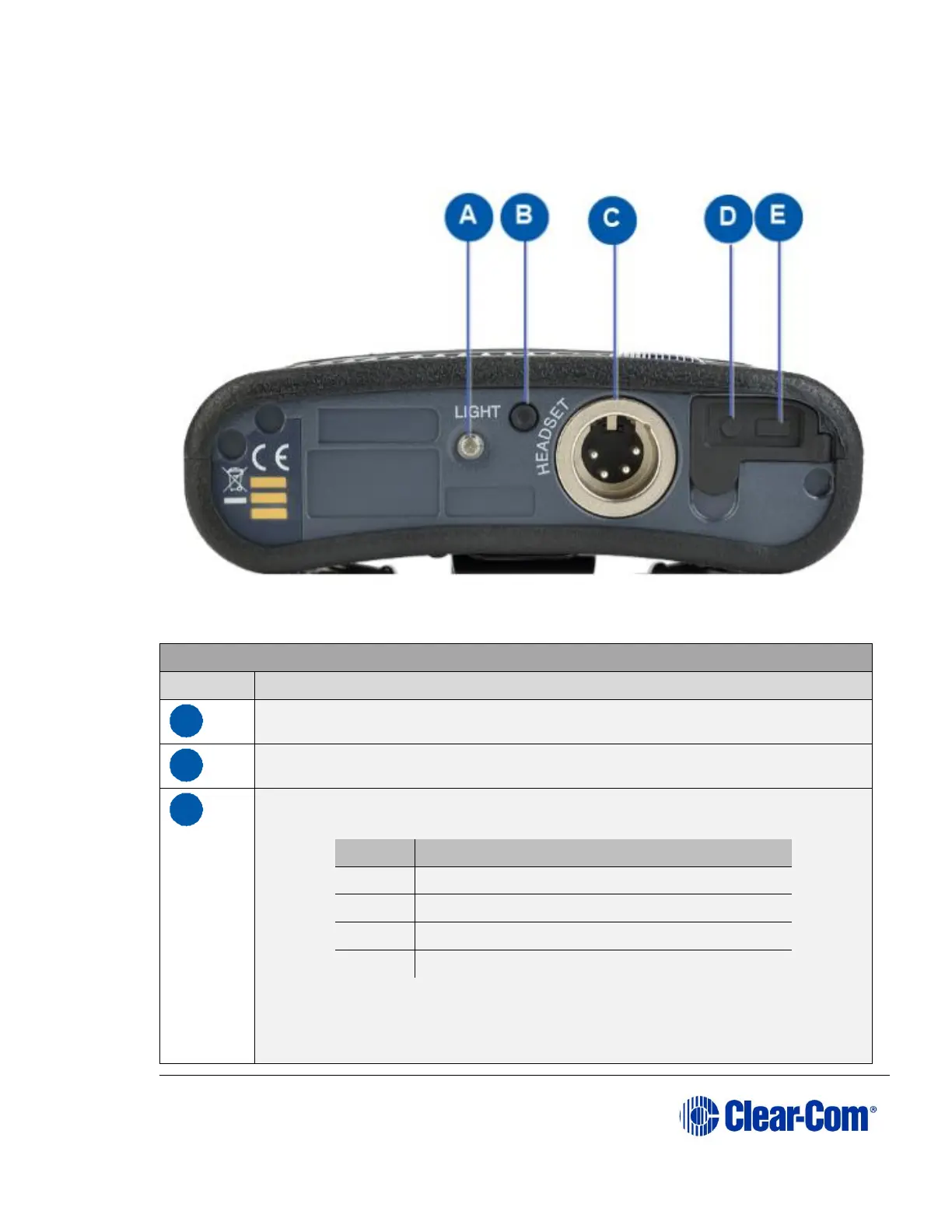

Figure 7-6 Beltpack bottom connectors
Key to beltpack bottom connectors
Feature
Description
A
LED torch
B
LED torch control
C
Headset socket (4-pin XLR–M)
Pin
Function
1
Mic ground
2
Mic +
3
Earphone ground
4
Earphone
Table 14: Headset socket pin out
