Introduction
25
* To determine if your meter has this function compare the REF number on the meter identifica-
tion plate to the corresponding ordering information (list of REF numbers) on page 186.
A Touchscreen
Shows results, information, icons and
results saved in the memory. To select an
option, simply touch the button lightly.
B On/Off button
Press this button to power the meter on or
off.
C Opening for sample application
Opening in the test strip guide cover that
enables you to apply blood once the test
strip is inserted.
D Test strip guide cover
Remove this cover to clean the area
underneath (if it has become soiled, e.g.,
with blood).
E Barcode scanner
Operator and patient IDs can be read into
the meter using the integrated barcode
scanner. *
F Battery compartment cover
Remove to insert the battery pack.
G Meter identification plate
See page 5 for symbol explanation.

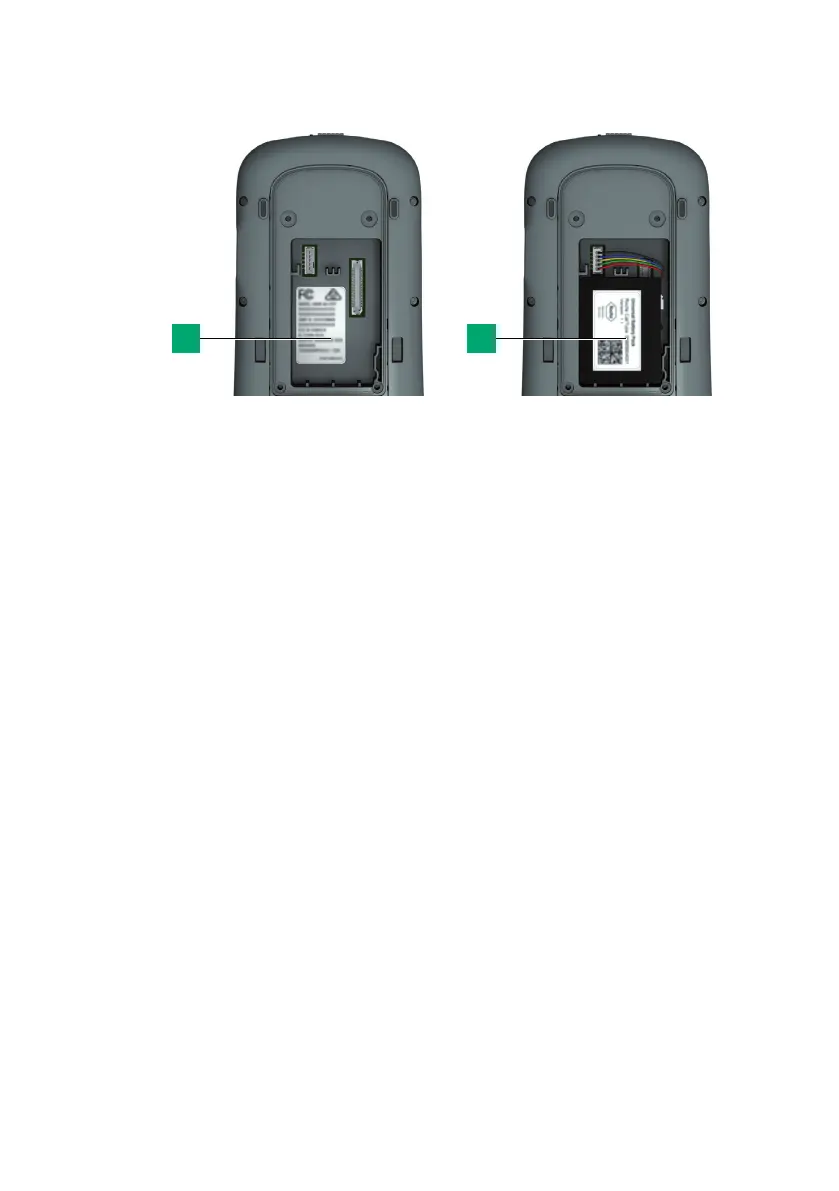

H Wireless LAN label
If the meter supports wireless connectivity:
This label displays registration numbers
that are specific to the meter RF hard-
ware. *
