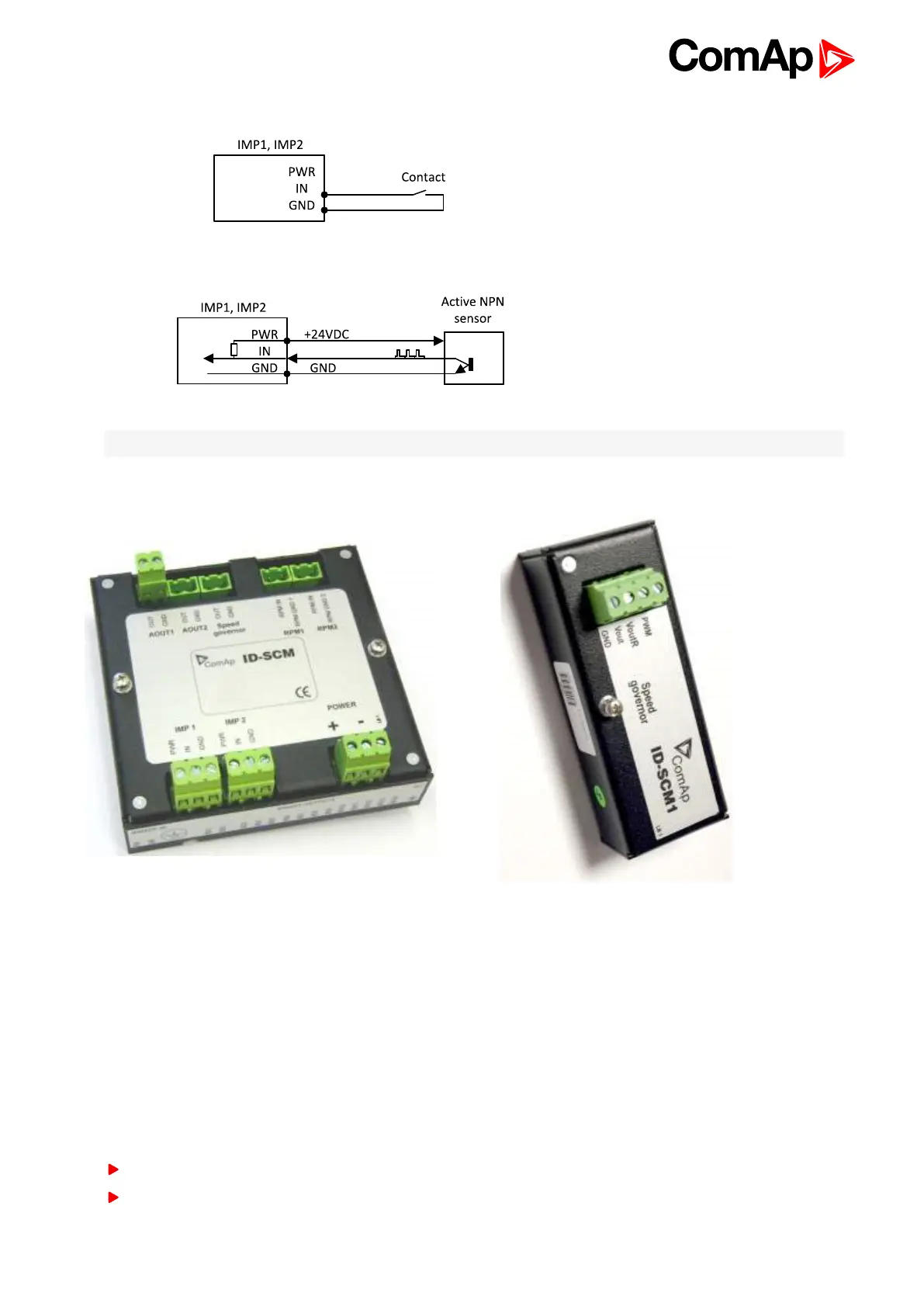

Contact sensor wiring to
IMP1 and IMP2 inputs.
Active NPN sensor wiring to
IMP1 and IMP2 inputs.
Note: Maximal torque to tight main screw is 0.25 Nm.
Outputs
4.1.9 ID-SCM1
Technical data
Power supply: internal supply from ID-DCU Industrial (8 to 36 VDC)
Operating temperature range: -40°C to +70°C
Number of analog outputs: 1, no galvanic separation
Analog output refreshment: 100 ms
Analog output options
PWM 1600 Hz (fix), 5V level, max 10 mA
0 to 10VDC ± 1%, 10 kΩ output resistance
