InteliDrive DCU Industrial 3.4.0 Global Guide

ID-DCU Industrial contains internal 120 Ω resistor over jumper setting on CAN1 bus. Use D SUB9 male

connector: CAN H = 5, CAN L = 9, COMMON = 3 and 8.

IGS-PTM unit contains internal jumper-removable 120 Ω resistor. To be sure check resistor presence by

ohmmeter. Unit with internal resistor should be connected to the end of CAN2 line.

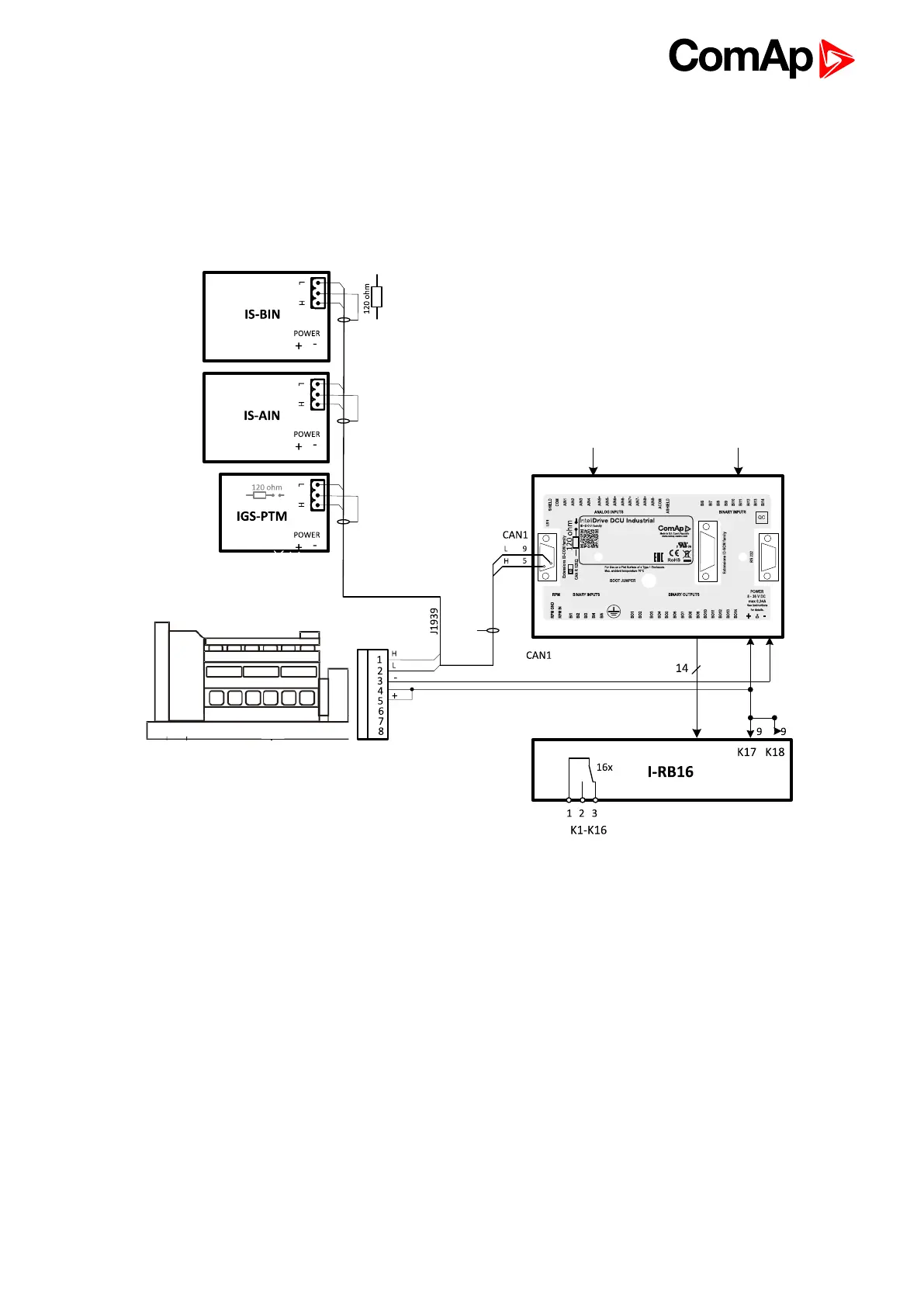

4.2.2 Electronic engine without redundancy line
