InteliDrive DCU Industrial 3.4.0 Global Guide
85
Note: Controller sends Shared Binary Outputs each 100ms if there are any changes in any bit position. If there
are no changes, controller sends the information with period 1s.

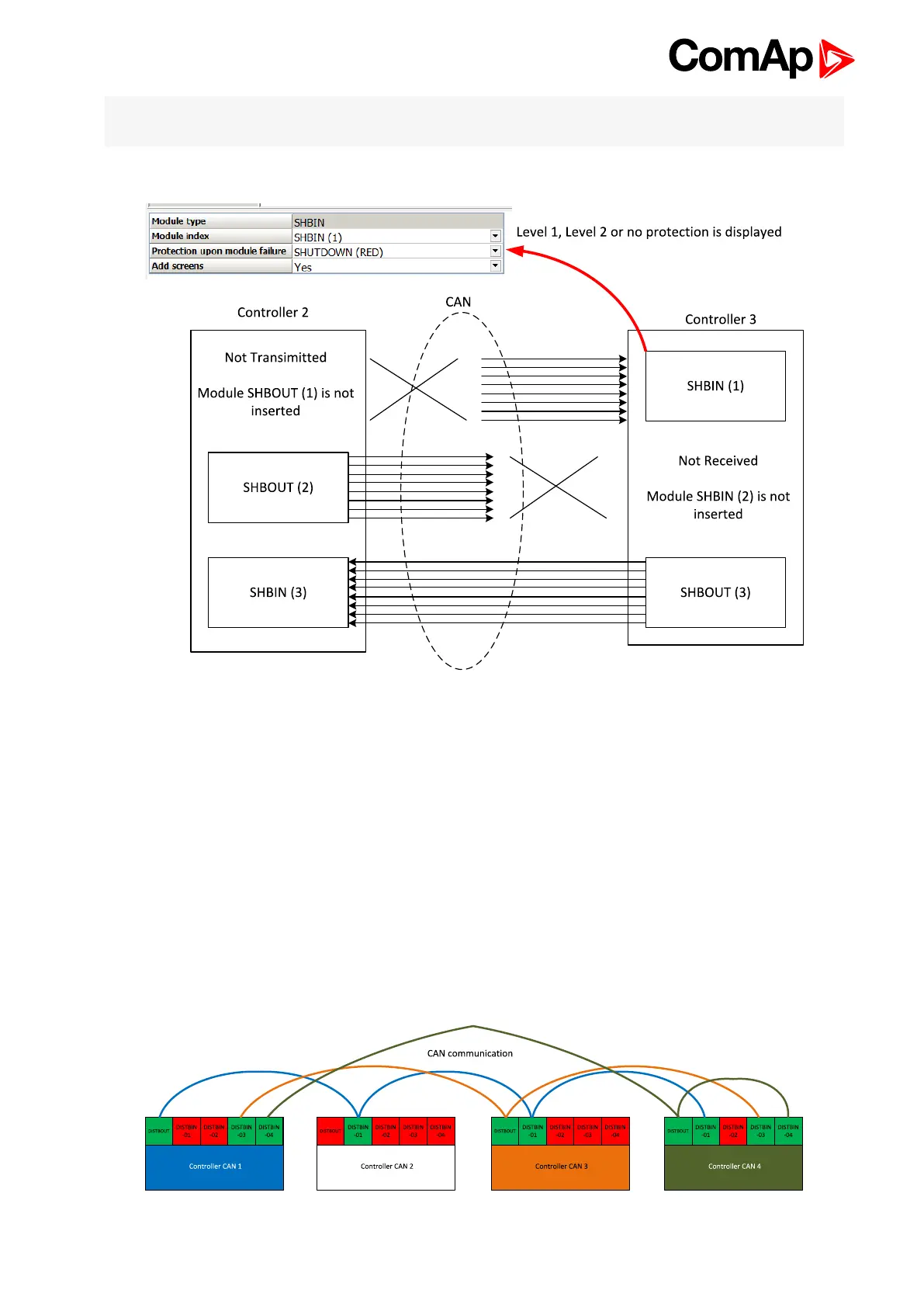

A protection upon module failure can be configured in DriveConfig. See the schematic below.
5.3.3 Distributed binary inputs and outputs
It is possible to share Binary and Analog values between all the controllers via CAN bus, thus saving physical
Inputs and Outputs and excess wiring.
DISTBIN and DISTBOUT work in a different way than SHBIN and SHBOUT. Each controller has one pack of
eight DISTBOUT available (if not configured or no function is assigned to any output, it does not broadcast
them). The number of DISTBOUT module is not shown in the configuration and it is always corresponding to the
CAN address of the controller (e.g. the controller with address 5 will be broadcasting DISTBOUT-05 which can
be received if module DISTBIN-05 is configured in another controller. Up to 32 DISTBIN modules can be
configured (meaning that the controller will be receiving all DISTBOUT from all the controller, even his own).
It is not possible to change the name of DISTBIN inputs or add protections.
In the example below you can see 4 controllers with various DISTBIN and DISTBOUT configuration.
