* each analog input can be software configured to:
Measuring range Accuracy
From To
Resistance 0 Ω 2400 Ω ± 0.5 %
0 Ω 250 Ω ± 1.0 %
Current Passive 0/4 mA 20 mA ± 0.5 %
Active 4 mA 20 mA ± 0.5 %
Active 0 mA ± 20 mA ± 0.5 %
Voltage Thermocouples J, K, L type ± 0.2 %
0 mV 100 mV ± 0.2 %
- 1000 mV + 1000 mV ± 0.5 %
0 mA 2500 mV ± 0.5 %
Standard conformity
Low Voltage Directive EN 61010-1:95 +A1:97
Electromagnetic Compatibility
EN 50081-1:94, EN 50081-2:96
EN 50082-1:99, EN 50082-2:97
6 back to Extensional modules

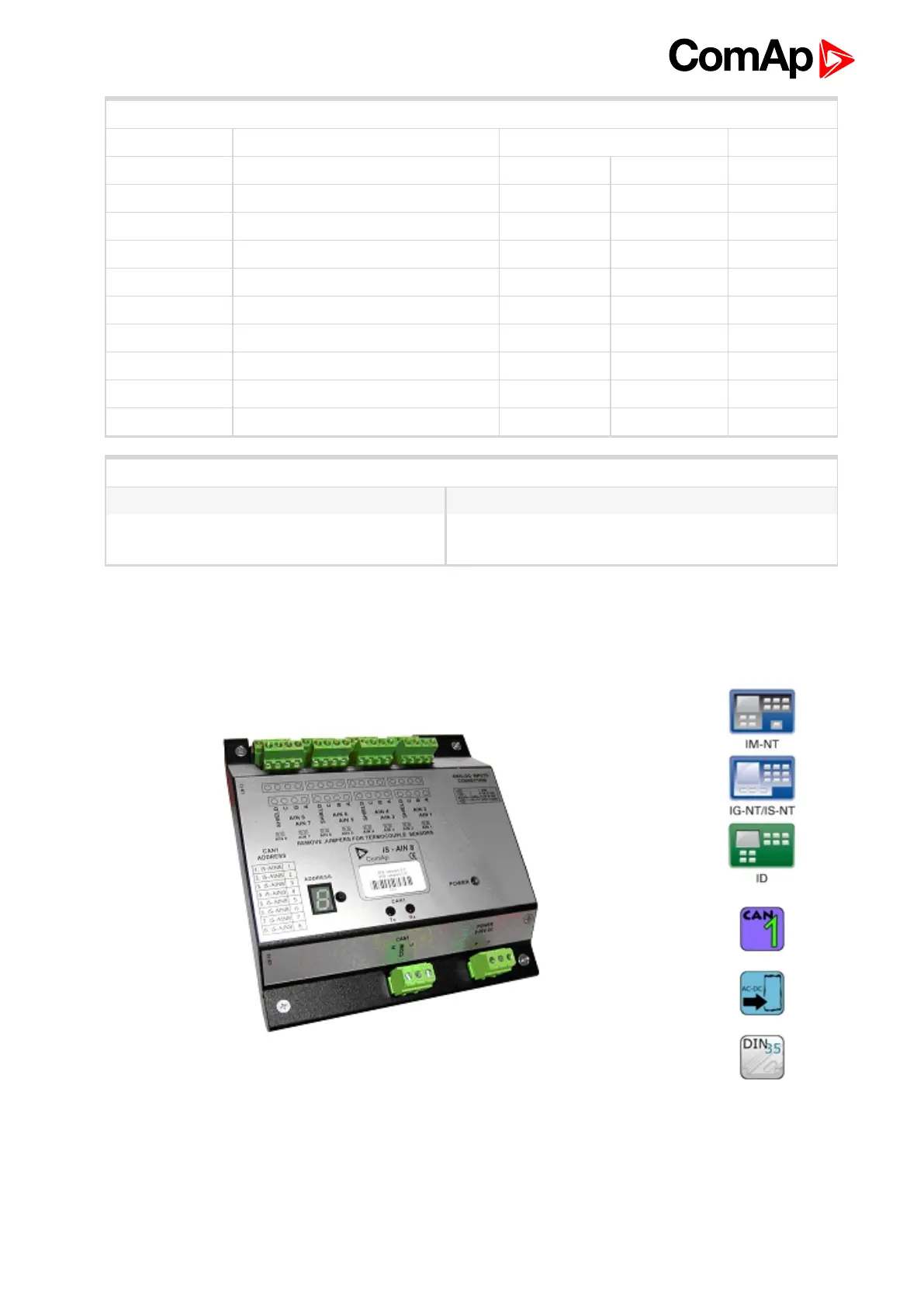

8.2.7 IS-AIN8TC
Description
IS-AIN8 is input extension module equipped with 8 analog inputs dedicated for thermocouple sensors only. The
module can be used for ID, IGS-NT controller. IS-AIN8TC can be configured to:
