InteliDrive DCU Industrial 3.4.0 Global Guide
10

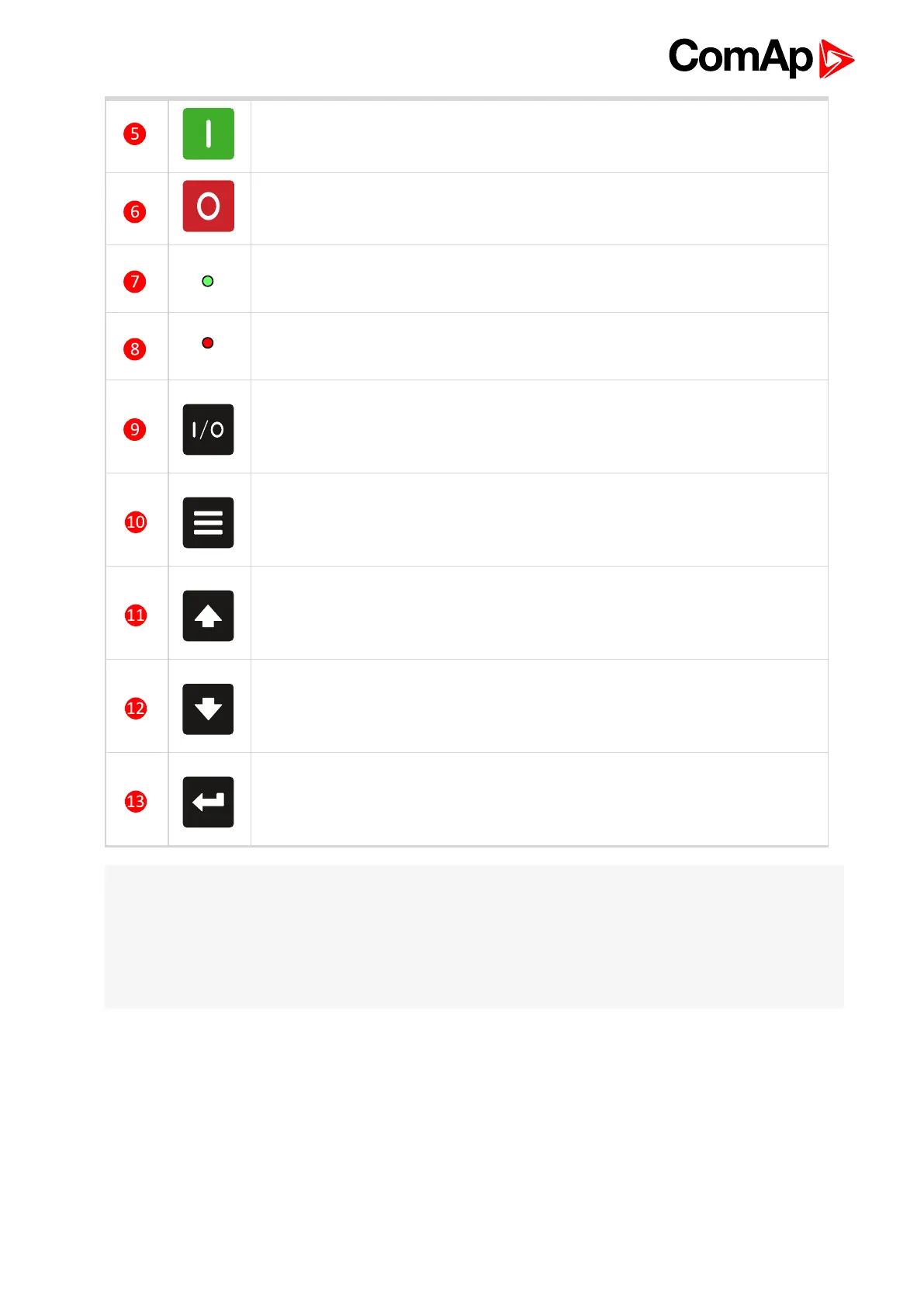

Starts the engine in OFF-RUN. mode.
Stops the engine in OFF-RUN. mode (hold time =1 sec).
GREEN = Engine running.
RED (blink) = Alarm list contains not confirmed alarm.
RED (lit) = Alarm list contains confirmed alarm.
Button for Close load or Clutch Binary output control.
Cycles through the display screens MEASUREMENT->ADJUSTEMENT-
>HISTORY.
Select the set point, select the screen or increase set point value.
Select the set point, select the screen or decrease set point value.
Confirm set point value.
Note:
Stop button hold time is 0.5 sec. to avoid unwanted engine stop.
The 2nd (0.5 sec) push of the Stop button cancels the ‘cooling state’ of the engine and stops the engine
immediately. To avoid the cancel of the ‘cooling state by the 2nd push of the Stop button, use LBI card of the
DriveConfig tool and make the association of Access Lock to the Cooling logical binary output of the ‘Source
column. It causes locking of the front panel buttons during the Cooling state.
2.1.1 Controller screens
There are three screen groups available on ID controller: Measuring Setpoints History.
Measuring screen will be divided to more groups ID-DCU Industrial, BIN/BOUT, AIN.
