Binary
List contains 128 internal binary values (bits) PLC Bout 1.1 to PLC BOUT 16.8 that
can be configured as any PLC function binary input or output.
Only used PLC Bout x.x can be configured to ID-DCU Industrial controller or external
modules physical terminals.
Used values are visible at controller screen.
Analog
There are available 96 internal analog values PLC Aout 1 to PLC Aout 96 that can be
configured as any PLC function input or output.
Any used PLC Aout x can be configured as physical analog output.Used values are
visible at controller screen.
PLC resource
Unsigned value that is automatically used for Counter and Timer functions, 16 PLC
resources are available.
Values are visible in InteliMonitor only.
PLC values
5.2.2 List of available PLC functions
Note: Exact description of all available PLC functions can be found in DriveConfig-3.3 User Guide or in
DriveConfig context help (F1 key when a PLC function is selected).
IMPORTANT: Logic for controlling the motor can't be locked in PLC. Certification authority can ask
for access to the content locked this way.

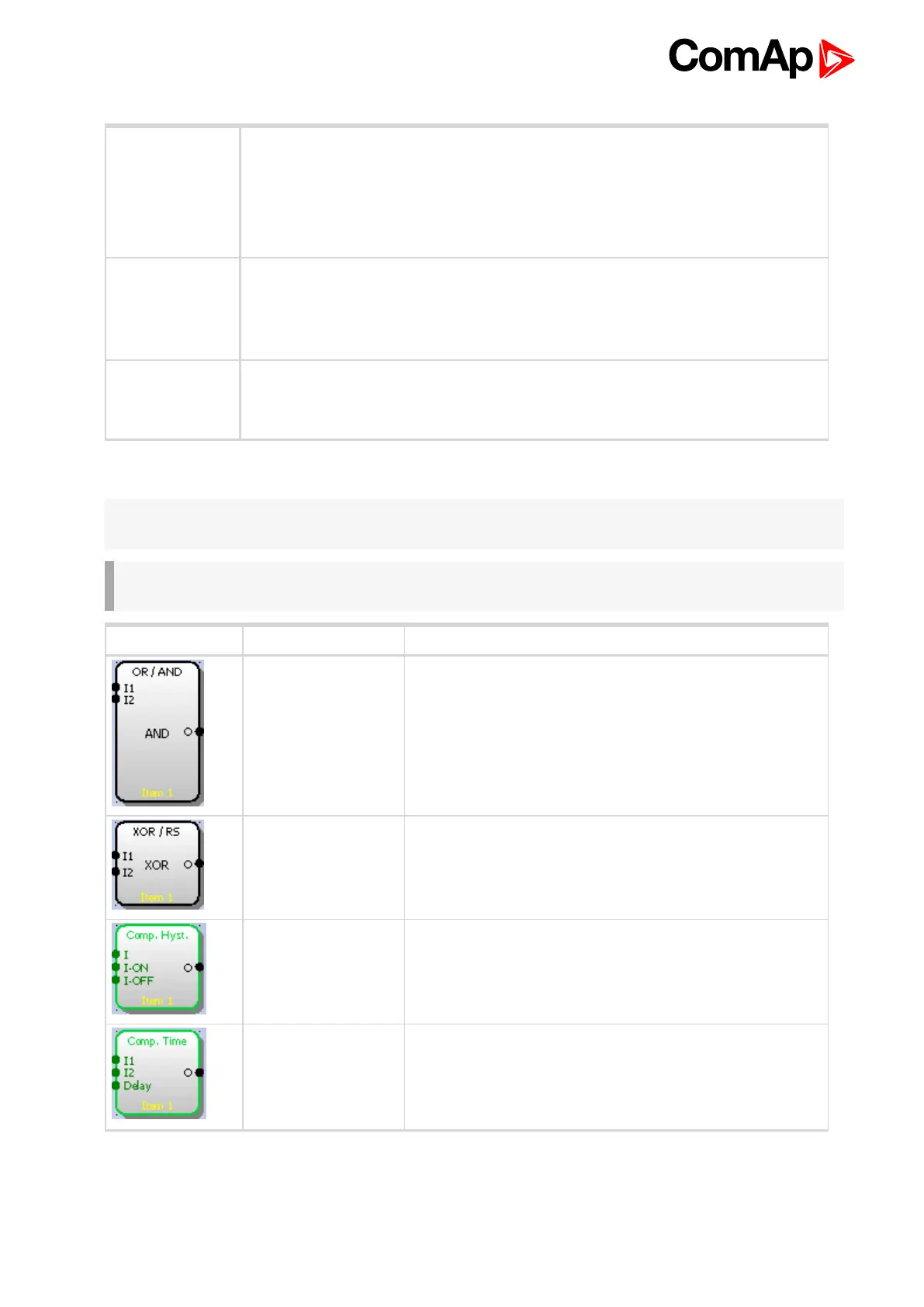

PLC Function Selection Available Number of available blocks in ID-DCU Industrial 3.4.0
OR/AND 128x
XOR/RS 128x
Comp Hyst 24x
Comp Time 16x
