InteliDrive DCU Industrial 3.4.0 Global Guide
34

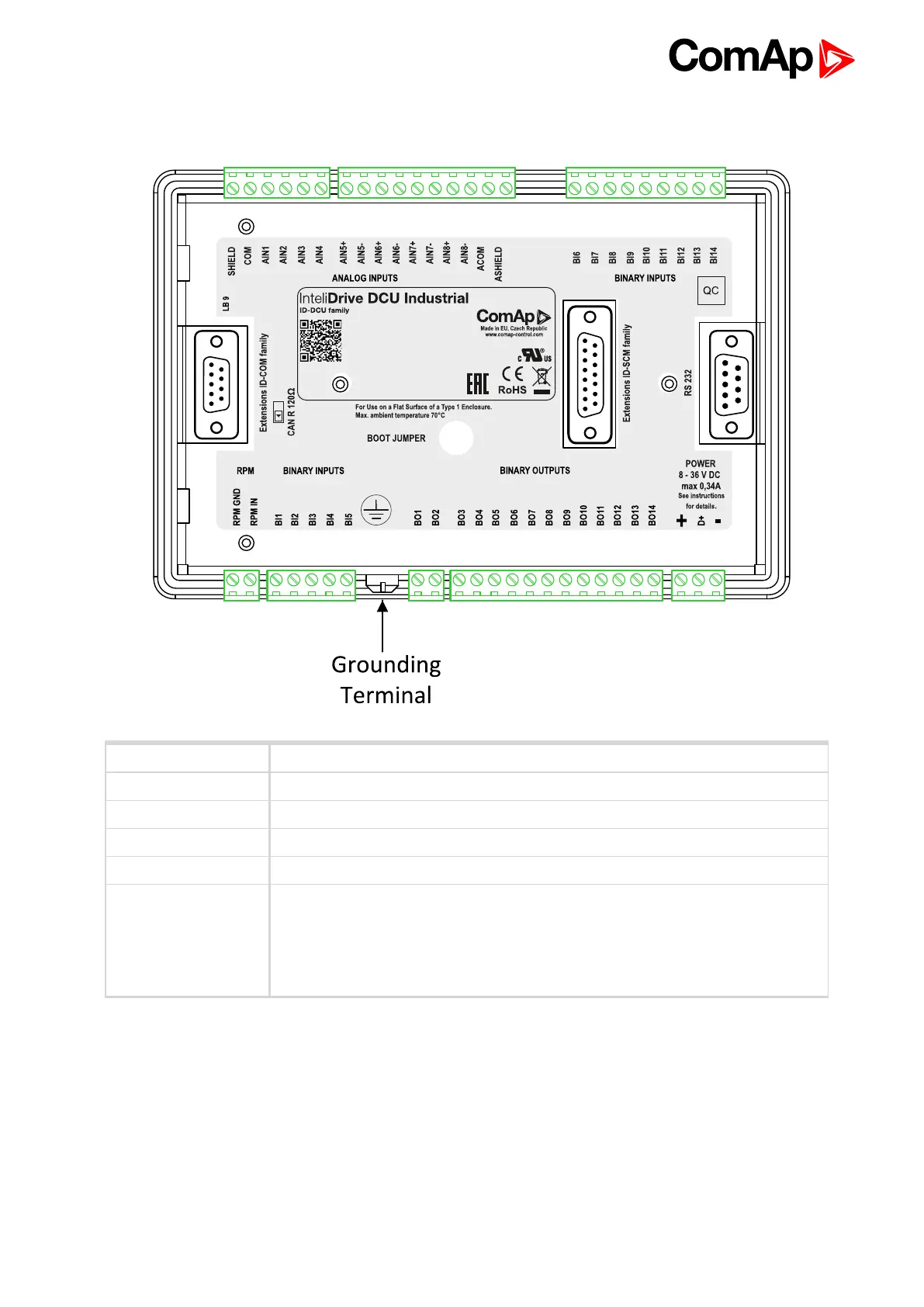

4.1.6 ID-DCU Industrial terminals
RPM Primary RPM
BI1 to BI14 Binary inputs, active when closed to minus power supply
BO1 to BO14 Binary outputs; Low side switch; 0,5 Amps each;
D+ D plus terminal
AIN1 to AIN4 Analog inputs - group 1
AIN5+, AIN5-
AIN6+, AIN6-
AIN7+, AIN7-
AIN8+, AIN8-
Analog inputs - group 2
4.1.7 ID-DCU xx -LT version with display preheating
LT is an option for extending of operating temperature range from -20 to -40 °C. Heating foil is not part of
standard ID-DCU and ID-MCU (without -LT extension).
