InteliDrive DCU Industrial 3.4.0 Global Guide
305

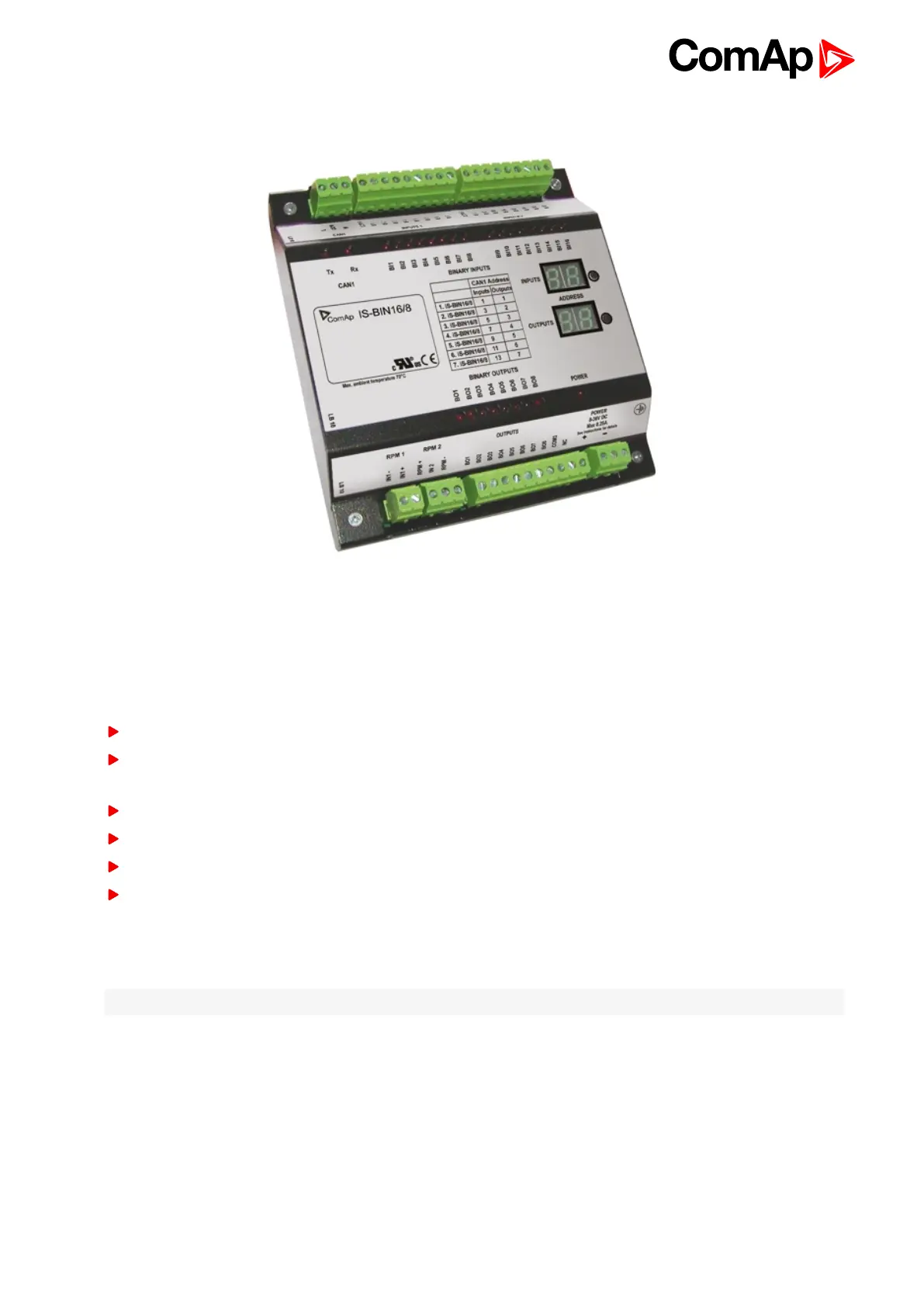

8.2.4 IS-BIN16/8
Description
IS-BIN16/8 is an extension module with 16 binary inputs (galvanic separated) and 8 binary output (galvanic
separated), 2 pulse inputs (frequency measurement or pulse counting). All I/O can be configured to any logical
function or protection. It is possible to connect up to 6 IS-BIN16/8 external units to one controller. External
modules IS-BIN16/8 is connected to controller CAN1 bus. To operate external modules:
Connect all external modules to CAN1 bus line
On each module adjust I/O CAN1 address in the range of 1 to 7 for IS-BIN16/8 output, 1,3,5,7,9,11,13 for IS-
BIN18/8 inputs
In case of use generic module in configuration you can set CAN address from 1 – 12
In case of set 0 CAN address - inputs/ outputs are deactivated
Input output address is displayed on the front panel LCD’s
Use PC configuration tool to configure controller according external modules setting
IS-BIN16/8 module has two separate CAN1 addresses for binary inputs Group 1, Group 2 and binary output
Group (total three addresses). The CAN1 address for BI Group 1 and for BO Group 2 can be adjusted on the IS-
BIN16/8. The address for BI Group 2 is set automatically to the address following BI Group 1.
Note: CAN address 0 disables corresponding CAN message (Group data are not send).
