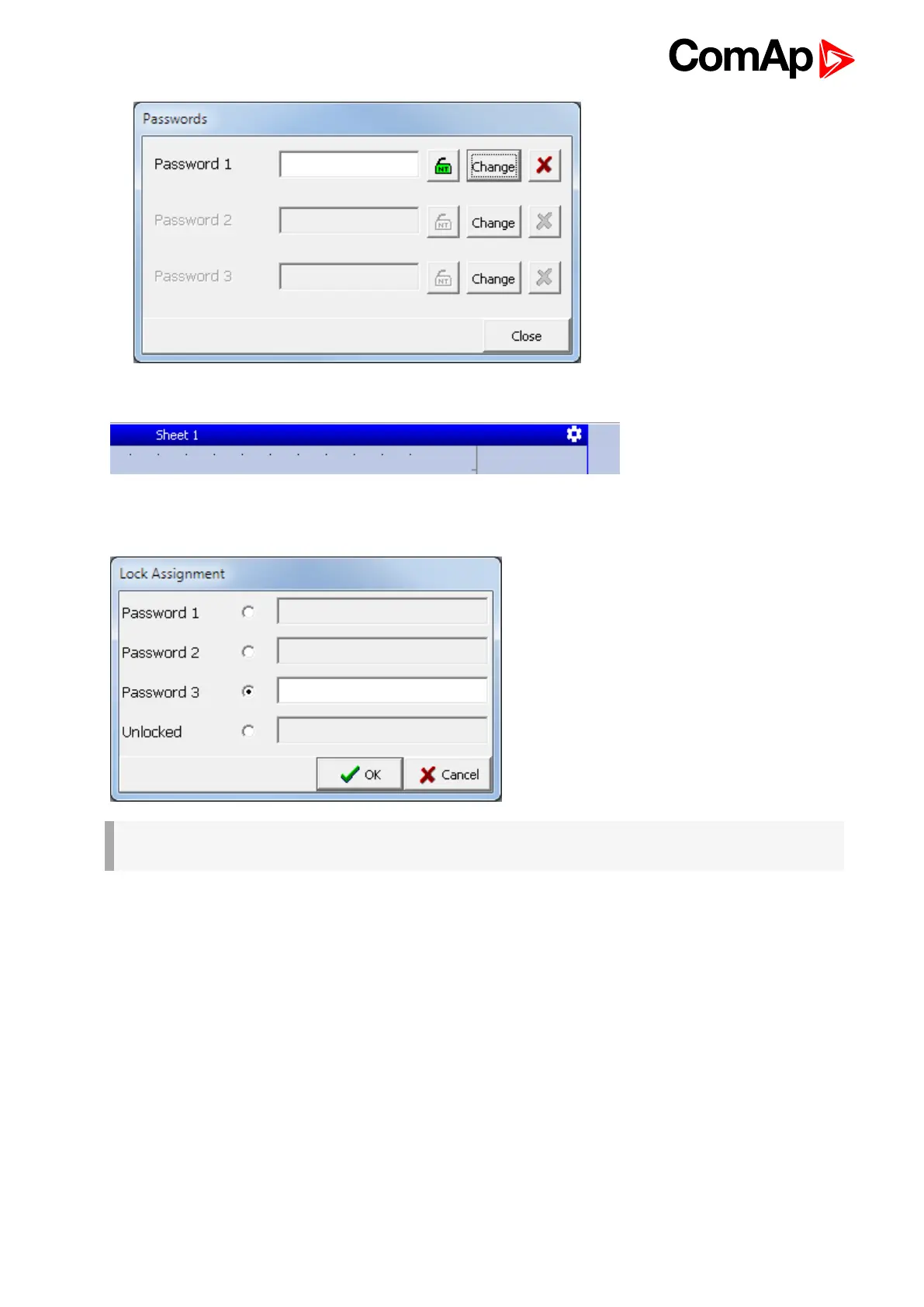

To assign password to the PLC sheet, click on assign icon in title of PLC sheet:
In configuration window you can assign one of three passwords. It is necessary to enter correct password. If
password does not exists, user is asked to create it.
IMPORTANT: Very important parts of the control algorithm must not be locked in PLC sheets.
Certification authorities may request their unlocking if necessary.
5.3 Shared IO and Virtual IO
5.3.1 Virtual Binary Outputs (VBOUT) module
Several virtual modules are available. One of them is Virtual Binary Outputs module (VBOUT)
which enables use of Prg. states binary signals with the built-in PLC. Prg. states signal can not be directly
configured as a PLC module input. Therefore it is necessary to use VBOUT module as interface between a Prg.
state signal and a PLC module.
Up to 4 VBOUT modules are available, each VBOUT modules represents 8 binary output signals.
