5. Disconnect the front USB cable from the yellow system board connector (F_AUDIO) and the I/O
cable from the white system board connector (USB2).
6. Remove the silver Torx screw (1) that secures the panel to the chassis.
7. Pull the panel (2) away from the unit while guiding the wires through the hole in the front of the
chassis.

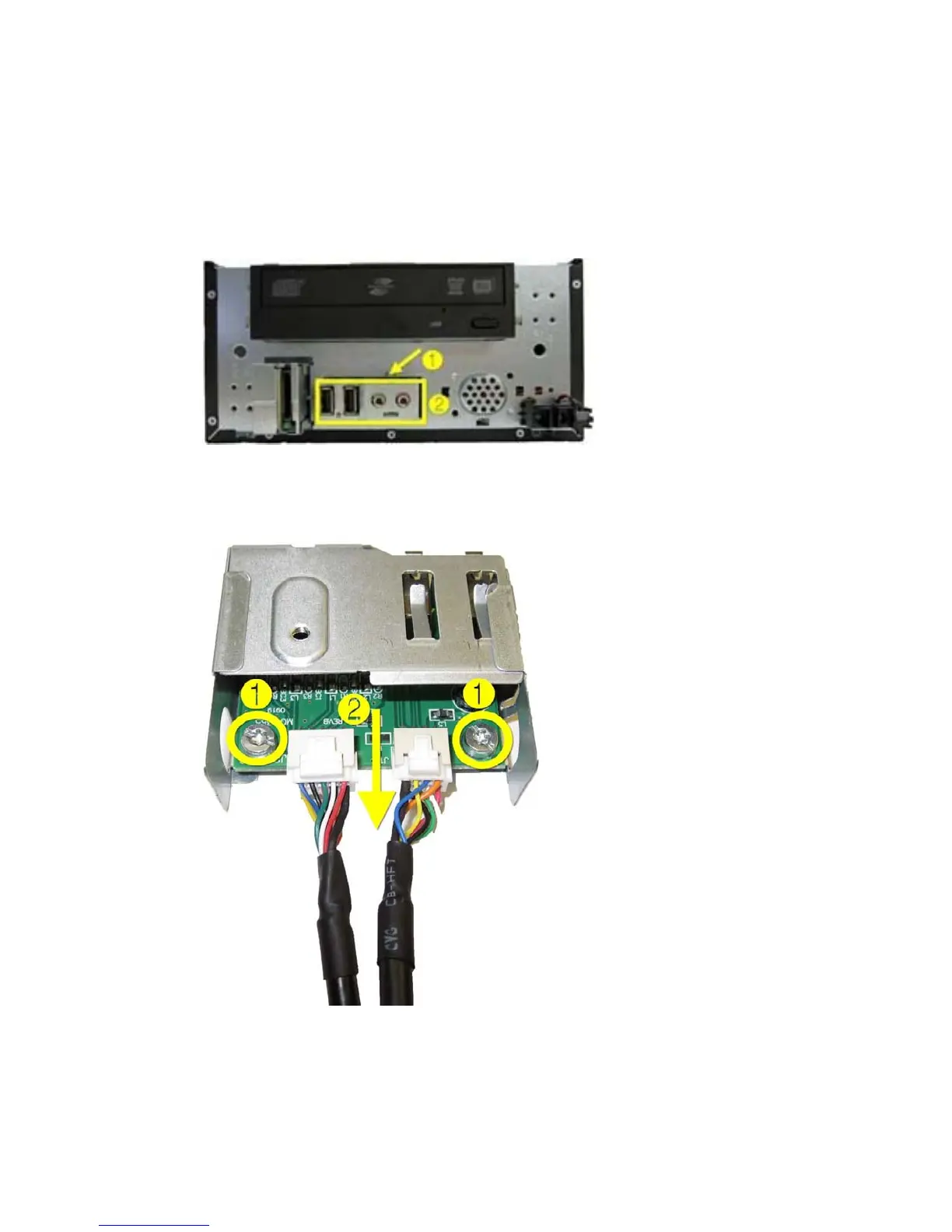

Figure 7-22 Remove the Front USB Assembly
8. If you need to remove the front I/O board from the bracket, remove the two Torx screws (1) that
secure the board to the bracket, and then slide the board out of the bracket (2).
Figure 7-23 Removing the Front I/O Board from the Bracket
To reinstall the panel, reverse the removal procedure.
