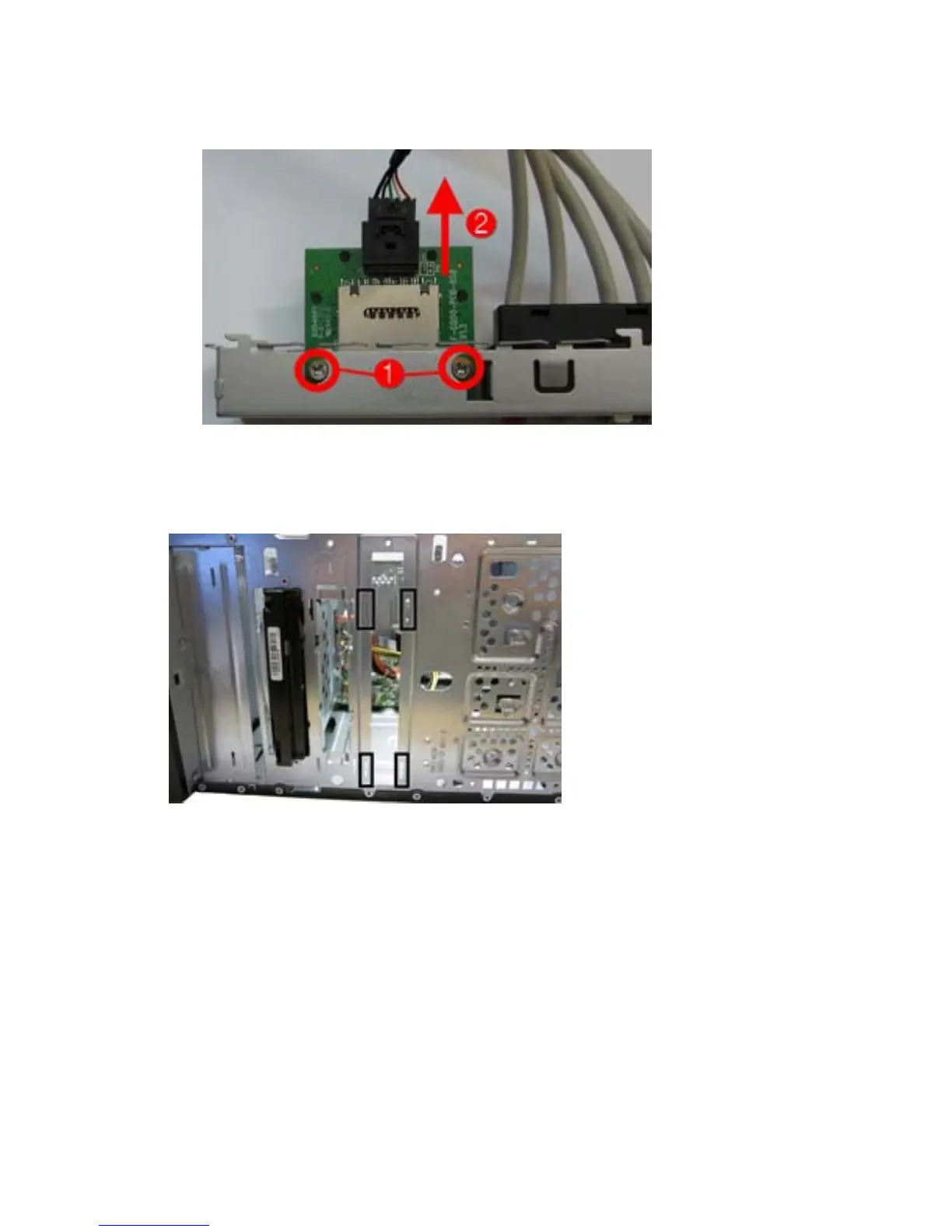

8. Remove the two Torx screws (1) that secure the card reader to the front I/O assembly, and the
lift the card reader from the assembly (2).
To install the assembly, reverse the removal procedures.
When installing the assembly, note that the assembly has hooks that fit into slots in the chassis, as
shown in the following image.
Front I/O Assembly
63
