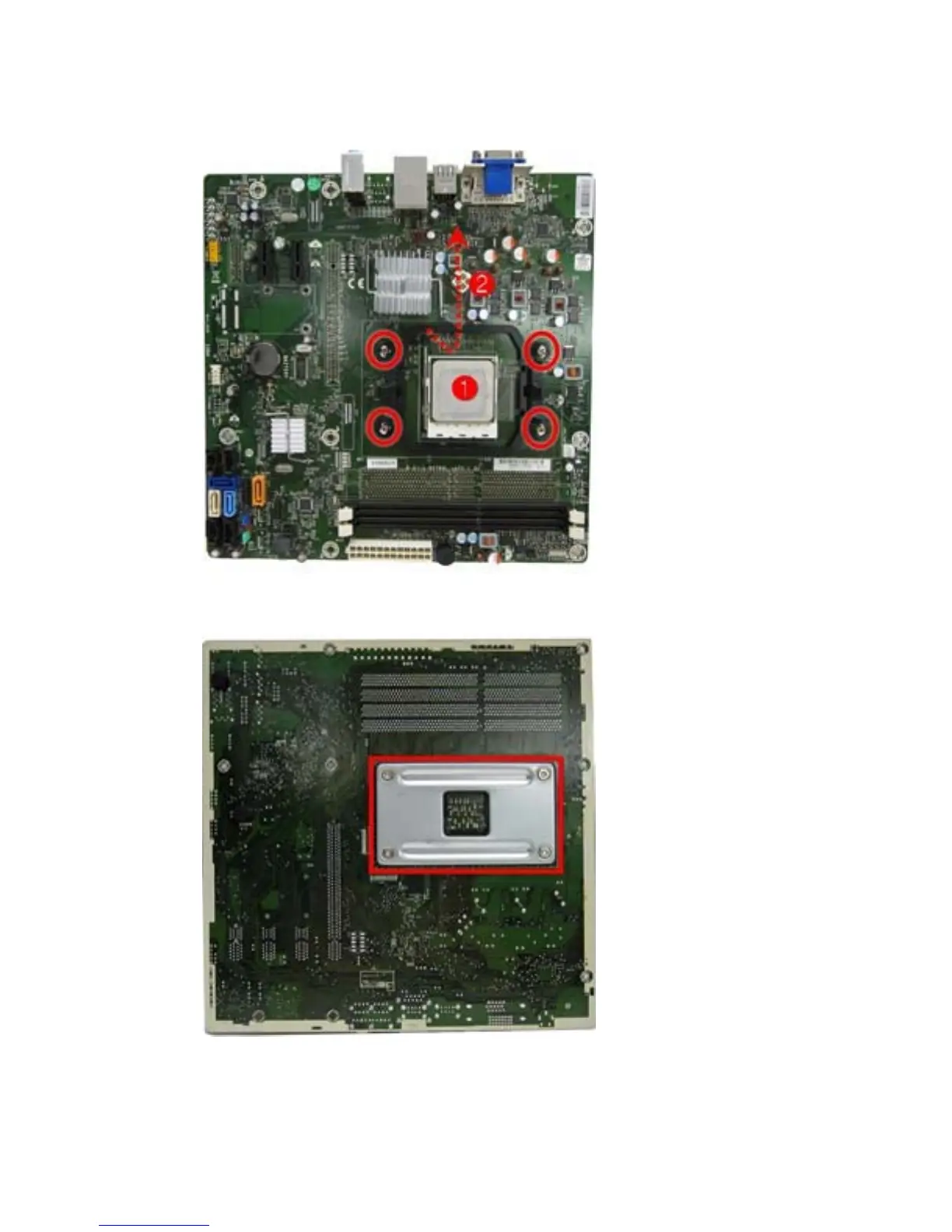

9. If you need to remove the heat sink bracket, remove the four Torx screws (1) that secure the
bracket to the system board, and then lift the bracket from the system board (2).
The bracket on the bottom of the system board (see following image) comes loose when you
remove the heat sink bracket screws.
To install a heat sink and heat sink bracket, reverse the removal procedures.
Heat Sink
67
