Table 6-4 Power supply cable connections
(continued)
P3 Hard drive
P4 Optical drive
1. Prepare the computer for disassembly (Preparation for Disassembly on page 43).
2. Remove the access panel (
Access Panel on page 44).
3. Lay the computer on its side with the rear facing toward you.
4. Disconnect all power cables from the mass storage devices and from the system board (two
connectors).

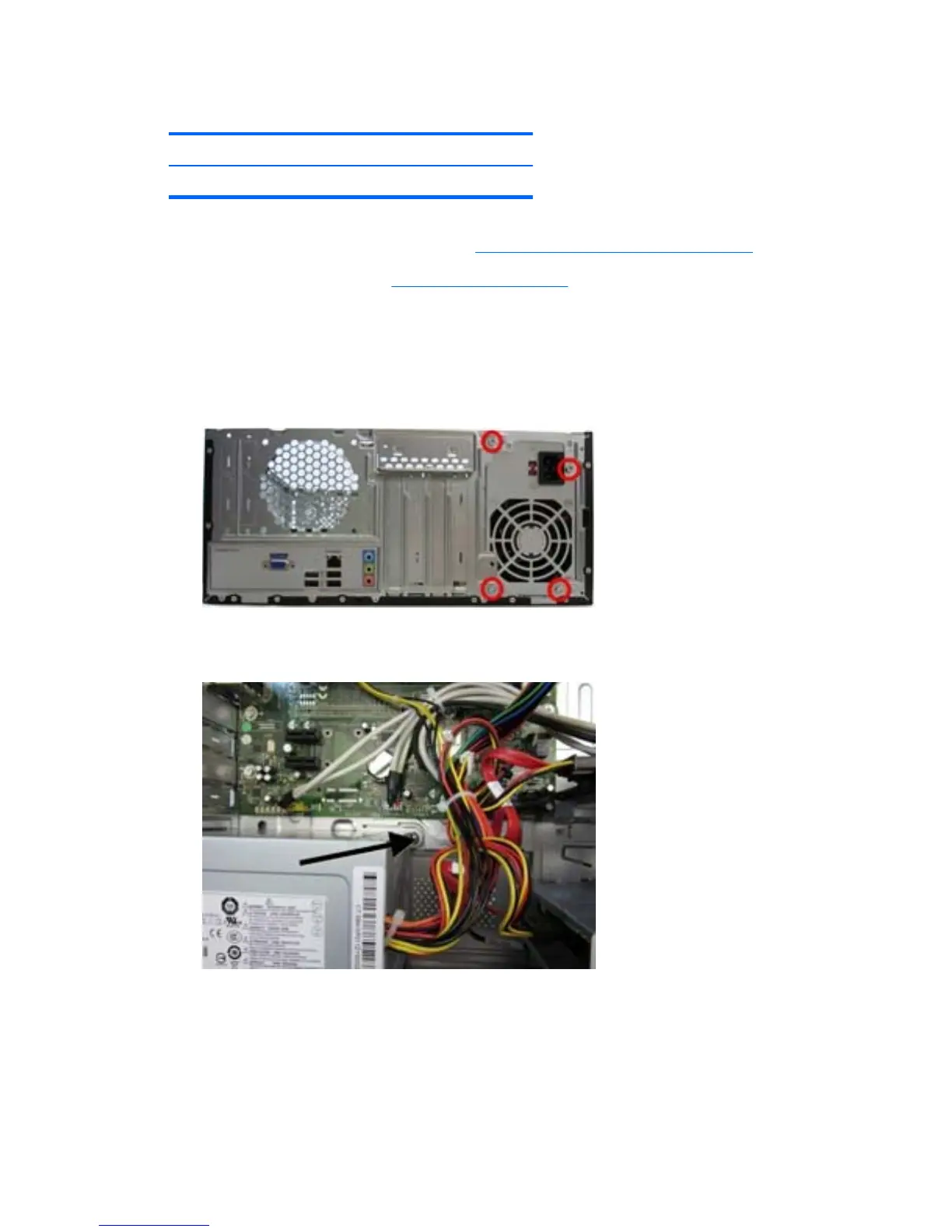

5. Remove the four screws that secure the power supply to the chassis.
6. Inside of the unit, press the power supply release latch on the chassis base, and then lift up the
rear of the power supply to disengage it from the chassis.
7. Slide the power supply toward the front/bottom of the computer, then lift the power supply out of
the computer.
To install the power supply, reverse the removal procedure.
Power Supply
71
