5.7 Cover Latch Retainer Removal
1. Prepare the computer for disassembly (Section 5.4).
CAUTION:
When the computer is plugged into an AC power source, there is always voltage applied to the
system board. You must disconnect the power cord from the power source before opening the computer
to prevent system board or component damage.
2. Remove the system unit cover (Section 5.6).
3. Grasp the top of the tilt drive cage and rotate it to its upright position.
✎
It is not necessary to disconnect the power cables from the drives to perform this
step.
4. Remove the retaining screw that secures the latch retainer to the side of the chassis, then
remove the latch.
✎
There is one latch retainer on each side of the chassis.

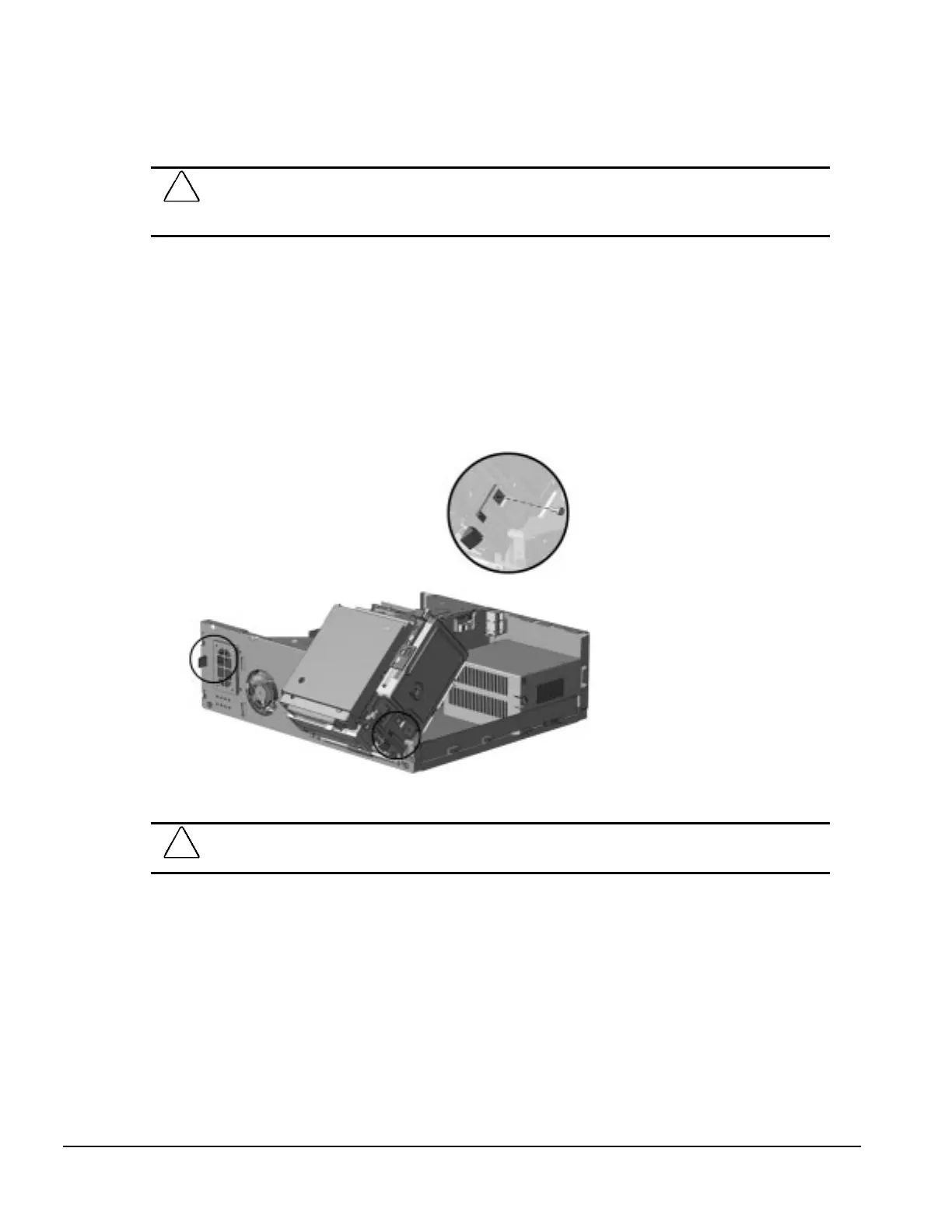

Removing the Cover Latch Retainer
CAUTION:
When returning the drive cage to its normal position, use caution to prevent damaging the
data and power cables.
To install the cover latch retainer, reverse the removal procedure.
