Compaq Deskpro EN Series of Personal Computers 5-19
5.12 Expansion Board Cage Components
5.12.1 Disconnecting and Raising the Expansion Board Cage
1. Prepare the computer for disassembly (Section 5.4).
CAUTION:
When the computer is plugged into an AC power source, there is always voltage applied to the
system board. You must disconnect the power cord from the power source before opening the computer
to prevent system board or component damage.
2. Remove the system unit cover (Section 5.6).
3. Lift the two green levers on the top of the expansion board cage to the upright position to
electrically disconnect the riser board, which is mounted on the expansion board cage, from the
system board and automatically raise it out of the system board.

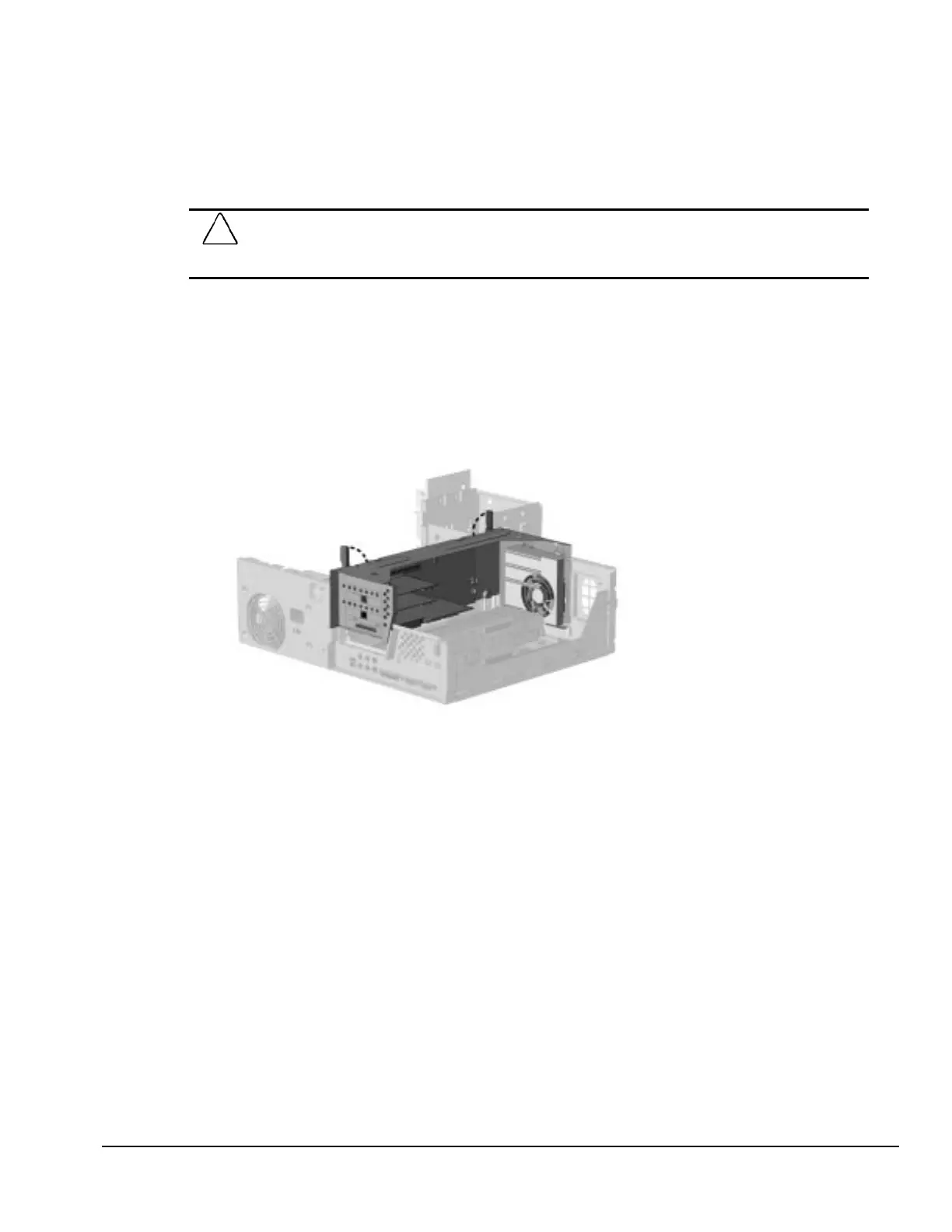

Disconnecting and Raising the Expansion Board Cage
It is not necessary to disconnect any cables for this operation.
To reconnect the riser board which is mounted on the expansion board cage, to the system board,
rotate the levers to their original positions to lock the assembly in place.
Before reseating the assembly, ensure that the system board tray is completely pushed into the
chassis.
