Compaq Deskpro EN Series - Connectors, Jumpers, and Switches; System Board Connectors and Jumpers

Compaq Deskpro EN Series of Personal Computers 9-1
chapter
9
C
ONNECTORS
, J
UMPERS
,
AND
S
WITCHES
9.1 System Board

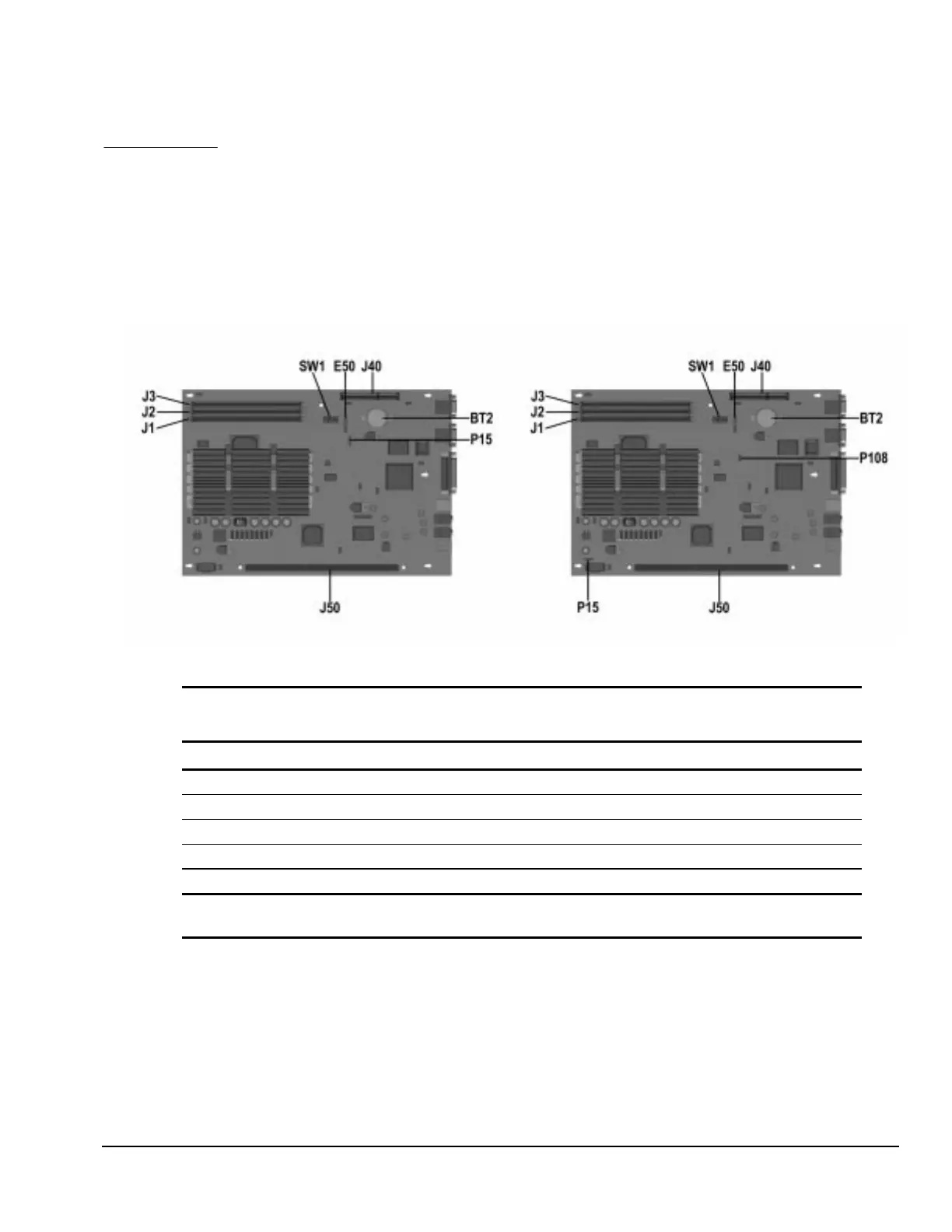

System Board Overview (007998-102 on the Left and 008123-101 on the Right)
Table 9-1
Connectors, Jumpers, and Switches
Item Description Item Description
BT2 External battery J40 AGP connector
E50 CMOS J50 Riser board socket
J1 DIMM 1 P15 Fan (thermal cable)
J2 DIMM2 P108 Spread System disable (select models)
J3 DIMM3 SW1 Switch 1, S1 through 6
*Board 007998-102 has the P15 connector located near the battery. Board 008123-101 has the P15
connector located near the riser board connector.
