Compaq Deskpro EN Series of Personal Computers 6-15
6.9 Drive Release Latch Removal
1. Prepare the computer for disassembly (Section 6.3).
CAUTION:
When the computer is plugged into an AC power source, there is always voltage applied to the
system board. You must disconnect the power cord from the power source before opening the computer
to prevent system board or component damage.
2. Remove the access panel (Section 6.6).
3. Remove the front bezel (Section 6.7.1).
4. Disconnect the drive and power cables from the rear of the computer.
5. Remove the primary hard drive (Section 6.8.1).
6. Remove the drives from the 5.25-inch drive bays (Section 6.8.2).
7. From inside the drive bay, push out on the retainer tabs that hold the green drive release latch in
position, then slide the latch toward the rear of the drive cage to release it.

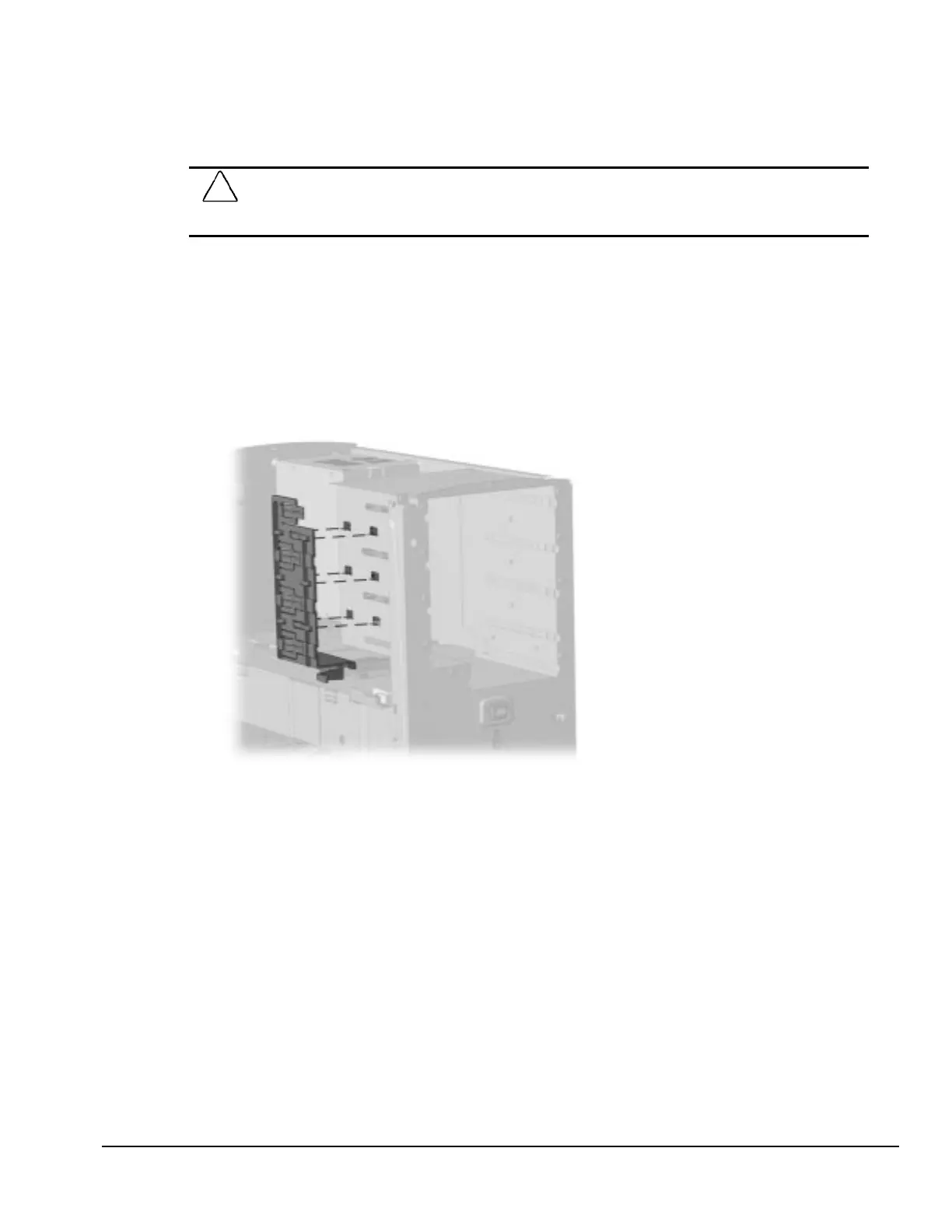

Removing the Drive Release Latch from the Drive Cage
To install the green drive release latch, reverse the removal procedures.
