9-8 Connectors, Jumpers, and Switches
9.5 Hard Drives

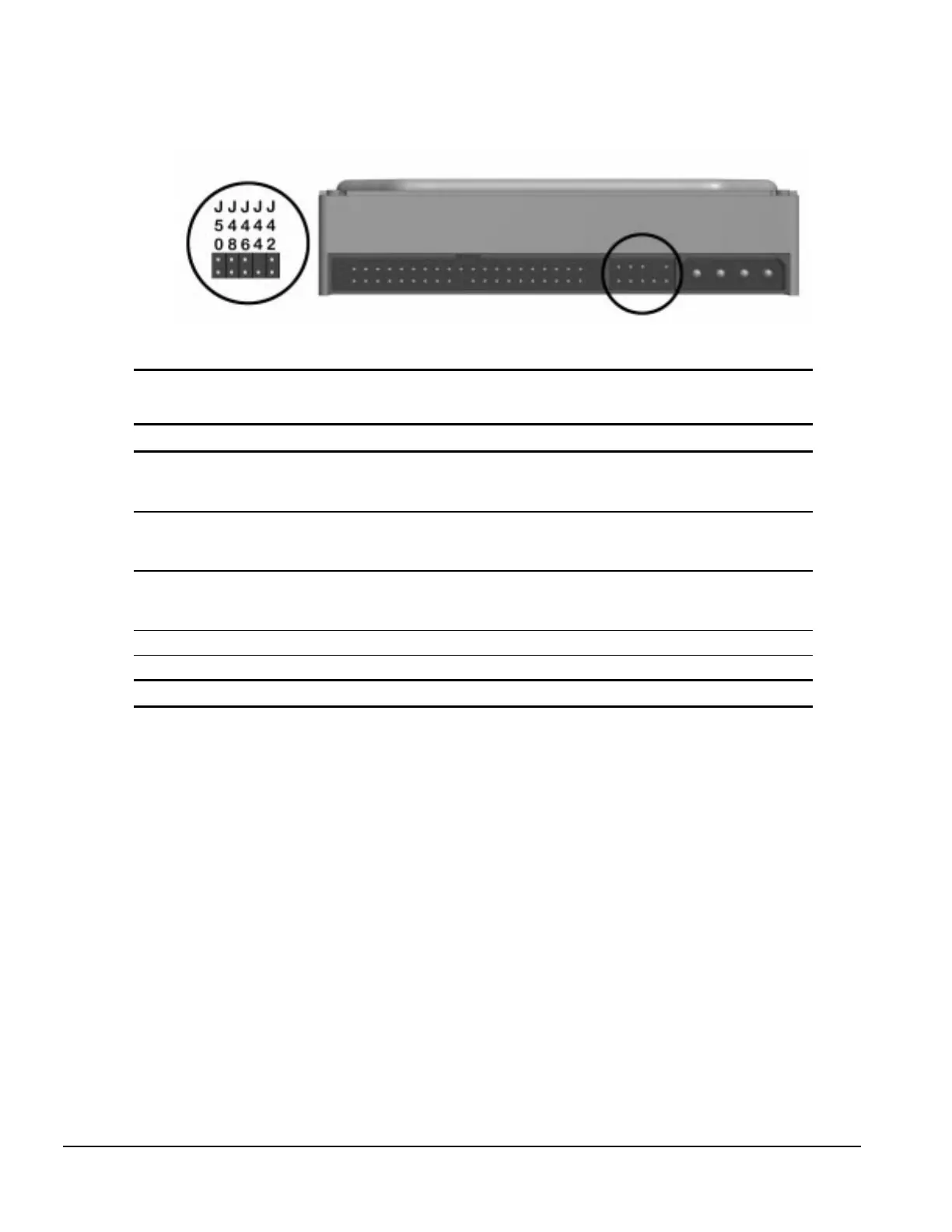

Maxtor Ultra ATA Hard Drive Jumper Settings
Table 9-9
Maxtor Ultra ATA Hard Drive Jumper Settings
Definition J50 J48 J46 J44 J42
Single
Primary (in a dual drive system)
Secondary
J
J
O
Cable Select
disabled*
enabled
O
J
4092 Cylinder Limitation
disabled*
enabled
O
J
Factory Reserved O
Factory Reserved O
J = jumper O = no jumper * = default setting
