Compaq Deskpro EN Series of Personal Computers 5-5
5.5 Cable Lock Installation
The cable lock is an optional device used to help secure the unit.
1. Separate the pieces of the security bracket by bending the metal where the three pieces join (see
inset).
2. Insert the tang of the narrow bracket into the slot, and slide the U-shaped bracket between it and
the system unit cover (see inset); then, install the self-tapping screw included in the cable lock
kit.
3. Cover the screw with the flat portion of the bracket.
4. Install a lock (not provided) in the security bracket to control access to the inside of the
computer. Install a cable lock (not provided) to secure the computer to a secure place.

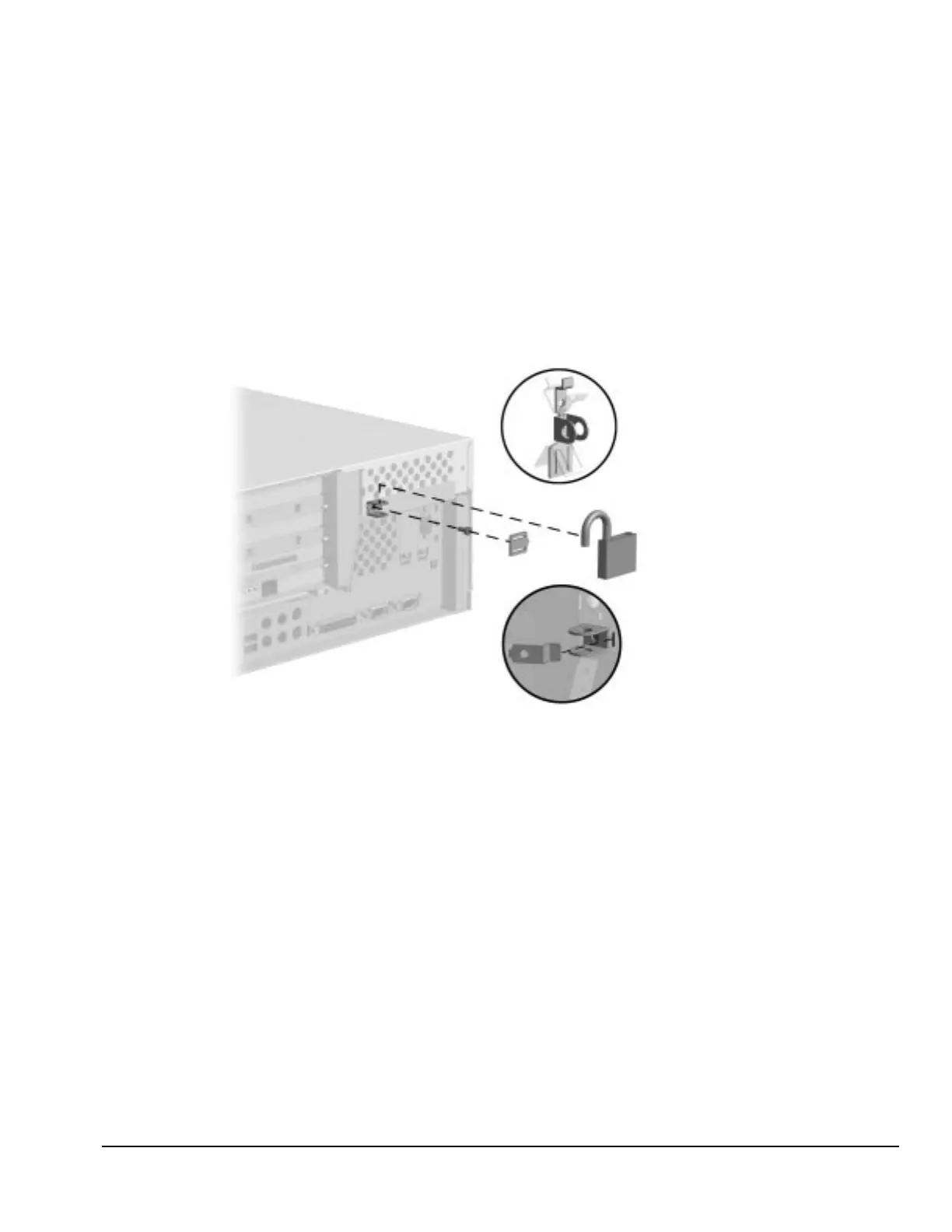

Installing the Cable Lock
To remove the cable lock provision, reverse the installation procedure.
