9-2 Connectors, Jumpers, and Switches
9.2 Riser Board
9.2.1 Desktop Riser Board
Front Side of Desktop Riser Board
Table 9-2

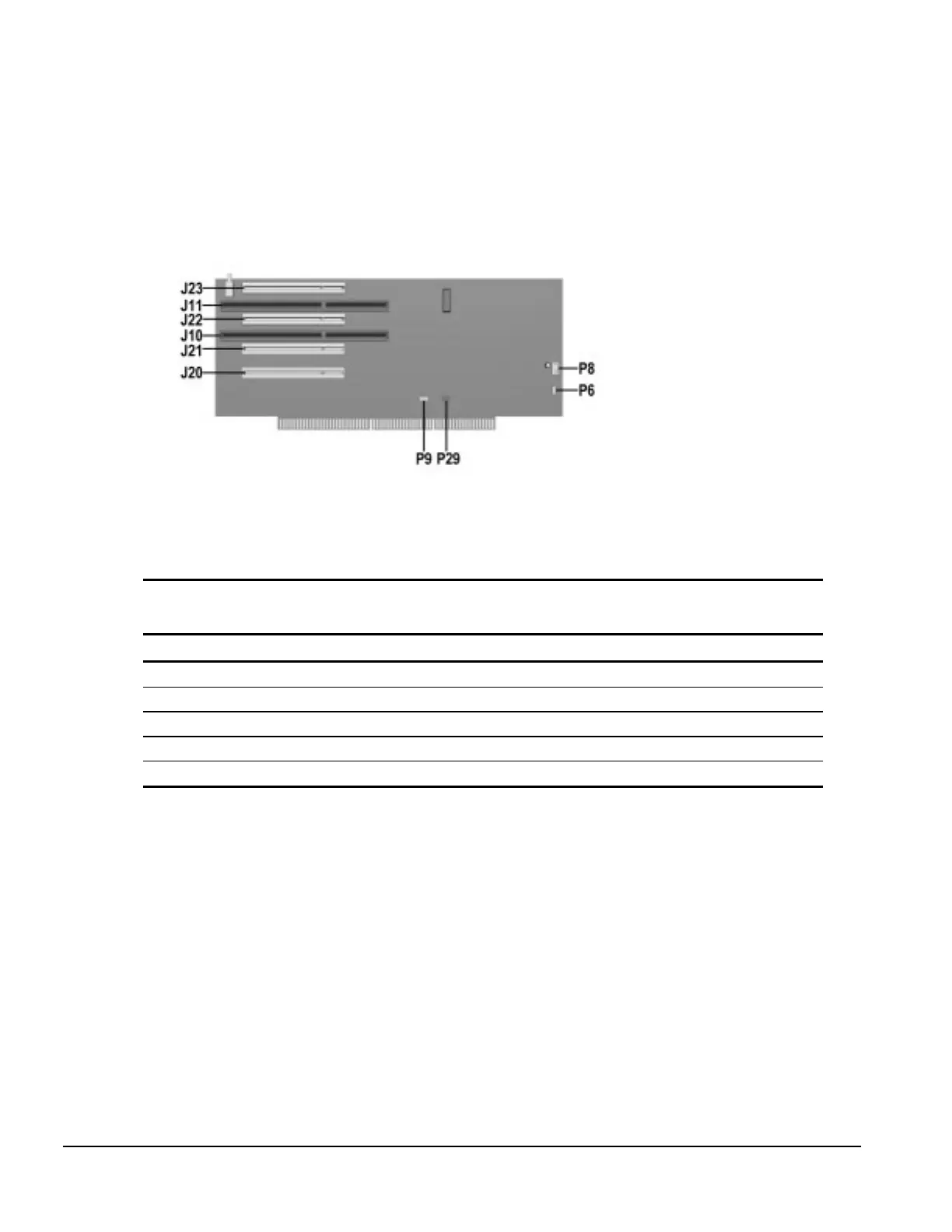

Front Side of Riser Board
Item Description Item Description
J10 ISA combination slot J23 PCI combination slot
J11 ISA combination slot P6 Speaker
J20 PCI connector slot P8 Fan
J21 PCI connector slot P9 NIC Remote Wakeup
J22 PCI combination slot P29 SCSI LED header
