Compaq Deskpro EN Series of Personal Computers 5-25
5.12.5 Expansion Board Cage Guide Bracket Removal
1. Prepare the computer for disassembly (Section 5.4).
CAUTION:
When the computer is plugged into an AC power source, there is always voltage applied to the
system board. You must disconnect the power cord from the power source before opening the computer
to prevent system board or component damage.
2. Remove the system unit cover (Section 5.6).
3. Disconnect and raise the expansion board cage (Section 5.12.1).
4. Remove the expansion board cage from the chassis (Section 5.12.3).
✎
It is not necessary to remove the expansion boards from the expansion board cage
before removing the cage from the chassis.
5. Remove the expansion boards from the board cage by first removing the retaining screw that
secures each board to the assembly. Be sure you disconnect any interconnect cables attached to
the expansion boards before removing the boards.
6. Remove the riser board (Section 5.12.4).
7. Press in on the two tabs 1 that secure each guide bracket to the cage, then slide the bracket
toward the top of the cage to remove it.

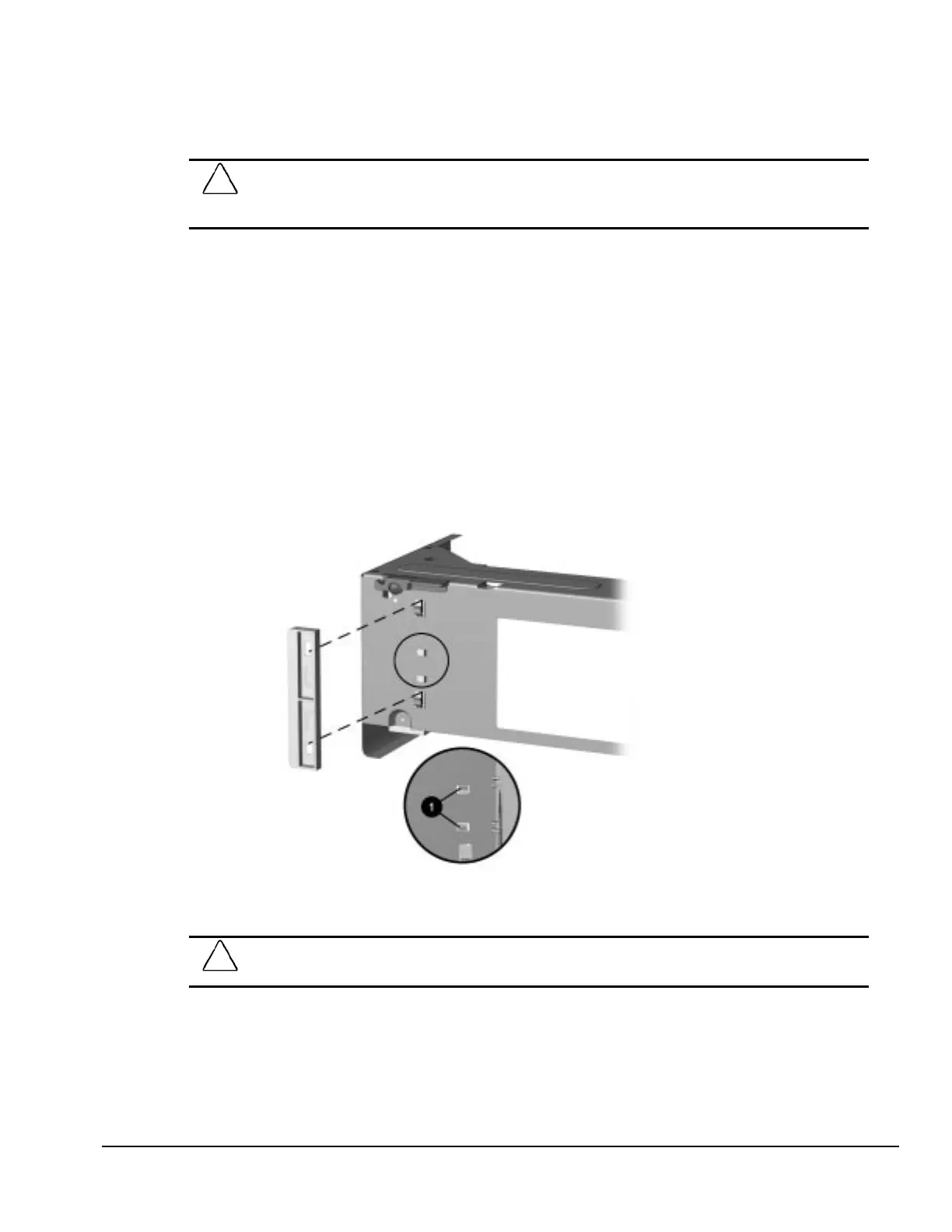

Removing the Board Cage Guide Brackets
To replace the guide brackets, reverse the removal procedure.
CAUTION:
When returning the drive cage to its normal position, use caution to prevent damaging the
data and power cables.
