Compaq Deskpro EN Series of Personal Computers 9-9

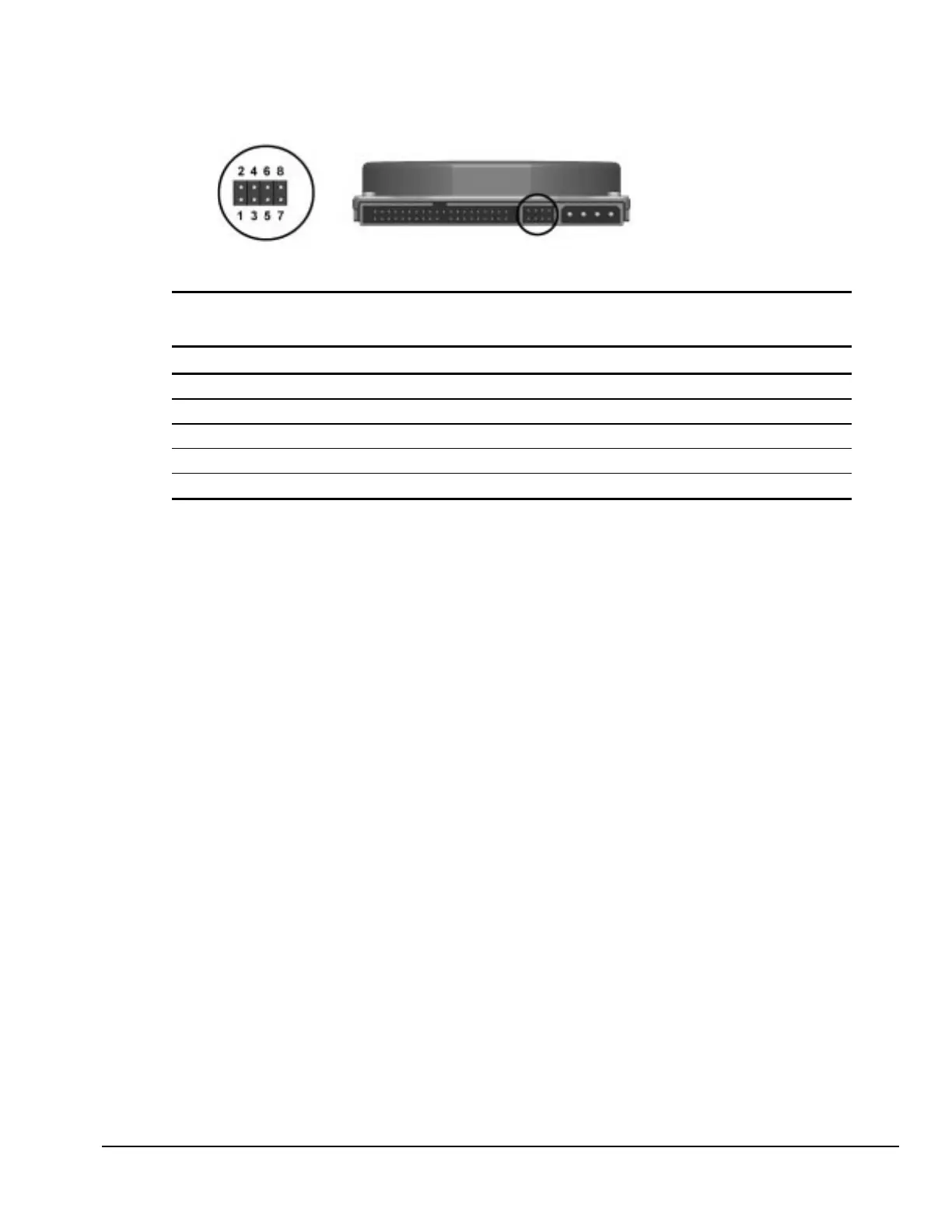

Seagate, Fujitsu, and Western Digital Ultra ATA Hard Drive Jumper Settings
Table 9-10
Seagate, Fujitsu, and Western Digital Ultra ATA Hard Drive Jumper Settings
Definition Seagate Fujitsu Western Digital
Single 7 to 8 1-2 and 3-5 3-5
Primary 5 to 6 and 7 to 8 1-2 and 3-5 5-6
Secondary no connection 3-5 3-4
Cable Select 5 to 6 2-4 and 3-5 1-2
Limit capacity to 2.1-GB 1 to 2
