Compaq Deskpro EN Series of Personal Computers 5-15
8. If this is a hard drive, remove the four screws that secure the drive into the adapter, then slide
the drive out of the drive adapter.

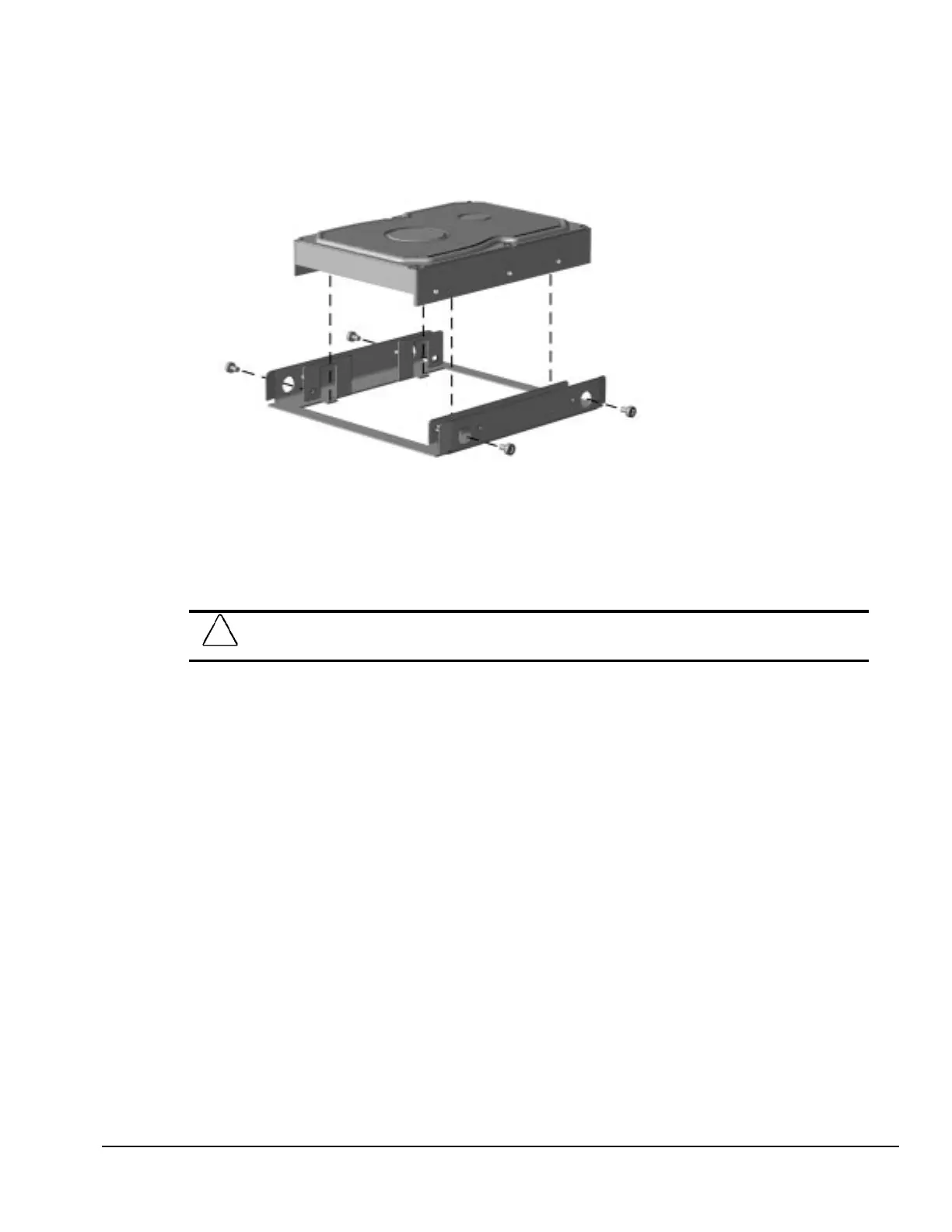

Removing the Hard Drive from the Drive Bay Adapter
To install a new hard drive, reverse the removal procedure. Extra screws are mounted on the front
of the chassis.
✎
Refer to Section 5.8 for proper power cable connections.
CAUTION:
When returning the drive cage to its normal position, use caution to prevent damaging the
data and power cables.
