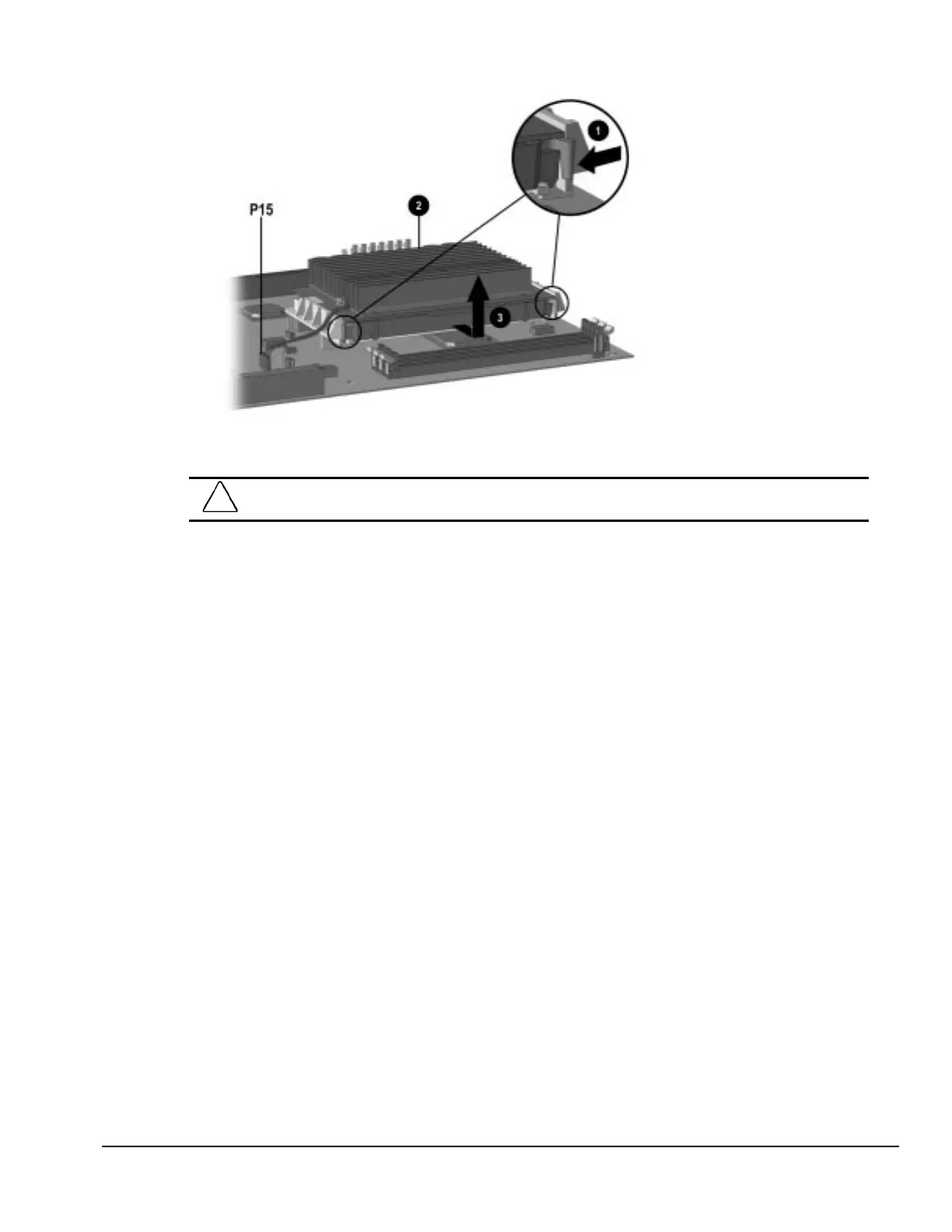

Compaq Deskpro EN Series of Personal Computers
5-31
Removing the Celeron Microprocessor
CAUTION:
Never remove the heat sink from the processor.
To replace the microprocessor, reverse the removal procedure.
✎
Before installing the microprocessor, pull the release tabs
1
out. Doing so will
cause the unit to make an audible snap when it seats in the socket.
