Compaq Deskpro EN Series of Personal Computers 6-13
6.8.3 3.5-Inch Drive Removal from 5.25-Inch Drive Adapter
1. Prepare the computer for disassembly (Section 6.3).
CAUTION:
When the computer is plugged into an AC power source, there is always voltage applied to the
system board. You must disconnect the power cord from the power source before opening the computer
to prevent system board or component damage.
2. Remove the access panel (Section 6.6).
3. Remove the front bezel (Section 6.7.1).
4. Remove the drive assembly from the drive bay (Section 6.8.2).
If this is a diskette drive, continue with step 5.
If this is a hard drive, continue with step 7.
5. If this is a diskette drive, remove the two screws on the left side that secure the drive in the
adapter.

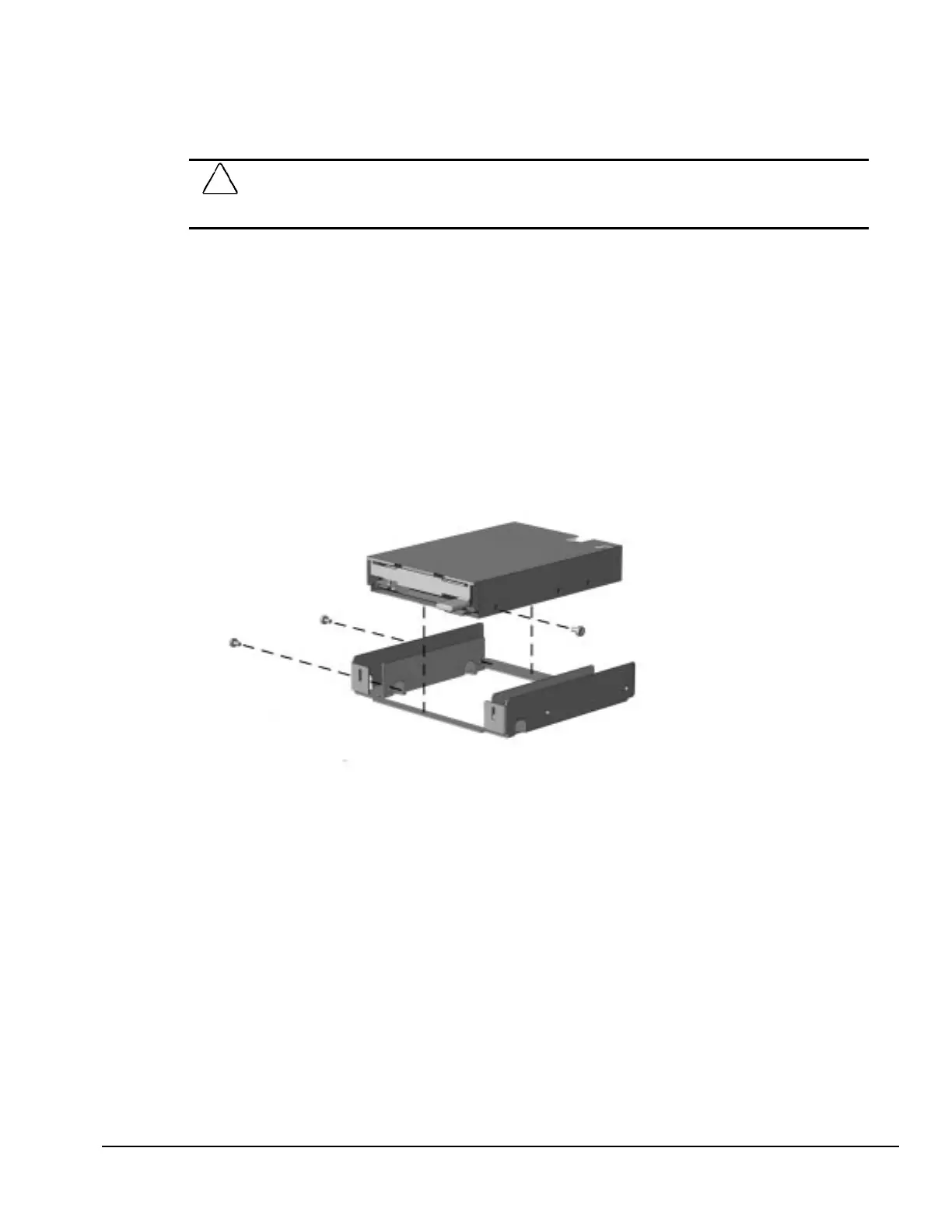

Removing the Diskette Drive from the Drive Bay Adapter
6. Slide the drive out of the drive adapter and remove the guide screw from the right side of the
drive.
To install a new diskette drive, reverse the removal procedure.
✎
When installing either a replacement or a second diskette drive, you must
configure the computer with Computer Setup to specify a drive size.
