Compaq Deskpro EN Series of Personal Computers 6-19
4. Disconnect the speaker cable from the front of the riser board at P6 and unhook the cable from
the top of the fan housing.

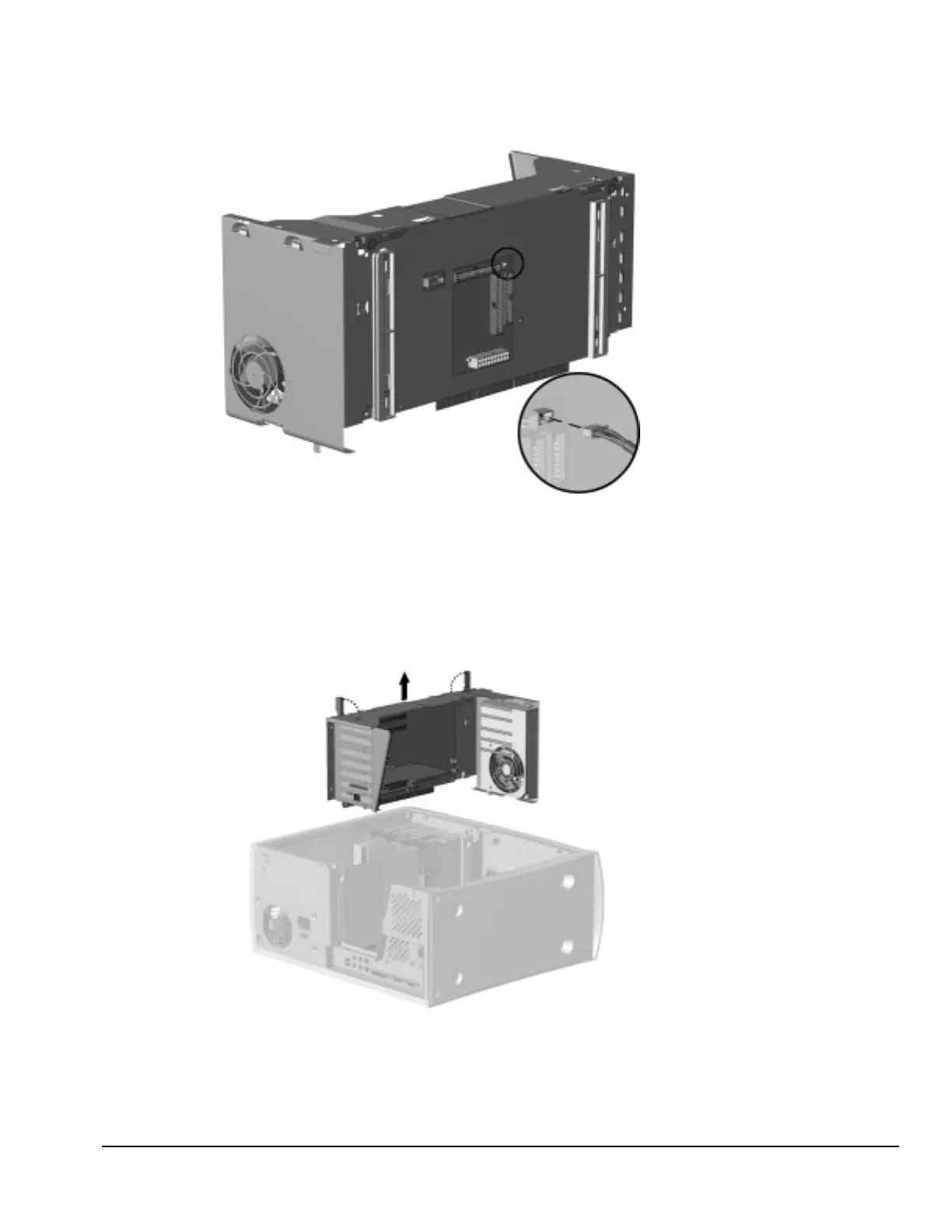

Disconnecting the Speaker Cable from the Front of the Riser Board
5. Disconnect and raise the expansion board cage by levering it out of the system board
(Section 6.10.1).
6. Pull the expansion board cage straight out of the chassis.
✎
It is not necessary to remove the expansion boards or the fan before removing this
assembly.
Removing the Expansion Board Cage
When reinstalling the expansion board cage, reverse the removal procedure.
