Compaq Deskpro EN Series of Personal Computers 6-31
6.13.3 ATI RAGE PRO TURBO AGP Graphics Memory Installation
It is not necessary to remove the graphics board to install the memory module.
The NVIDIA RIVA 128 3D multimedia graphics board does not accept a memory
module.
The spare ATI RAGE PRO TURBO AGP 1X board ships without a memory
module installed. The memory module removed from the board being replaced
should be installed in the new board before use.
1. Prepare the computer for disassembly (Section 6.3).
2. Remove the system unit cover (Section 6.6).
3. Lay the computer down on its side.
4. Disconnect and raise the expansion board cage (Section 6.10.1).
5. Pull the system board out of the chassis to get clear access to the graphics board.
6. Install the memory module at a 30 degree angle so that its notch aligns with the tab in the
socket 1, then pivot the module until it latches into position 2.

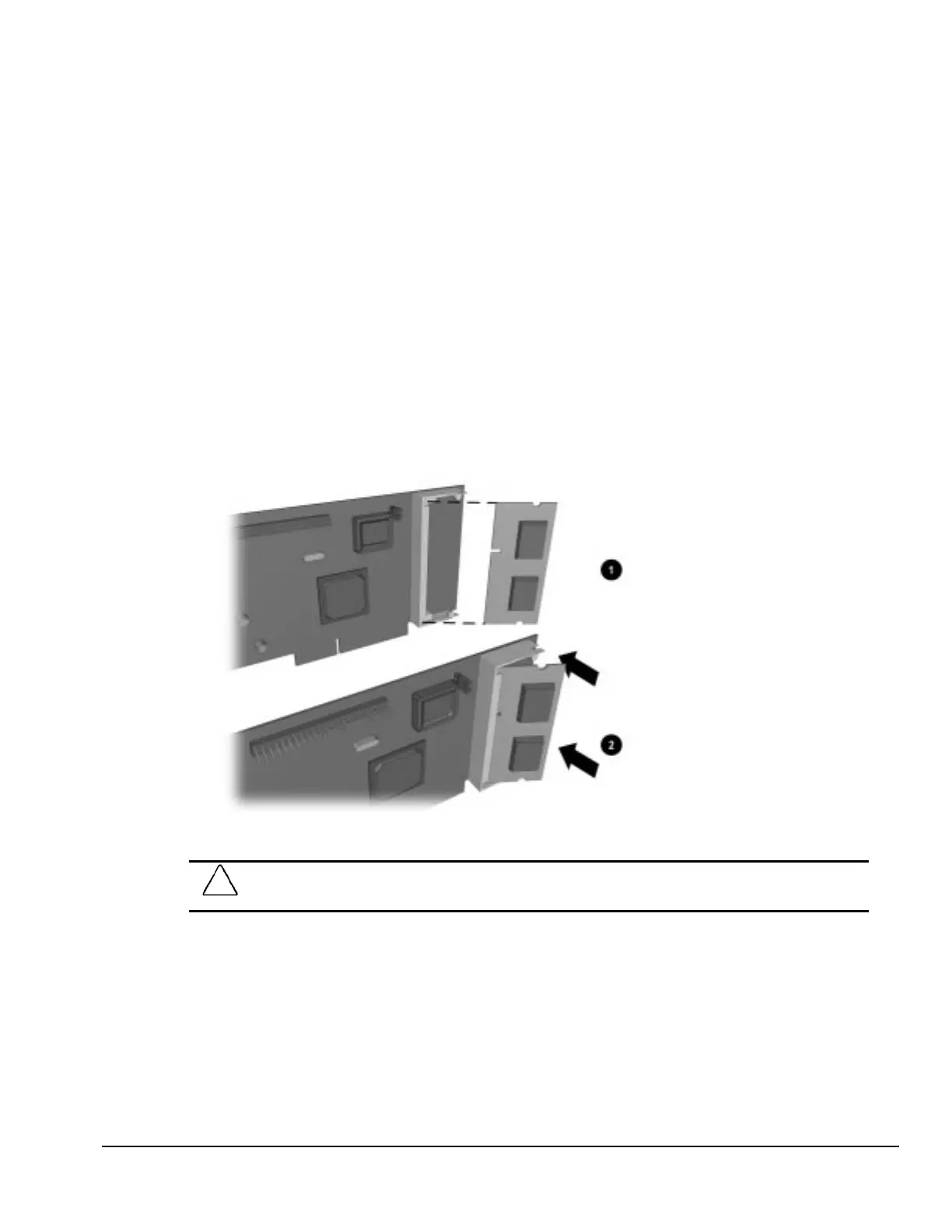

Installing the ATI RAGE PRO TURBO AGP Graphics Memory Upgrade
CAUTION:
Be sure to align the memory module before installation. Insert gently to prevent damage to the
module.
Be sure to remove the memory module when replacing the graphics board.
The resolution must be changed via the Control Panel to take advantage of the
additional display modes.
To remove the graphics memory module, release the retaining tabs before reversing the
installation procedure.
