Compaq Deskpro EN Series of Personal Computers A-3

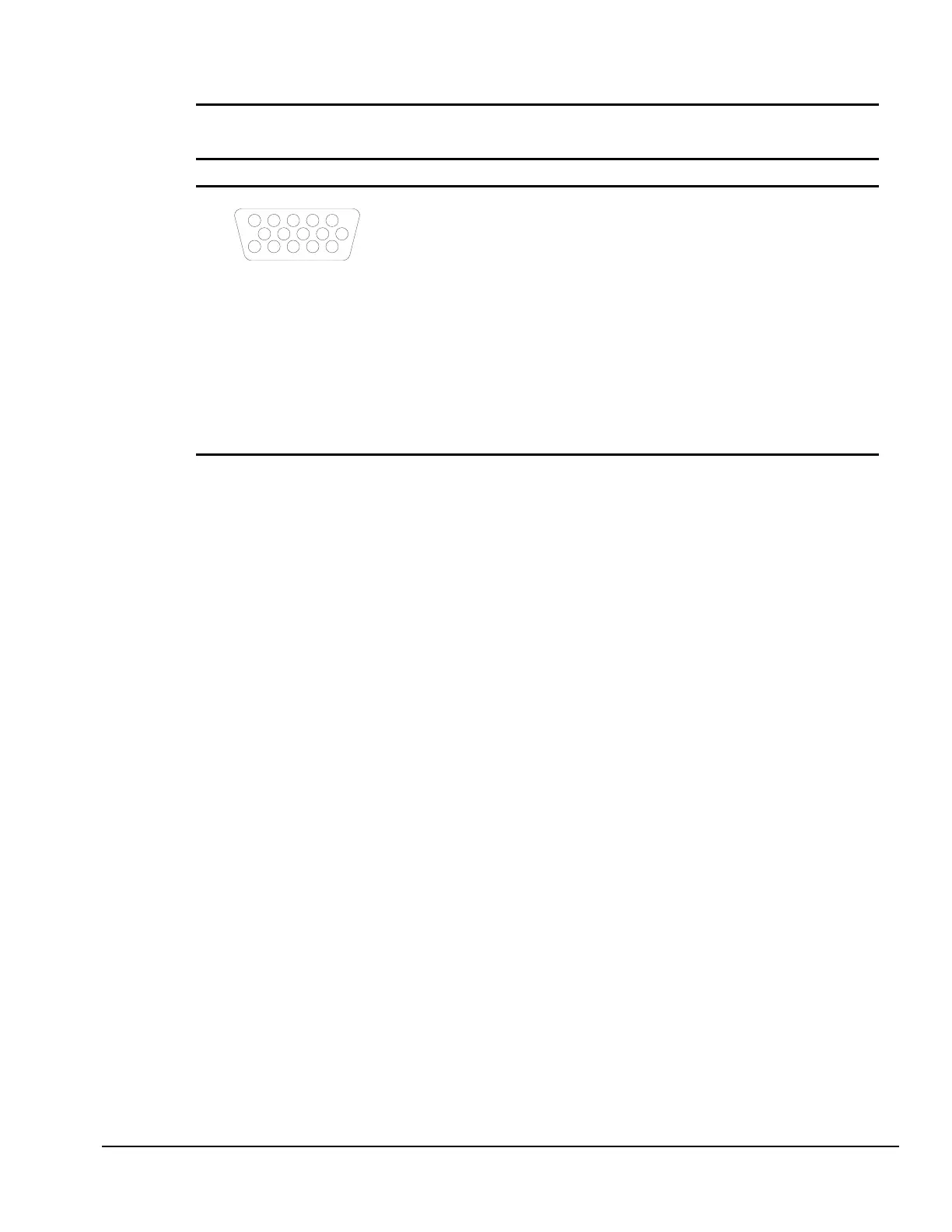

Table A-5
Monitor
Connector Pin Signal
54321
109876
15 14 13 12 11
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Red Analog
Green Analog
Blue Analog
Monitor ID Bit2
Ground Analog
Ground Red
Ground Green
Ground Blue
Fused +5 Volt Supply
Ground (syncs)
Monitor ID Bit 0
Bi-directional Data (SDA)*
Horizontal Sync
Vertical Sync
Data Clock (SCL)*
* For DDC support (I
2
C monitors)
