Compaq Deskpro EN Series - USB Connector; Ethernet RJ-45 Connector

A-6 Connector Pin Assignments

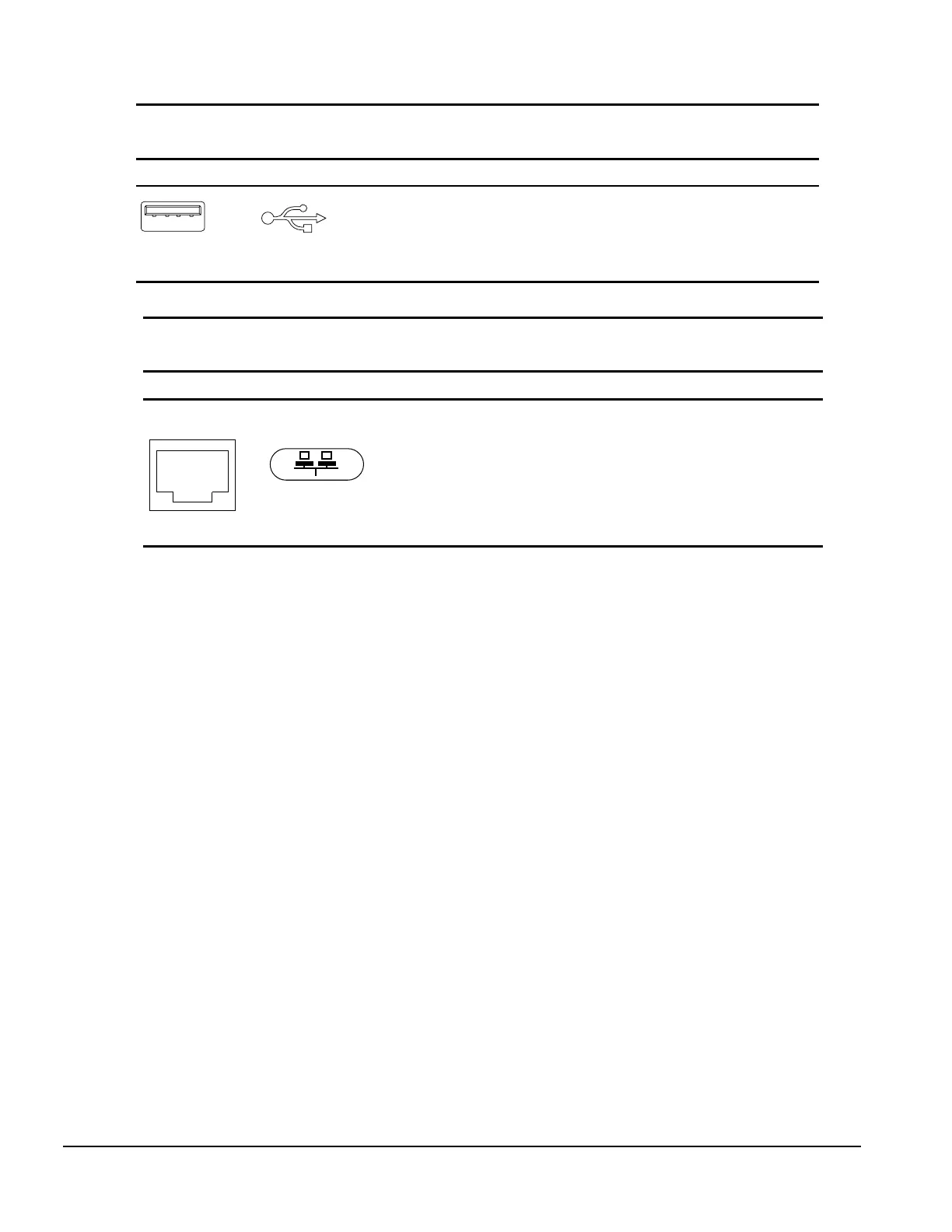

Table A-11
USB Connector
Connector and Icon Pin Signal
1234
1
2
3
4
VCC
- Data
+ Data
Ground
Table A-12
Ethernet RJ-45
Connector and Icon Pin Signal
1357
2468
1
2
3
4
5
6
7
8
(+) Transmit Data
(-) Transmit Data
(+) Receive Data
Unused
Unused
(-) Receive Data
Unused
Unused
