Cosmo LS-R700 User Manual

72 6 Setup
6

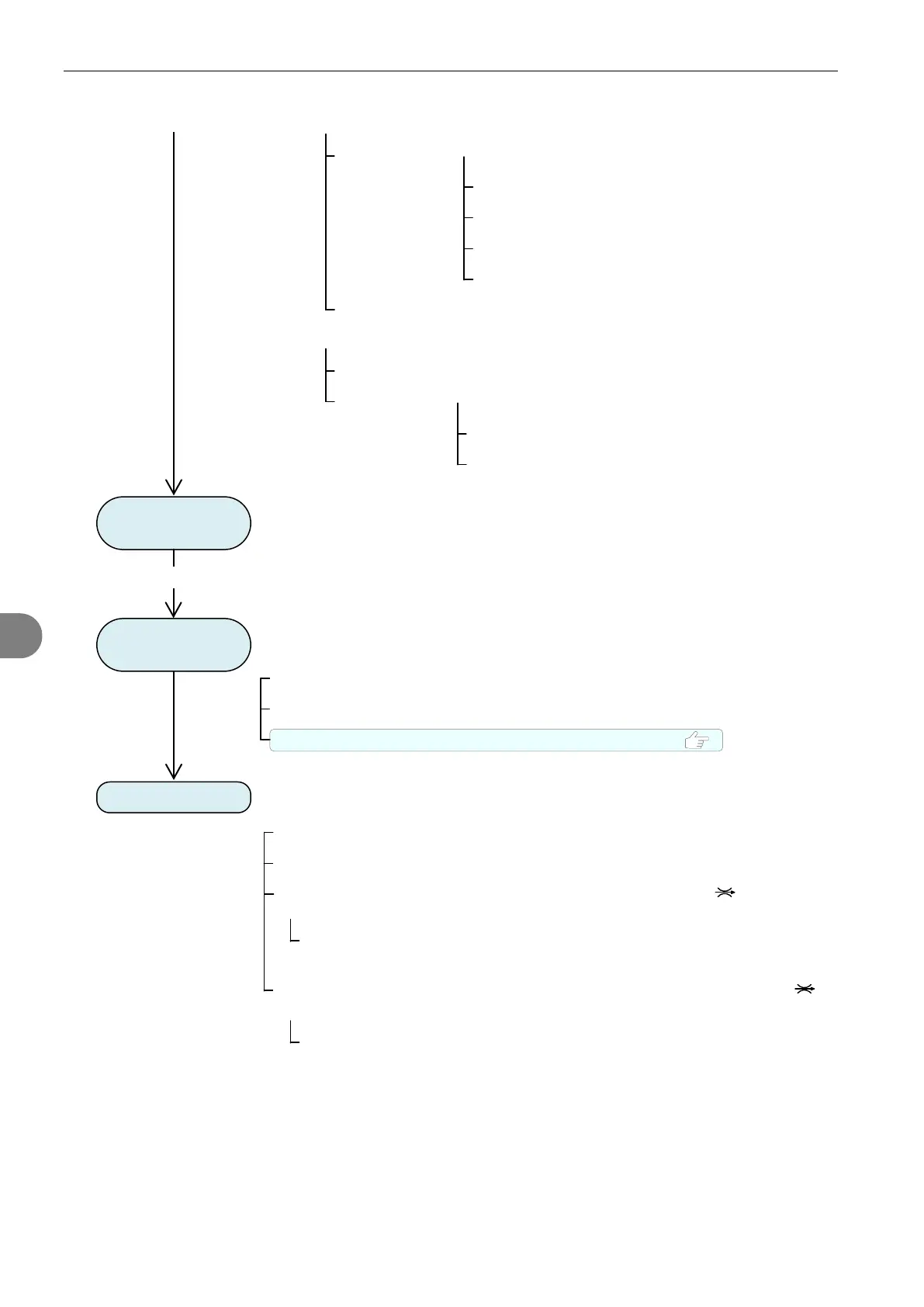

The followings should be done after the initial adjustment is completed:
1) Determining the optimal cycle time
2) Verifying relative consistency in test results.
3) Entering all the required test parameters
4) System backup
Connect the Leak Master for NG limit check to the CAL. PORT on the front
panel and perform a leak test to verify the NG readout in a flow unit.
Perform a leak te
st after disconnect the Leak Master from the CAL. PORT
and put back the plug.
K(Ve) Automatic
Setup
3. Check whether there are deformation factors.
Yes --- Check ---- If the clamp force is appropriate.
If the machine is leveled.
Hardness of sealing material
If there is a stopper
If the tested part itself deforms.
No --- Go to the next item to check.
4. Check the environmental factors.
Effect of Ventilation --- From local (spot) cooling equipment
Thermal Effect --- From sun light
From surrounding devices
Tested parts were wet. (Vaporization)
Fail Judgment
Check
Perform leak tests 2 times with the known defective parts.
Criterion for "Correct NG (fail) Judgment" --- The readouts are obviously different
from "Pass"
Correct Fail Judgment
Perform K(Ve) Automatic Setup with a non-leaking part to obtain the leak
coefficient, K(Ve)
Use the calibrator for K(Ve) Automatic Setup.
Use the current timers
Verifying K(Ve)
Check the repeatability by performing K(Ve) Automatic Setup more than 1 time.
Change the Leak unit to a flow unit.
Check whether the measured leak coefficient is correct.
The displayed readout is close to the labeled flow of the Leak Master, it can be
concluded that the obtained leak coefficient is correct.
Check displayed readout is obviously different from that of Fail.
Not Leaking
Refer to “
7
7 OPERATIONS LISTED BY PURPOSE” for the details.
