16 2 Installation
3
3
I
I
n
n
s
s
t
t
a
a
l
l
l
l
a
a
t
t
i
i
o
o
n
n
3.1 Environment of Leak Tester and Leak Test Stand
Location of Leak Tester to Avoid Temperature Fluctuation
• Avoid direct sunlight.
• Avoid direct wind due to doors opening and closing.
• Avoid direct wind from heating and cooling vents.
When above cannot be avoided, use a curtain. However, it’s not good to cover the whole test stand area
completely because of temperature fluctuations that could occur in the tested parts. Therefore, partial
covering will give better result.
Effects of Plant Temperature on Leak Testing
• Do not put the leak test station right after heating, cooling welding or washing processes.
• If the temperature of the floor and test bench are different, and the tested parts are taken from the floor,
heat transfer will take place between the parts and the fixture. This will cause an error. The tested
parts should be stored at the same level as the test bench in order to keep the temperature the same.

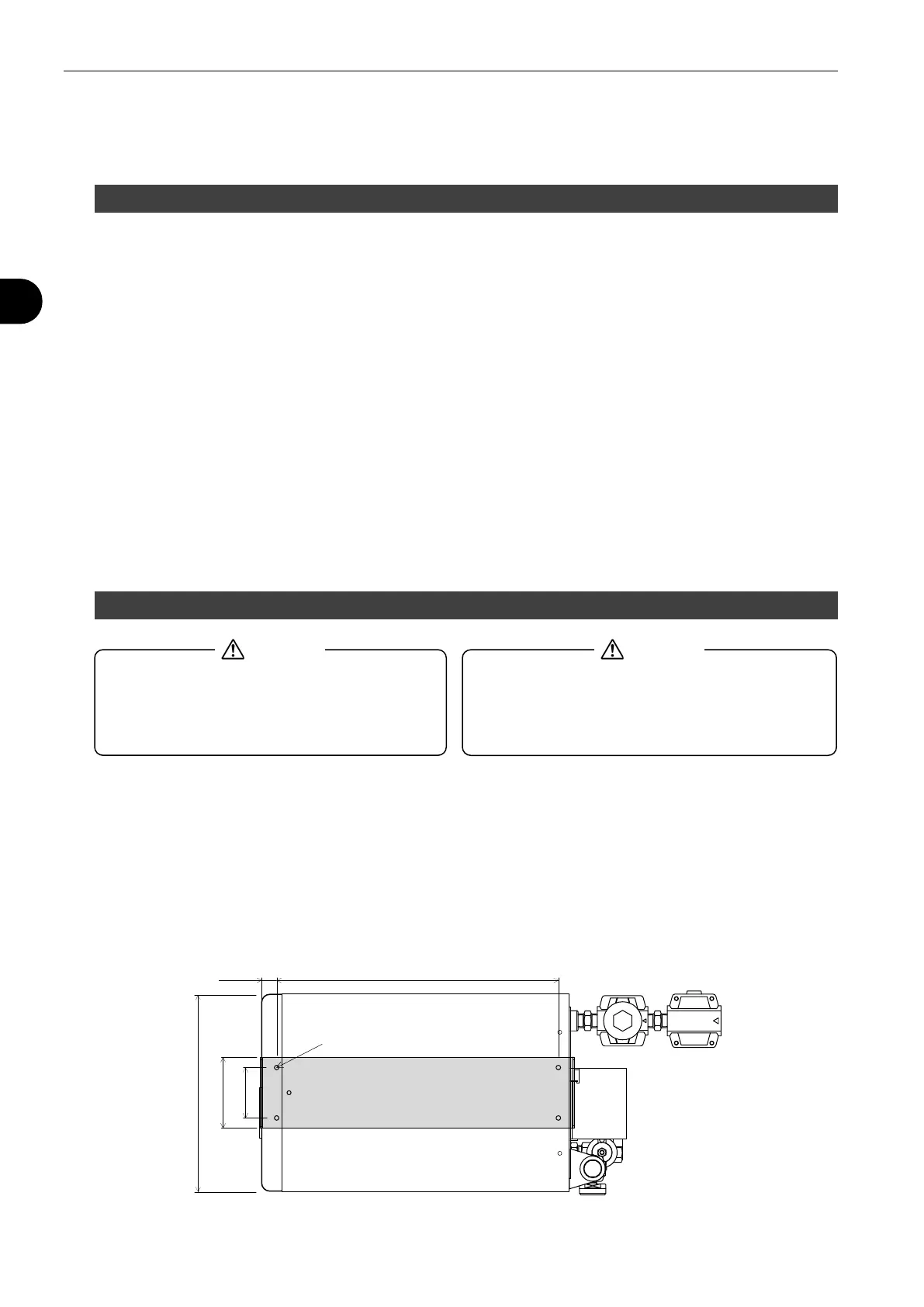

3.2 Installation of LS-R700 with Quick Mounting Brackets
LS-R700 comes with a mounting bracket that can be install/remove from the base with two screws.
Mounting Base
This base is loosely attached to the bottom of LS-R700. Remove it from the tester and mount it on the leak
test stand where LS-R700 is to be mounted with four M4 screws. The mounting surface has to be flat and
smooth.
Mount the mounting base on the test bench as shown below. M4 screws are not enclosed with LS-R700.
Hold its bottom to keep it from dropping when
transferring the product. Do not lift the product by
gripping its components on the rear panel such as
the stop valves.
Mount the product securely on a structure with enough
load capacity. Do not install the product on the insecure
foundation or in places with vibration to avoid overturns
and injuries.
Mounting Base
Top of LS-R700
50
70
17.8
275
195
Φ4.5 mounting holes (4)
Front
side
Rear
side
To Next Page
